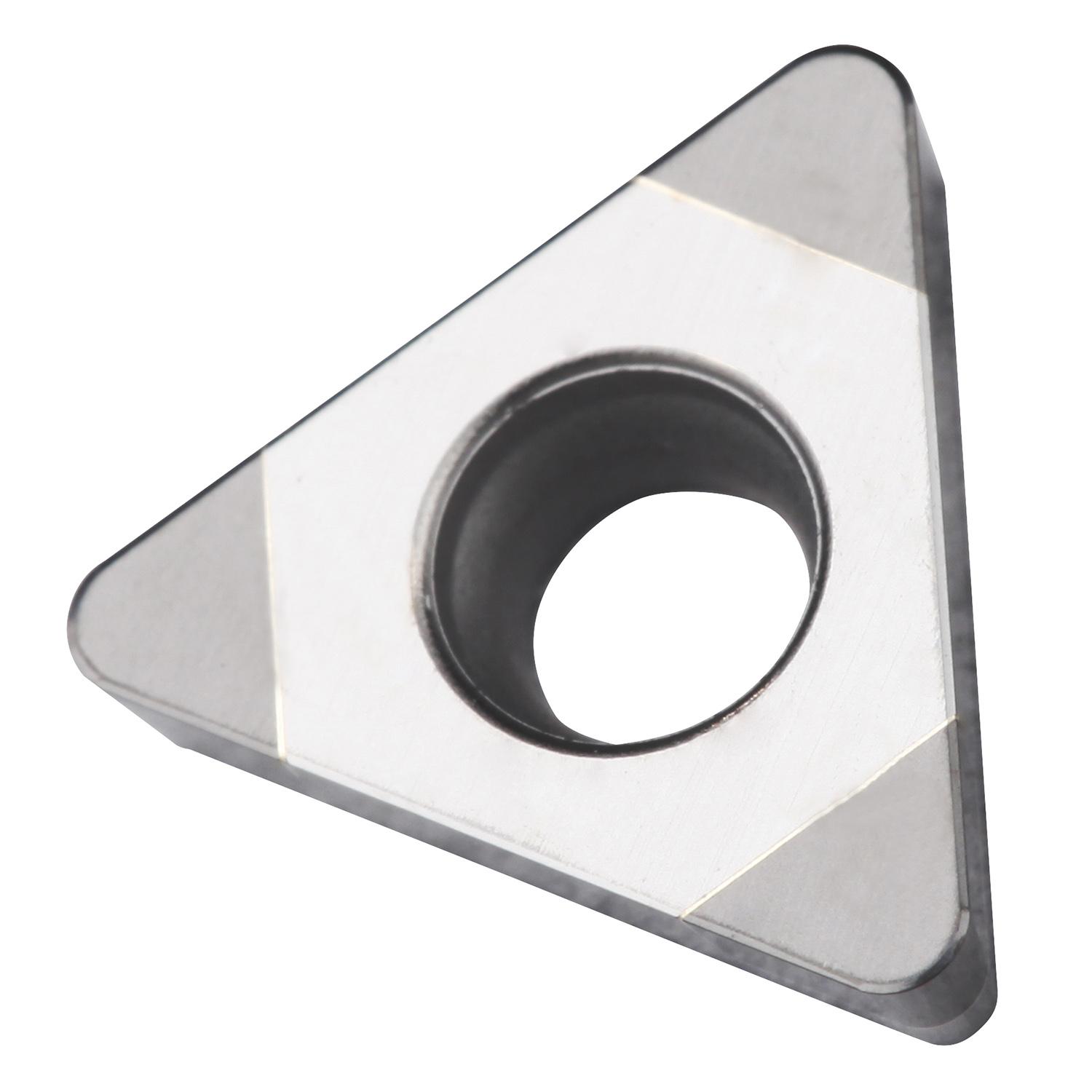

PRAMET TCGW 110208S01020C:TB310 Milling Insert with CBN and PCD

Description: Value
EAN number: 3603602912930
Product number (SAP): 80023138
Ordering code ANSI: TCGW 21.52S00420:TB310
Gross weight – grams: 8
Inscribed circle diameter – millimeter (IC): 6.35 mm
Fixing hole diameter – millimeter (D1): 2.9 mm
Cutting edge length – millimeter (L): 11 mm
Insert thickness – millimeter (S): 2.38 mm
Grade: TB310
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: TCGW
Insert size: 11
Insert Thickness: 02
Insert Type: W
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): T – triangular 60° included angle
Tool Design: TC
Insert Geometry: Positive
ISO: TCGW110208S01020C:TB310
