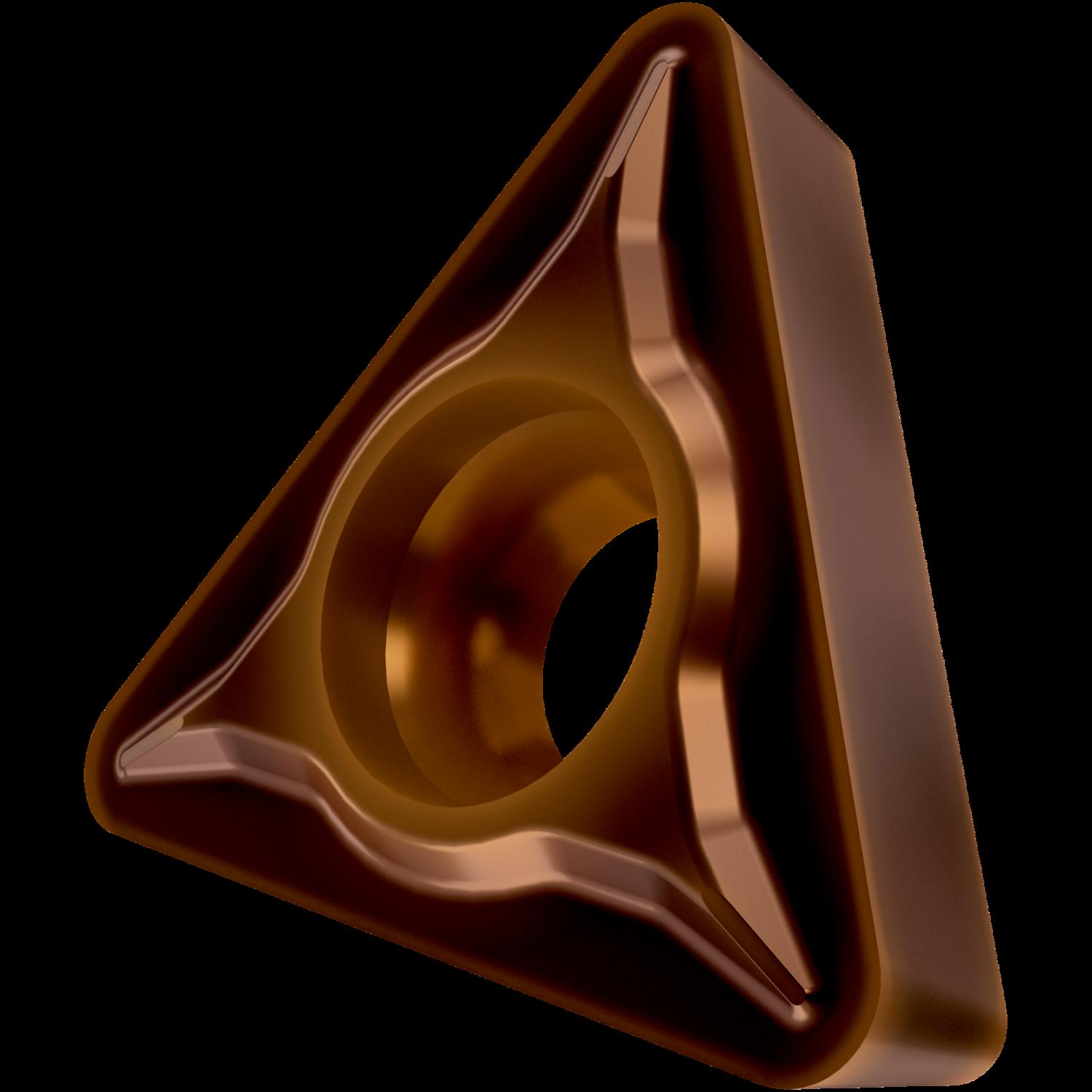

PRAMET TCMT 06T102E-FF2:T8430 Turning inserts positive

Description

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 3.97mm, 1.98mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FF2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to medium machining of steels

Additional information

Weight	0.0147 kg
barcode
Additional Information	Description: Value EAN number: 3603603818613 Product number (SAP): 80033083 Ordering code ANSI: TCMT 1.21.20.5-FF2:T8430 Gross weight – grams: 0.394 Inscribed circle diameter – millimeter (IC): 3.97 mm Fixing hole diameter – millimeter (D1): 2.2 mm Cutting edge length – millimeter (L): 6.9 mm Insert thickness – millimeter (S): 1.98 mm Grade: T8430 Corner radius – millimeter (RE): 0.2 mm Insert Clearance Code and Angle: C 7° Insert Design: TCMT Insert size: 06 Insert Thickness: T1 Insert Type: T Chipbreaker manufacturer's designation (CBMD): FF2 Insert shape code (SC): T – triangular 60° included angle Tool Design: TC Insert Geometry: Positive ISO: TCMT06T102E-FF2:T8430

Need Technical Advice?

Description

Additional information

Brand

PRAMET
