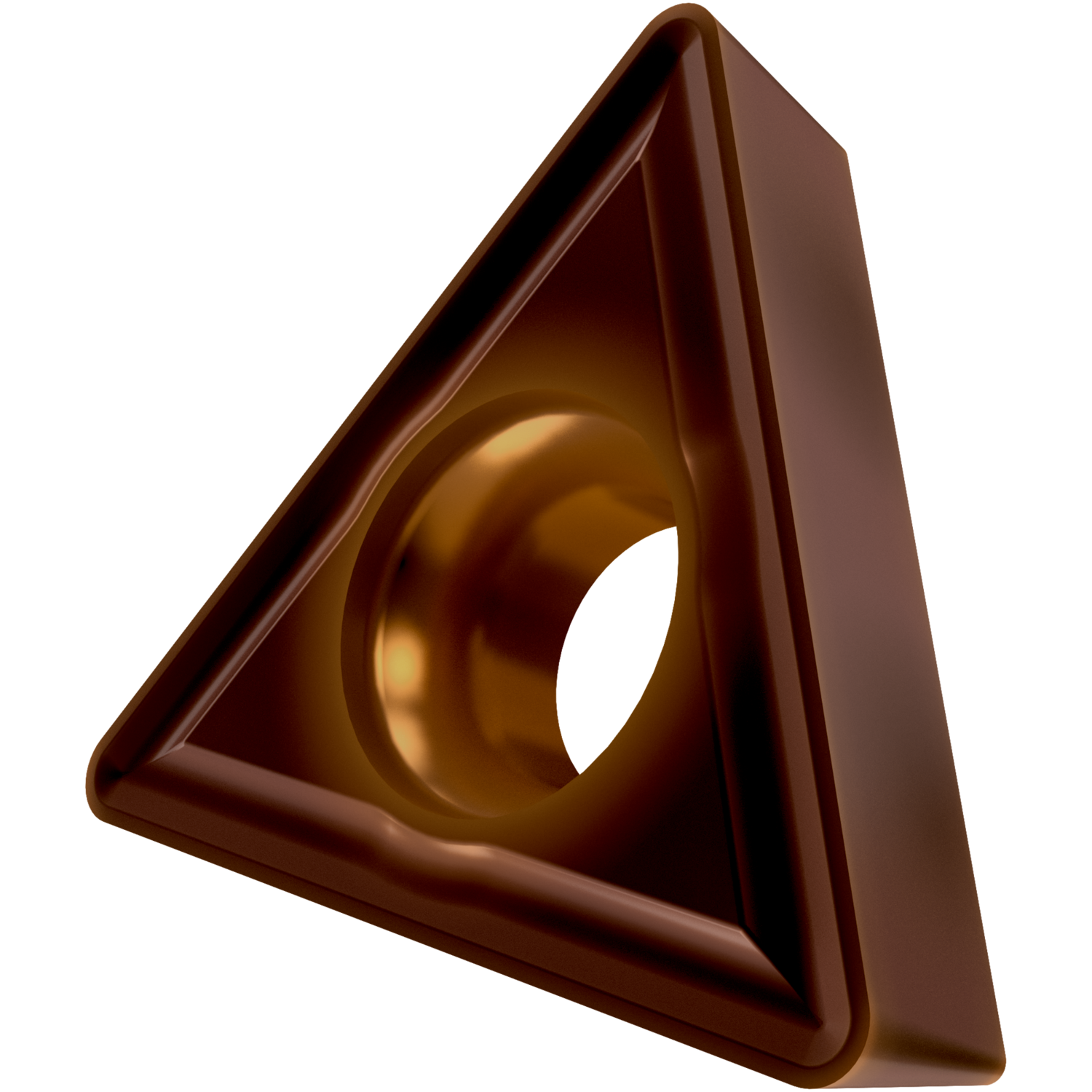

PRAMET TCMT 16T304E-RM3:T8415 Turning inserts positive

Description: Value
EAN number: 3603604269841
Product number (SAP): 80036425
Ordering code ANSI: TCMT 32.51-RM3:T8415
Gross weight – grams: 6.1
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 16.5 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: T8415
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: TCMT
Insert size: 16
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): RM3
Insert shape code (SC): T – triangular 60° included angle
Tool Design: TC
Insert Geometry: Positive
ISO: TCMT16T304E-RM3:T8415
