PRAMET TCMT 16T308-UR:T9020 Focus Products

Product Code: TCMT 16T308-UR:T9020

$14.05$12.77 Ex. GST

Product Code: TCMT 16T308-UR:T9020 SKU TCMT 16T308-UR:T9020 Categories CUTTING TOOLS (HSS & Carbide), Turning

PRAMET TCMT 16T308-UR:T9020 Focus Products

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

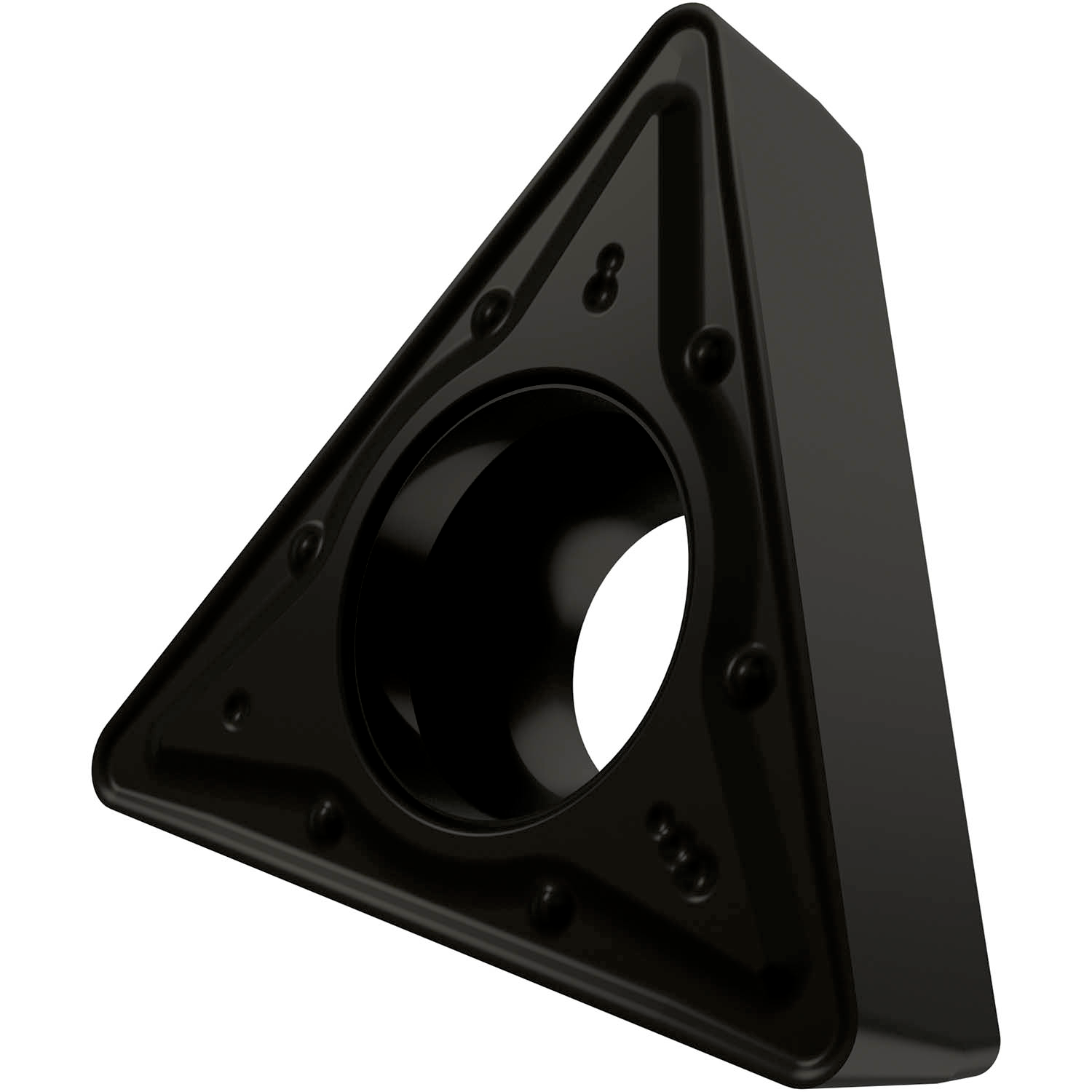

Single-sided positive turning insert, triangular with 7° clearance, with an indexing accuracy according to ISO-tolerance class-M, with rounded cutting edges.

Additional information

Weight	0.0046 kg
barcode	3603604146234
Additional Information	Description: Value EAN number: 3603604146234 Product number (SAP): 80035779 Ordering code ANSI: TCMT 32.52-UR:T9020 Gross weight – grams: 4.632 Inscribed circle diameter – millimeter (IC): 9.525 mm Fixing hole diameter – millimeter (D1): 4.4 mm Cutting edge length – millimeter (L): 16.5 mm Insert thickness – millimeter (S): 3.97 mm Grade: T9020 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: C 7° Insert Design: TCMT Insert Type: T Chipbreaker manufacturer's designation (CBMD): UR Insert shape code (SC): T – triangular 60° included angle Tool Design: TC Insert Geometry: Positive ISO: TCMT16T308-UR:T9020
