PRAMET TN 11NL100M:T8030 Turning inserts for threading and grooving inserts T -ZZ

Description

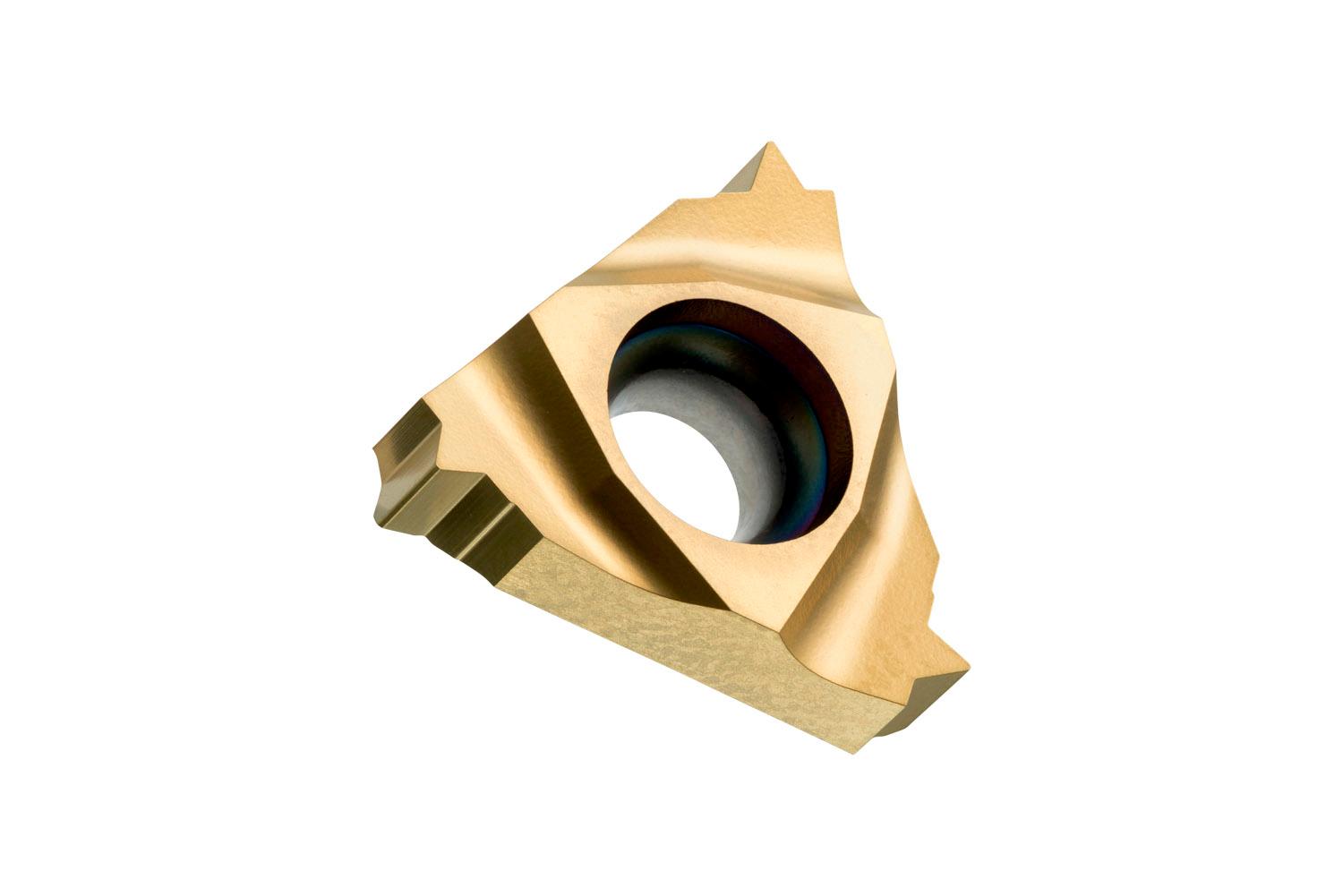

Single-sided threading insert, triangular with an inscribed circle diameter of 6.35mm, for left hand cutting of ISO-metric internal threads with 1mm pitch, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron

Additional information

Weight	0.0403 kg
barcode
Additional Information	Description: Value EAN number: 3603602907363 Product number (SAP): 80017886 Ordering code ANSI: TN 11NL100M:T8030 Gross weight – grams: 1.68 Inscribed circle diameter – millimeter (IC): 6.35 mm Cutting edge length – millimeter (L): 11 mm Insert thickness – millimeter (S): 3 mm Grade: T8030 Thread pitch – millimeter (TP): 1 mm Profile distance ex – millimeter (PDX): 0.8 mm Profile distance ey – millimeter (PDY): 0.8 mm Insert Design: TN M INT Insert size: 11 Thread type (TTP): internal Thread Form Type Code: M ISO: TN11NL100M:T8030

PRAMET TN 11NL100M:T8030 Turning inserts for threading and grooving inserts T -ZZ

Need Technical Advice?

Description

Additional information

Brand

PRAMET
