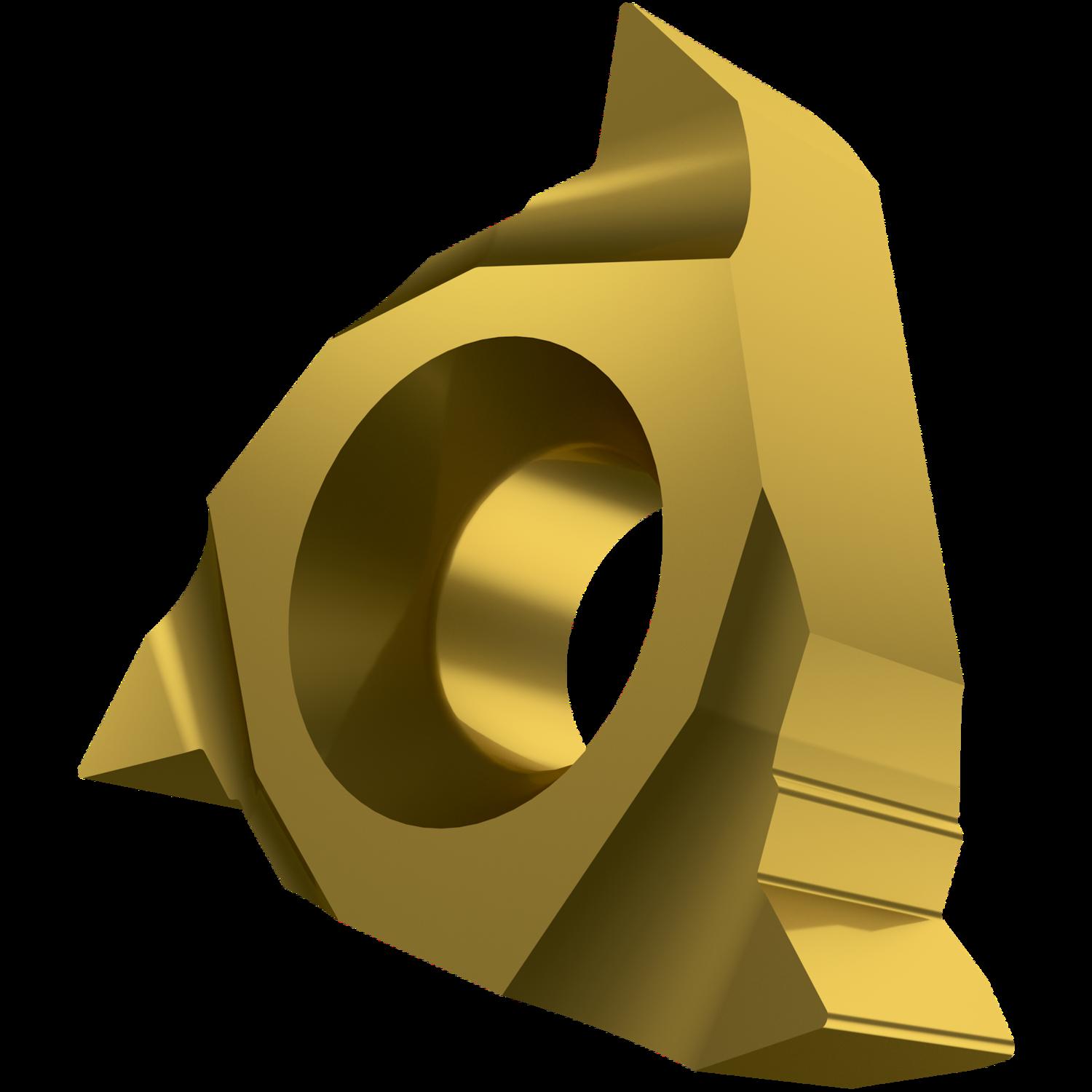

PRAMET TN 11NRA60:T8030 Turning inserts for threading and grooving inserts T -ZZ

Description: Value
EAN number: 3603602908797
Product number (SAP): 80022270
Ordering code ANSI: TN 11NRA60:T8030
Gross weight – grams: 1.591
Inscribed circle diameter – millimeter (IC): 6.35 mm
Cutting edge length – millimeter (L): 11 mm
Insert thickness – millimeter (S): 3 mm
Grade: T8030
Thread pitch minimum – millimeter (TPN): 0.5 mm
Thread pitch maximum – millimeter (TPX): 1.5 mm
Threads per inch – minimum: 16
Threads per inch – maximum: 48
Profile distance ex – millimeter (PDX): 0.8 mm
Profile distance ey – millimeter (PDY): 0.7 mm
Insert Design: TN 60° PP INT
Insert size: 11
Thread type (TTP): internal
Thread Form Type Code: 60° PP
ISO: TN11NRA60:T8030
