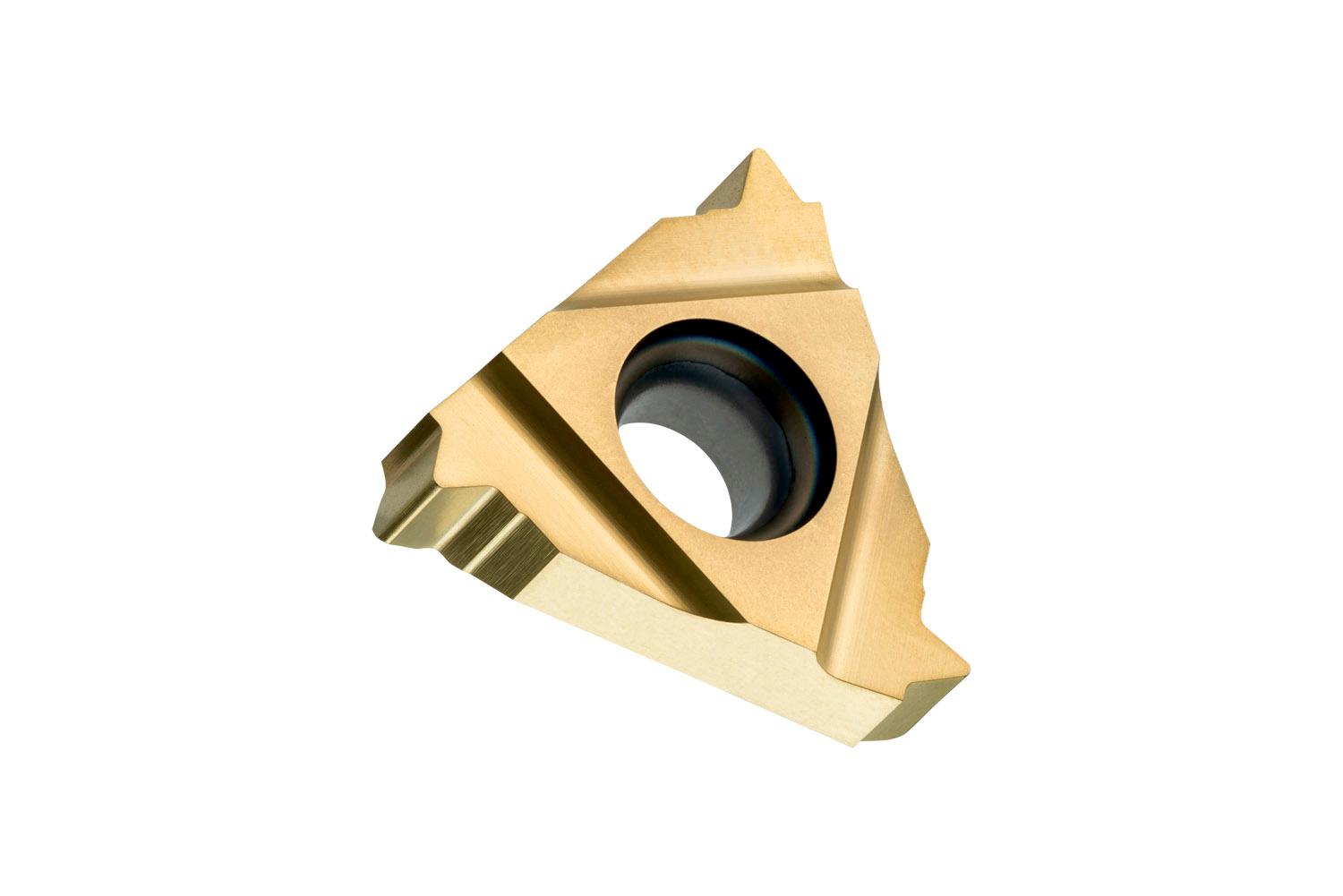

PRAMET TN 16EL080W:T8030 Turning inserts for threading and grooving inserts T -ZZ

Description: Value
EAN number: 3603602905864
Product number (SAP): 80017736
Ordering code ANSI: TN 16EL080W:T8030
Gross weight – grams: 3.971
Inscribed circle diameter – millimeter (IC): 9.525 mm
Cutting edge length – millimeter (L): 16.5 mm
Insert thickness – millimeter (S): 3.47 mm
Grade: T8030
Threads per inch (TPI): 8
Profile distance ex – millimeter (PDX): 1.5 mm
Profile distance ey – millimeter (PDY): 1.2 mm
Insert Design: TN W EXT
Insert size: 16
Thread type (TTP): external
Thread Form Type Code: W
ISO: TN16EL080W:T8030
