PRAMET TN 16EL100M:T8030 Turning inserts for threading and grooving inserts T -ZZ

Product Code: TN 16EL100M:T8030

$42.15$38.32 Ex. GST

Product Code: TN 16EL100M:T8030 SKU TN 16EL100M:T8030 Categories , ,
PRAMET TN 16EL100M:T8030 Turning inserts for threading and grooving inserts T -ZZ

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

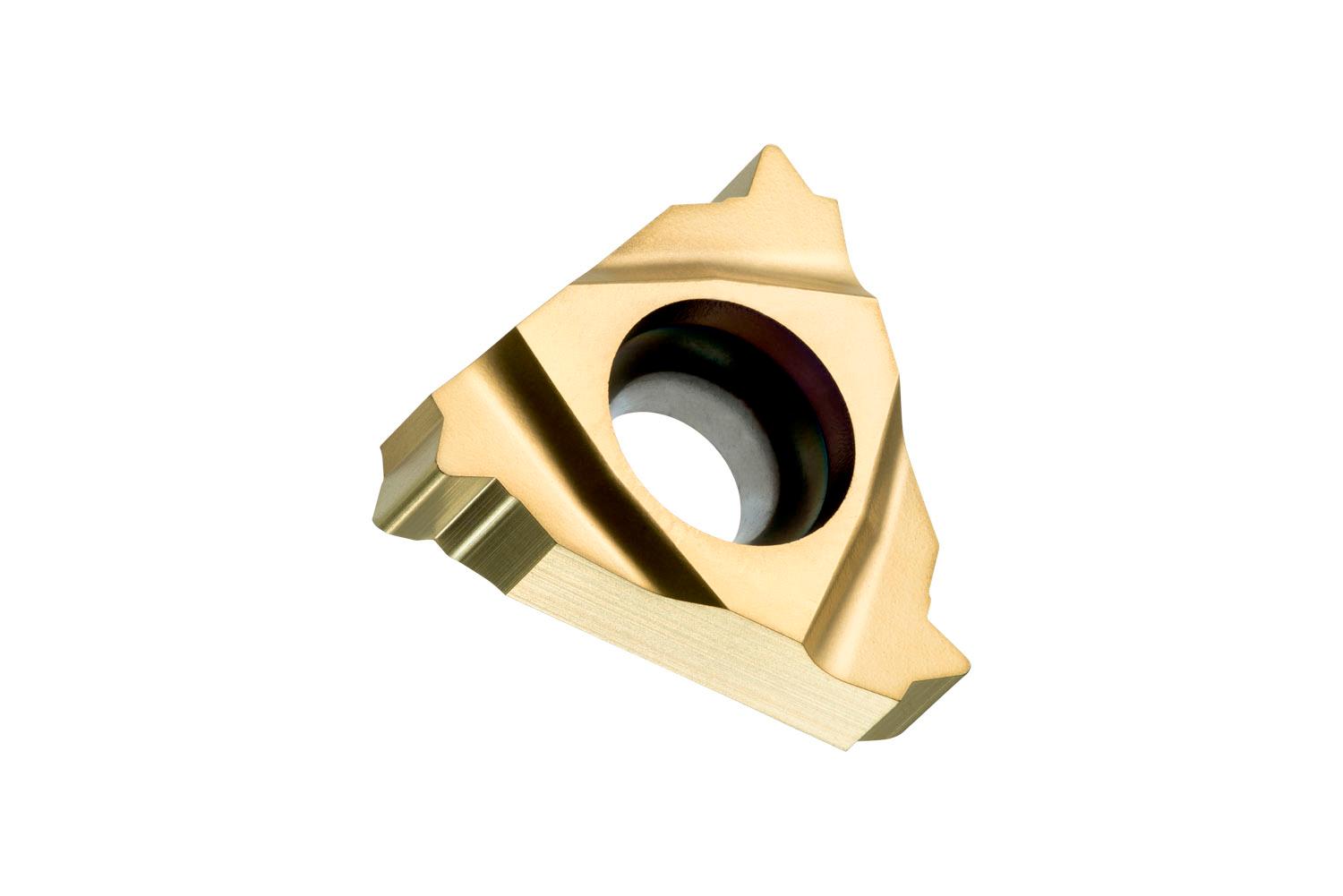

Single-sided threading insert, triangular with an inscribed circle diameter of 9.525mm, for left hand cutting of ISO-metric external threads with 1mm pitch, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron

Additional information

Weight 0.0409 kg
barcode
Additional Information

Description: Value
EAN number: 3603602905642
Product number (SAP): 80017714
Ordering code ANSI: TN 16EL100M:T8030
Gross weight – grams: 4.632
Inscribed circle diameter – millimeter (IC): 9.525 mm
Cutting edge length – millimeter (L): 16.5 mm
Insert thickness – millimeter (S): 3.47 mm
Grade: T8030
Thread pitch – millimeter (TP): 1 mm
Profile distance ex – millimeter (PDX): 0.8 mm
Profile distance ey – millimeter (PDY): 0.8 mm
Insert Design: TN M EXT
Insert size: 16
Thread type (TTP): external
Thread Form Type Code: M
ISO: TN16EL100M:T8030

Brand

PRAMET
