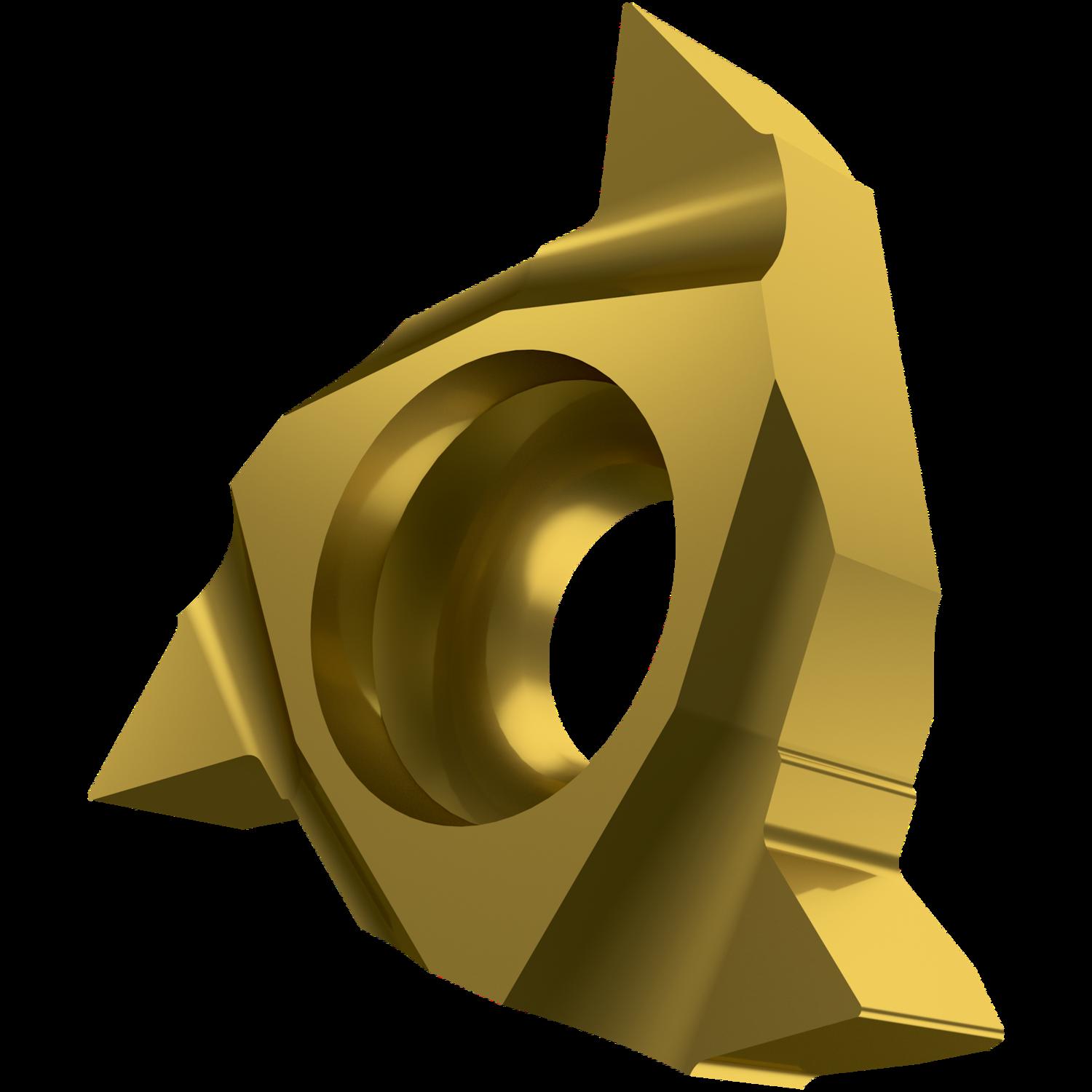

PRAMET TN 16NRAG55:T8010 Turning inserts for threading and grooving inserts T -ZZ

Description: Value
EAN number: 3603603496347
Product number (SAP): 80030886
Ordering code ANSI: TN 16NRAG55:T8010
Gross weight – grams: 3.676
Inscribed circle diameter – millimeter (IC): 9.525 mm
Cutting edge length – millimeter (L): 16.5 mm
Insert thickness – millimeter (S): 3.47 mm
Grade: T8010
Thread pitch minimum – millimeter (TPN): 0.5 mm
Thread pitch maximum – millimeter (TPX): 3 mm
Threads per inch – minimum: 8
Threads per inch – maximum: 48
Profile distance ex – millimeter (PDX): 1.5 mm
Profile distance ey – millimeter (PDY): 1.1 mm
Insert Design: TN 55° PP INT
Insert size: 16
Thread type (TTP): internal
Thread Form Type Code: 55° PP
ISO: TN16NRAG55:T8010
