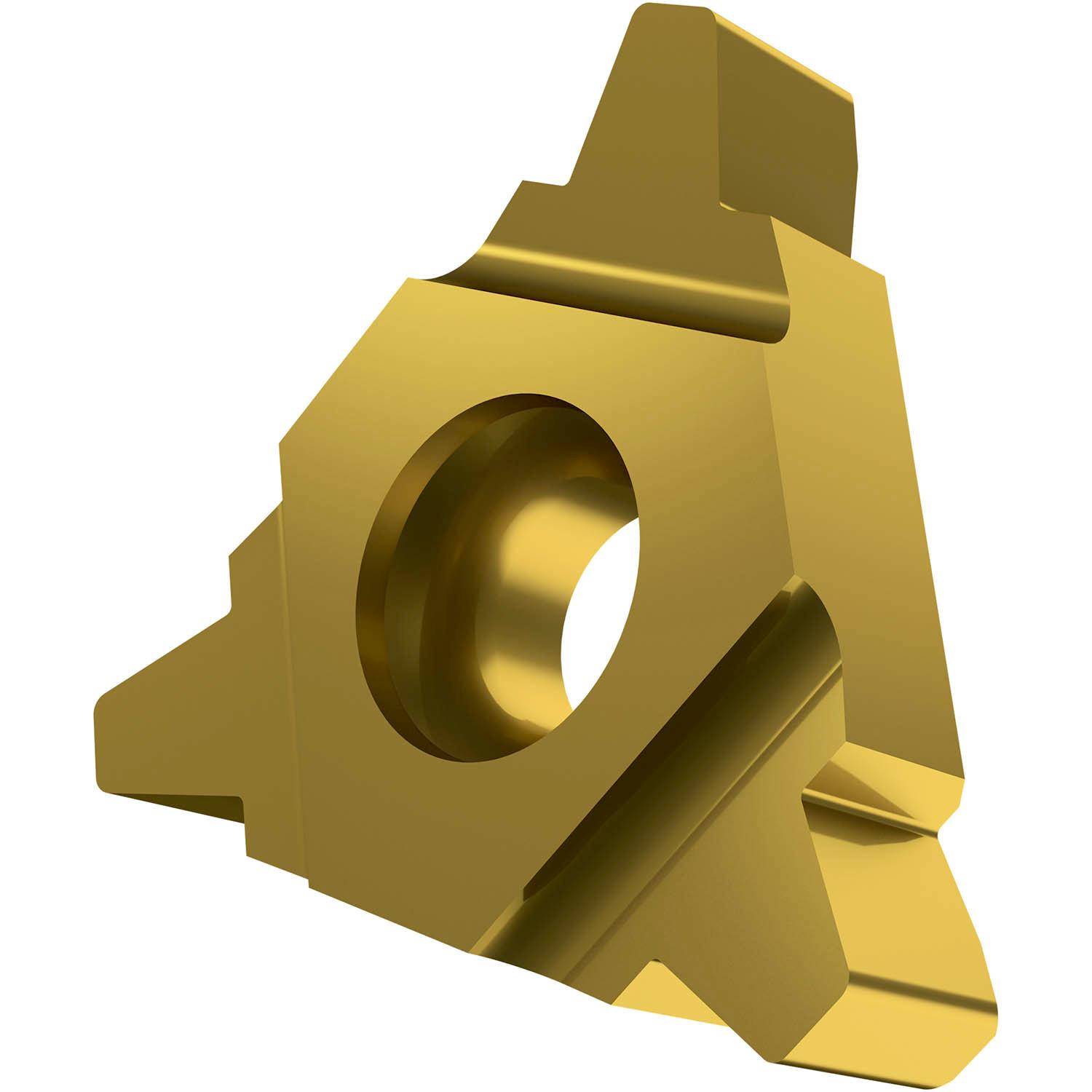

PRAMET TN 22EN600TR:T8030 Turning inserts for threading and grooving inserts T -ZZ

Description

Single-sided threading insert, triangular with an inscribed circle diameter of 12.7mm, for right and left hand cutting of Trapezoidal TR external threads with 6mm pitch, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron in combination with a SE(RL)-S thread turning tool

Additional information

Weight	0.0726 kg
barcode
Additional Information	Description: Value EAN number: 3603602907547 Product number (SAP): 80017904 Ordering code ANSI: TN 22EN600TR:T8030 Gross weight – grams: 10.794 Inscribed circle diameter – millimeter (IC): 12.7 mm Cutting edge length – millimeter (L): 22 mm Insert thickness – millimeter (S): 4.6 mm Grade: T8030 Thread pitch – millimeter (TP): 6 mm Profile distance ex – millimeter (PDX): 11 mm Profile distance ey – millimeter (PDY): 1.9 mm Insert Design: TN TR-S EXT Insert size: 22 Thread type (TTP): external Thread Form Type Code: TR-S ISO: TN22EN600TR:T8030

PRAMET TN 22EN600TR:T8030 Turning inserts for threading and grooving inserts T -ZZ

Need Technical Advice?

Description

Additional information

Brand

PRAMET
