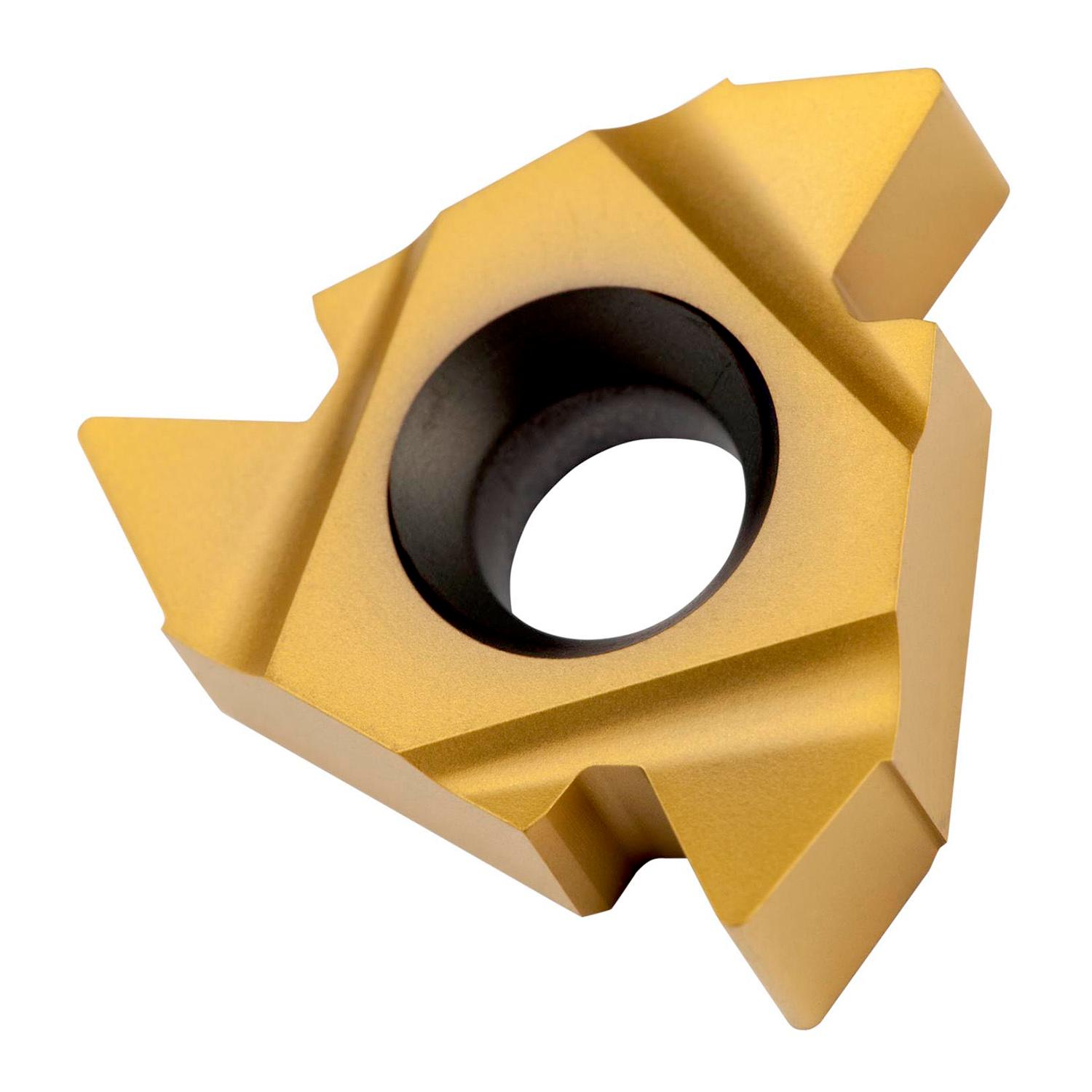

PRAMET TN 22ERN60:T8030 Turning inserts for threading and grooving inserts T -ZZ

Description: Value
EAN number: 3603602908773
Product number (SAP): 80022268
Ordering code ANSI: TN 22ERN60:T8030
Gross weight – grams: 14.26
Inscribed circle diameter – millimeter (IC): 12.7 mm
Cutting edge length – millimeter (L): 22 mm
Insert thickness – millimeter (S): 4.71 mm
Grade: T8030
Thread pitch minimum – millimeter (TPN): 3.5 mm
Thread pitch maximum – millimeter (TPX): 5 mm
Threads per inch – minimum: 5
Threads per inch – maximum: 7
Profile distance ex – millimeter (PDX): 2.5 mm
Profile distance ey – millimeter (PDY): 1.8 mm
Insert Design: TN 60° PP EXT
Insert size: 22
Thread type (TTP): external
Thread Form Type Code: 60° PP
ISO: TN22ERN60:T8030
