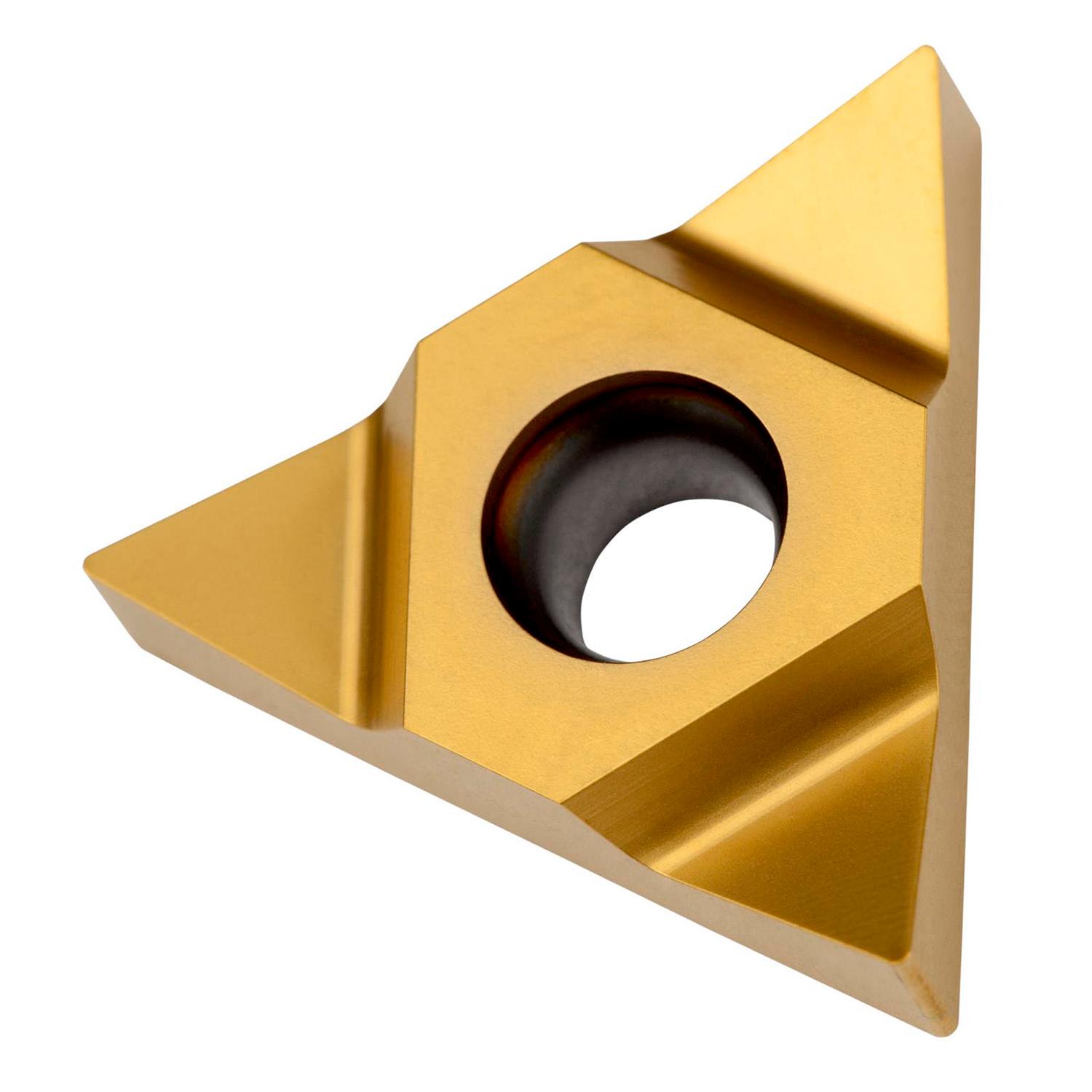

PRAMET TN 22NN350-500M:T8030 Turning inserts for threading and grooving inserts T -ZZ

Description: Value
EAN number: 3603602910257
Product number (SAP): 80022551
Ordering code ANSI: TN 22NN350-500M:T8030
Gross weight – grams: 10.987
Inscribed circle diameter – millimeter (IC): 12.7 mm
Cutting edge length – millimeter (L): 22 mm
Insert thickness – millimeter (S): 4.6 mm
Grade: T8030
Thread pitch minimum – millimeter (TPN): 3.5 mm
Thread pitch maximum – millimeter (TPX): 5 mm
Threads per inch – minimum: 5
Threads per inch – maximum: 7
Profile distance ex – millimeter (PDX): 11 mm
Profile distance ey – millimeter (PDY): 0.2 mm
Insert Design: TN 60°-S PP INT
Insert size: 22
Thread type (TTP): internal
Thread Form Type Code: 60°-S PP
ISO: TN22NN350-500M:T8030
