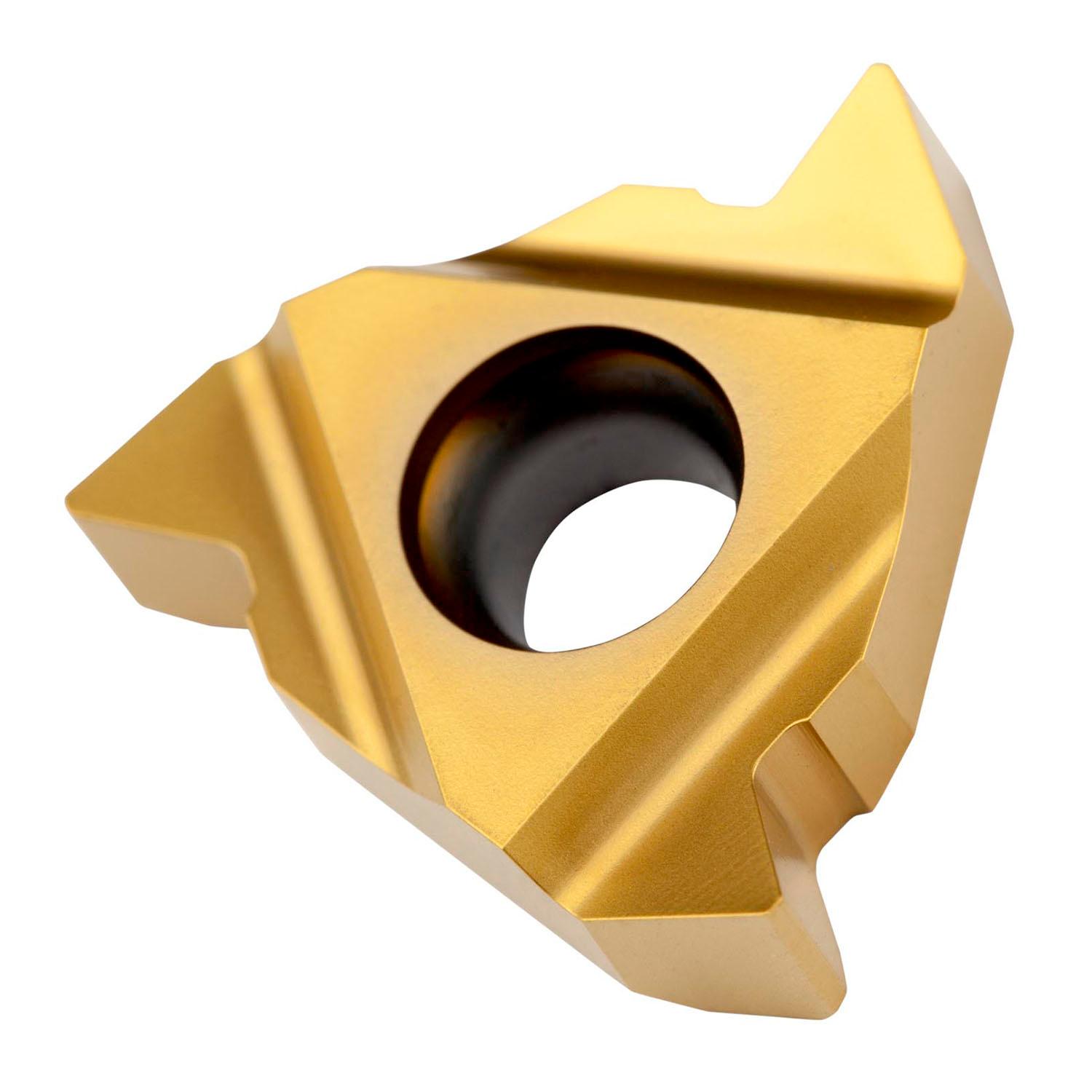

PRAMET TN 22NR050UN:T8030 Turning inserts for threading and grooving inserts T -ZZ

Description: Value
EAN number: 3603602906908
Product number (SAP): 80017840
Ordering code ANSI: TN 22NR050UN:T8030
Gross weight – grams: 9.132
Inscribed circle diameter – millimeter (IC): 12.7 mm
Cutting edge length – millimeter (L): 22 mm
Insert thickness – millimeter (S): 4.71 mm
Grade: T8030
Threads per inch (TPI): 5
Profile distance ex – millimeter (PDX): 2.5 mm
Profile distance ey – millimeter (PDY): 1.8 mm
Insert Design: TN UN INT
Insert size: 22
Thread type (TTP): internal
Thread Form Type Code: UN
ISO: TN22NR050UN:T8030
