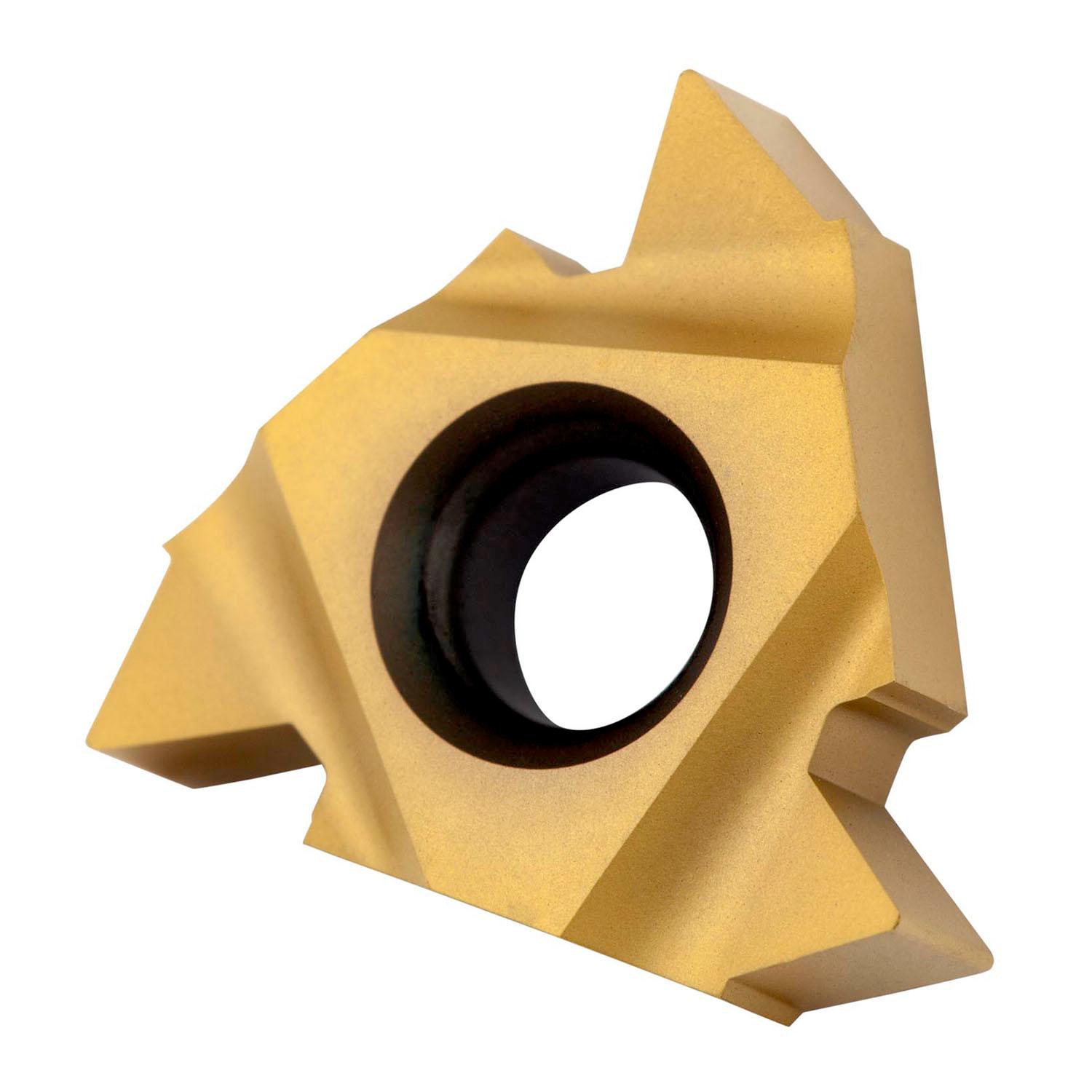

PRAMET TN 22NRN60:T8010 Turning inserts for threading and grooving inserts T -ZZ

Description: Value
EAN number: 3603603496453
Product number (SAP): 80030897
Ordering code ANSI: TN 22NRN60:T8010
Gross weight – grams: 9.283
Inscribed circle diameter – millimeter (IC): 12.7 mm
Cutting edge length – millimeter (L): 22 mm
Insert thickness – millimeter (S): 4.71 mm
Grade: T8010
Thread pitch minimum – millimeter (TPN): 3.5 mm
Thread pitch maximum – millimeter (TPX): 5 mm
Threads per inch – minimum: 5
Threads per inch – maximum: 7
Profile distance ex – millimeter (PDX): 2.5 mm
Profile distance ey – millimeter (PDY): 1.8 mm
Insert Design: TN 60° PP INT
Insert size: 22
Thread type (TTP): internal
Thread Form Type Code: 60° PP
ISO: TN22NRN60:T8010
