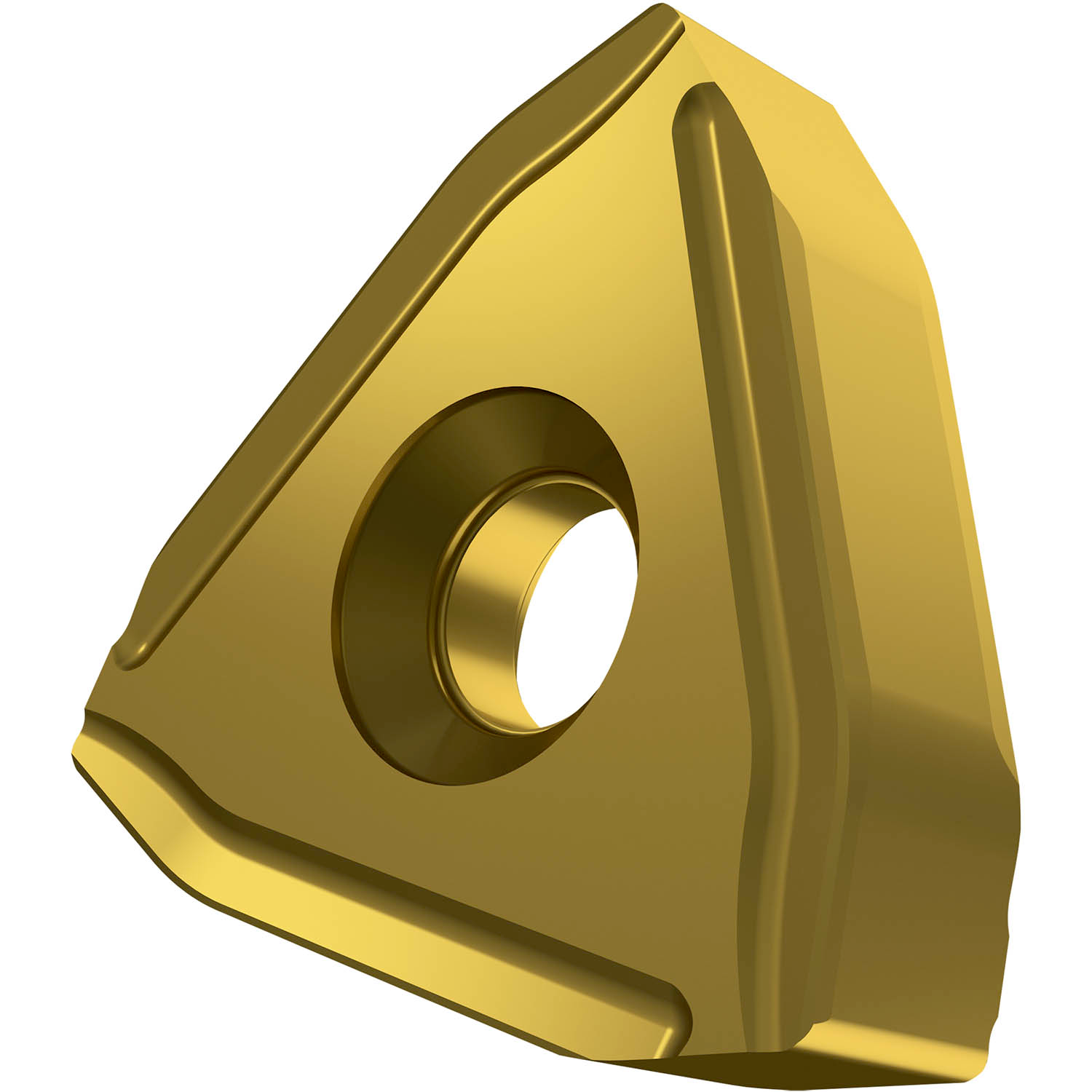

PRAMET TNGJ 220720-PM-S02:T9226 Bar peeling inserts Special order

Description: Value
EAN number: 3603603078819
Product number (SAP): 80026557
Ordering code ANSI: TNGJ 220720-PM-S02:T9226
Gross weight – grams: 59.68
Cutting edge length – millimeter (L): 38 mm
Insert thickness – millimeter (S): 7.94 mm
Depth of cut maximum – millimeter (APMX): 2 mm
Major cutting edge angle (KRINS): 20
Wiper edge length – millimeter (BS): 12 mm
Grade: T9226
Cutting depth – minimal – milimeters (ap): 0.5 mm
Cutting depth – maximal – milimeters (ap): 2 mm
Feed maximal – millimeter: 9 mm/rev
Insert Clearance Code and Angle: N 0°
Insert Design: TNGJ
Insert size: 22
Insert Thickness: 07
Insert Type: J
Chipbreaker manufacturer's designation (CBMD): PM-S02
Insert shape code (SC): T – triangular 60° included angle
Inscribed circle diameter – millimeter (IC): 21.96 mm
Fixing hole diameter – millimeter (D1): 7 mm
ISO: TNGJ220720-PM-S02:T9226
