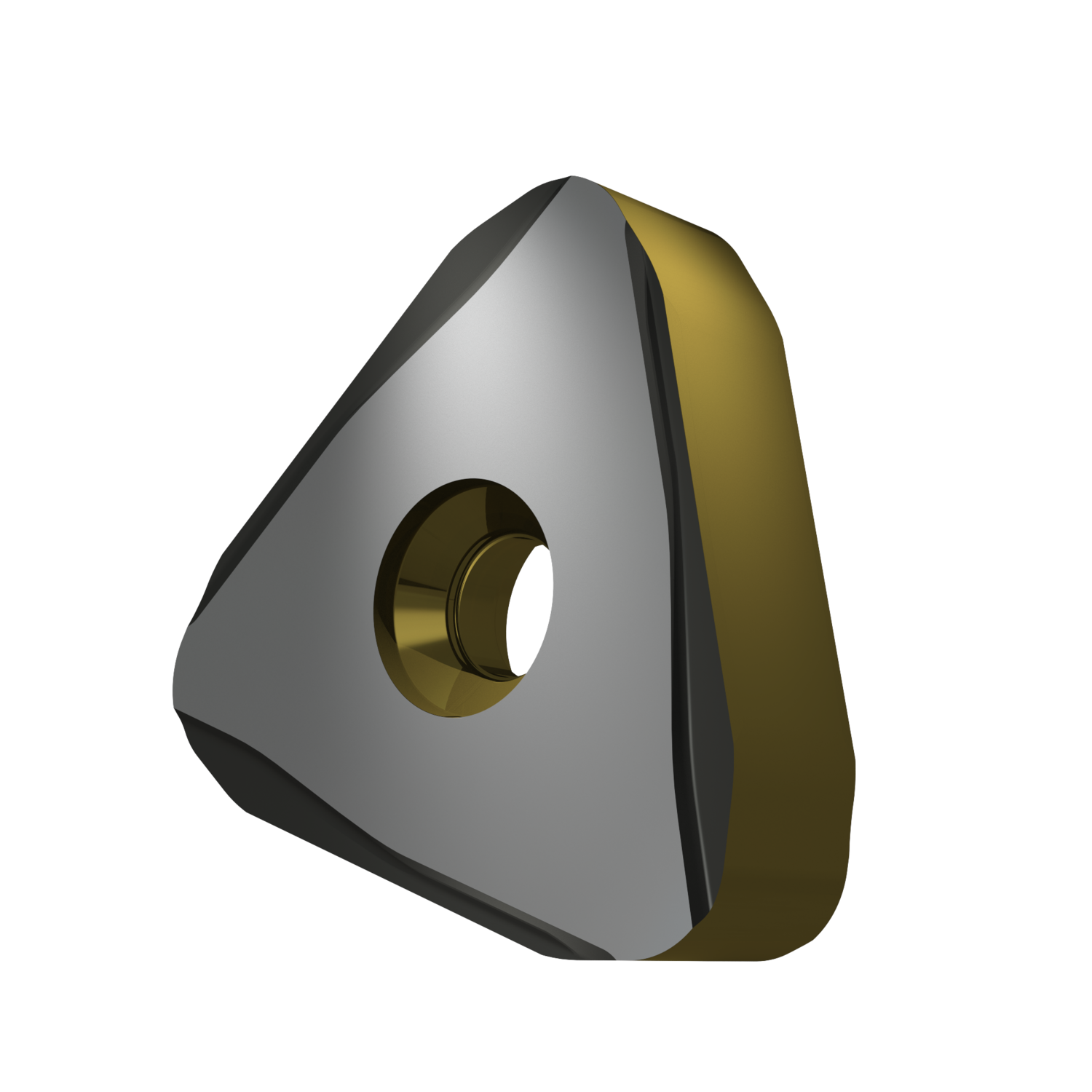

PRAMET TNGJ 281025-PF-S01:T9415 Bar peeling inserts Special order

Description

Double-sided negative barpeeling insert, triangular with inscribed circle diameter of 28.6mm, 9.6mm thick for 2.5mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PF with S01 cutting edge preperation, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for high strength steels

Additional information

Weight	0.1202 kg
barcode	3603604125086
Additional Information	Description: Value EAN number: 3603604125086 Product number (SAP): 80035652 Ordering code ANSI: TNGJ 281025-PF-S01:T9415 Gross weight – grams: 120.186 Cutting edge length – millimeter (L): 49.5 mm Insert thickness – millimeter (S): 10 mm Major cutting edge angle (KRINS): 20 Wiper edge length – millimeter (BS): 18 mm Grade: T9415 Insert Clearance Code and Angle: N 0° Insert Design: TNGJ Insert size: 28 Insert Type: J Chipbreaker manufacturer's designation (CBMD): PF-S01 Insert shape code (SC): T – triangular 60° included angle Inscribed circle diameter – millimeter (IC): 28.6 mm Fixing hole diameter – millimeter (D1): 7 mm ISO: TNGJ281025-PF-S01:T9415
