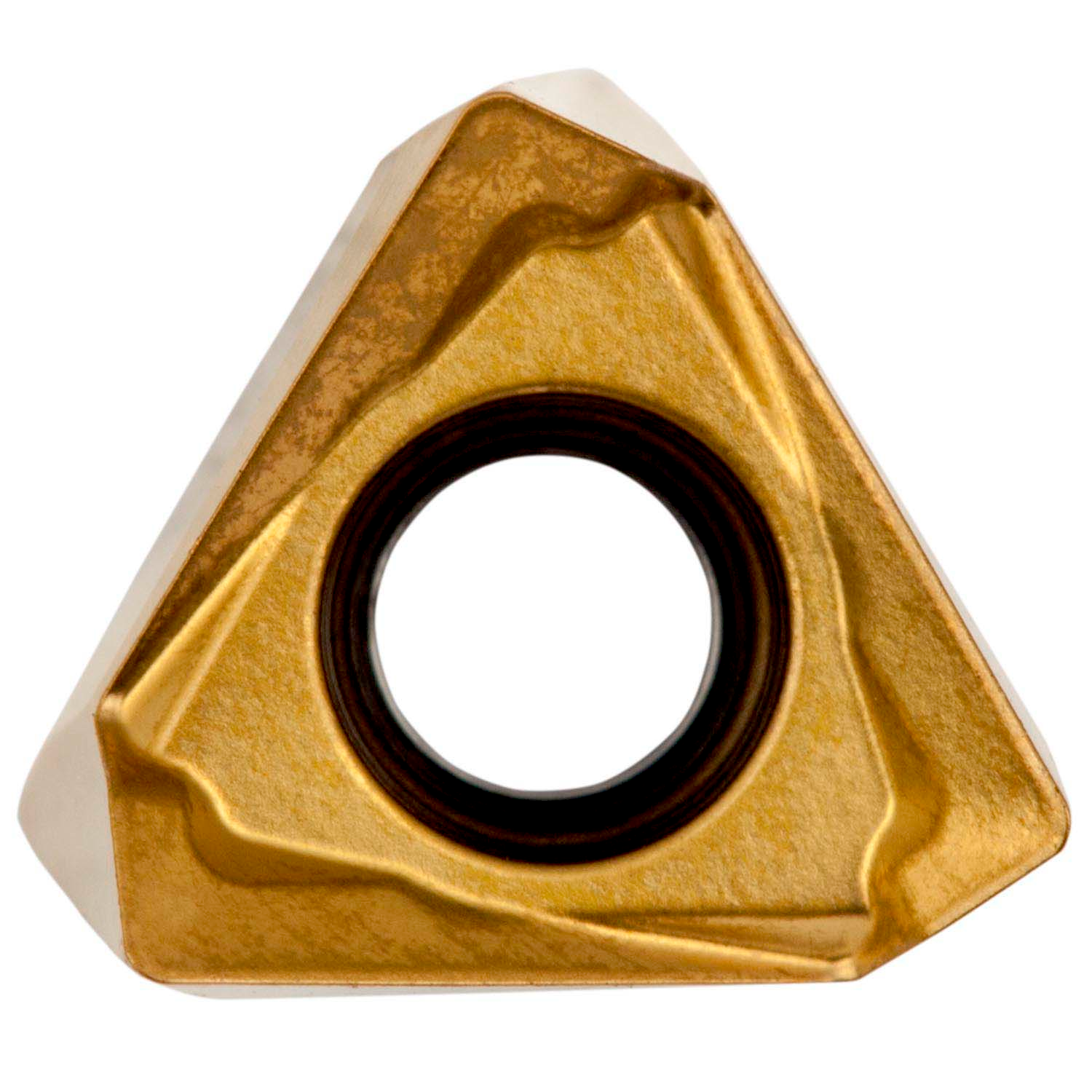

PRAMET TNGX 100408SR-F:M8340 Milling – other and drilling inserts clamped by screw

Description: Value
EAN number: 3603603173415
Product number (SAP): 80028519
Ordering code ANSI: TNGX 100408SR-F:M8340
Gross weight – grams: 1.724
Inscribed circle diameter – millimeter (IC): 6 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Cutting edge length – millimeter (L): 10.39 mm
Insert thickness – millimeter (S): 4.69 mm
Grade: M8340
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert size: 10
Insert Thickness: 04
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): F
Insert shape code (SC): T – triangular 60° included angle
ISO: TNGX100408SR-F:M8340
