PRAMET TNGX 100408SR-F:M9340 Milling - other and drilling inserts clamped by screw

Description

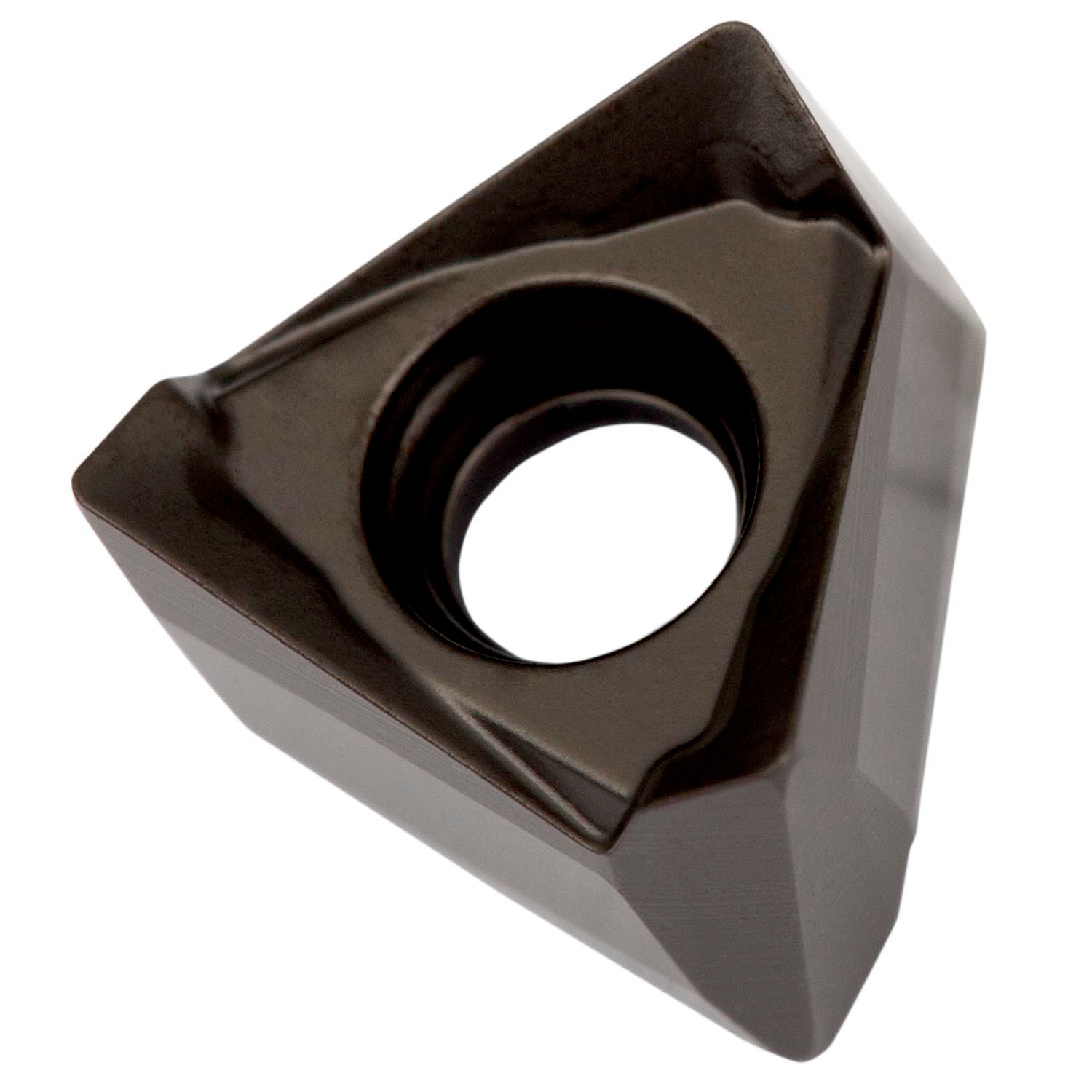

Double-sided milling insert TNGX 1004, triangular for a maximum depth of cut of 5.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-G and F geometry with rounded cutting edges and facet, M9340 MT-CVD coated WC-Co carbide within ISO-grade range P35 -P50 for machining of steel with shoulder face mills STN10

Additional information

Weight	0.0327 kg
barcode
Additional Information	Description: Value EAN number: 3603603173439 Product number (SAP): 80028521 Ordering code ANSI: TNGX 100408SR-F:M9340 Gross weight – grams: 1.72 Inscribed circle diameter – millimeter (IC): 6 mm Fixing hole diameter – millimeter (D1): 2.8 mm Cutting edge length – millimeter (L): 10.39 mm Insert thickness – millimeter (S): 4.69 mm Grade: M9340 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: N 0° Insert size: 10 Insert Thickness: 04 Insert Type: X Chipbreaker manufacturer's designation (CBMD): F Insert shape code (SC): T – triangular 60° included angle ISO: TNGX100408SR-F:M9340

PRAMET TNGX 100408SR-F:M9340 Milling – other and drilling inserts clamped by screw

Need Technical Advice?

Description

Additional information

Brand

PRAMET
