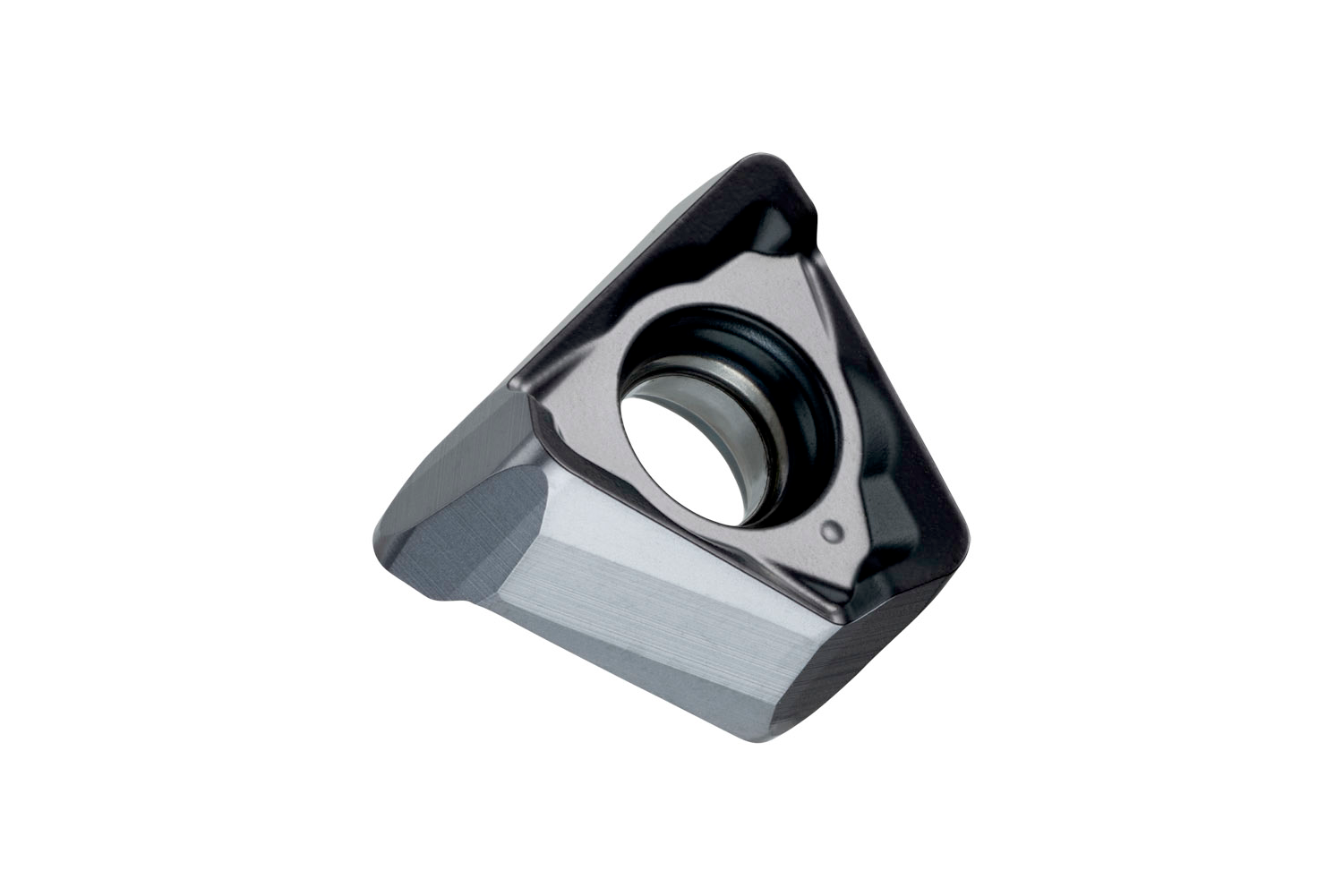

PRAMET TNGX 100416SR-M:M8310 Milling – other and drilling inserts clamped by screw

Description: Value
EAN number: 3603603672574
Product number (SAP): 80031948
Ordering code ANSI: TNGX 100416SR-M:M8310
Gross weight – grams: 1.755
Inscribed circle diameter – millimeter (IC): 6 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Cutting edge length – millimeter (L): 10.39 mm
Insert thickness – millimeter (S): 4.54 mm
Grade: M8310
Corner radius – millimeter (RE): 1.6 mm
Insert Clearance Code and Angle: N 0°
Insert size: 10
Insert Thickness: 04
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): T – triangular 60° included angle
ISO: TNGX100416SR-M:M8310
