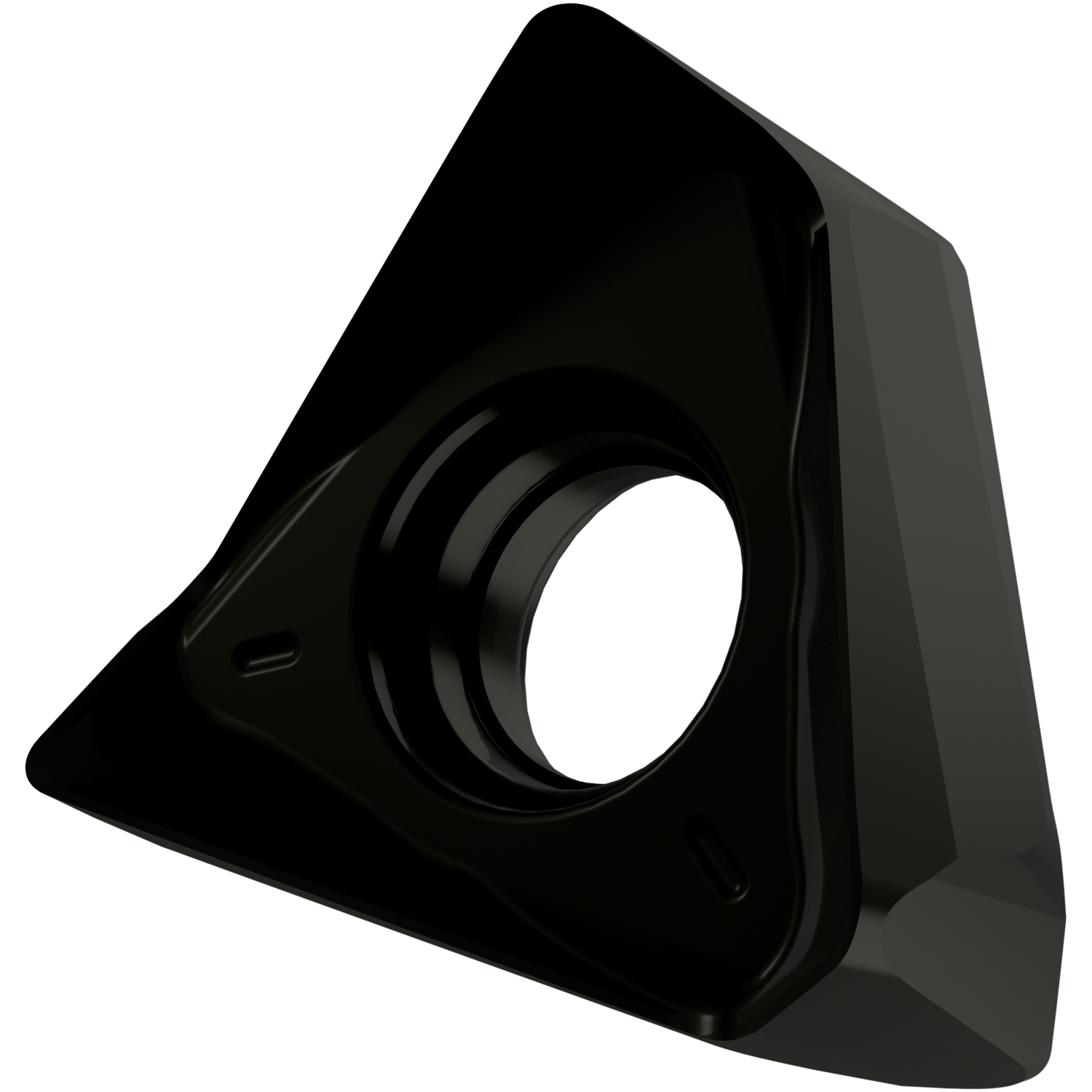

Description: Value
EAN number: 3603603842724
Product number (SAP): 80033523
Ordering code ANSI: TNGX 160608SR-M:M9340
Gross weight – grams: 8.129
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 16.5 mm
Insert thickness – millimeter (S): 6.58 mm
Grade: M9340
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert size: 16
Insert Thickness: 06
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): T – triangular 60° included angle
ISO: TNGX160608SR-M:M9340
|
