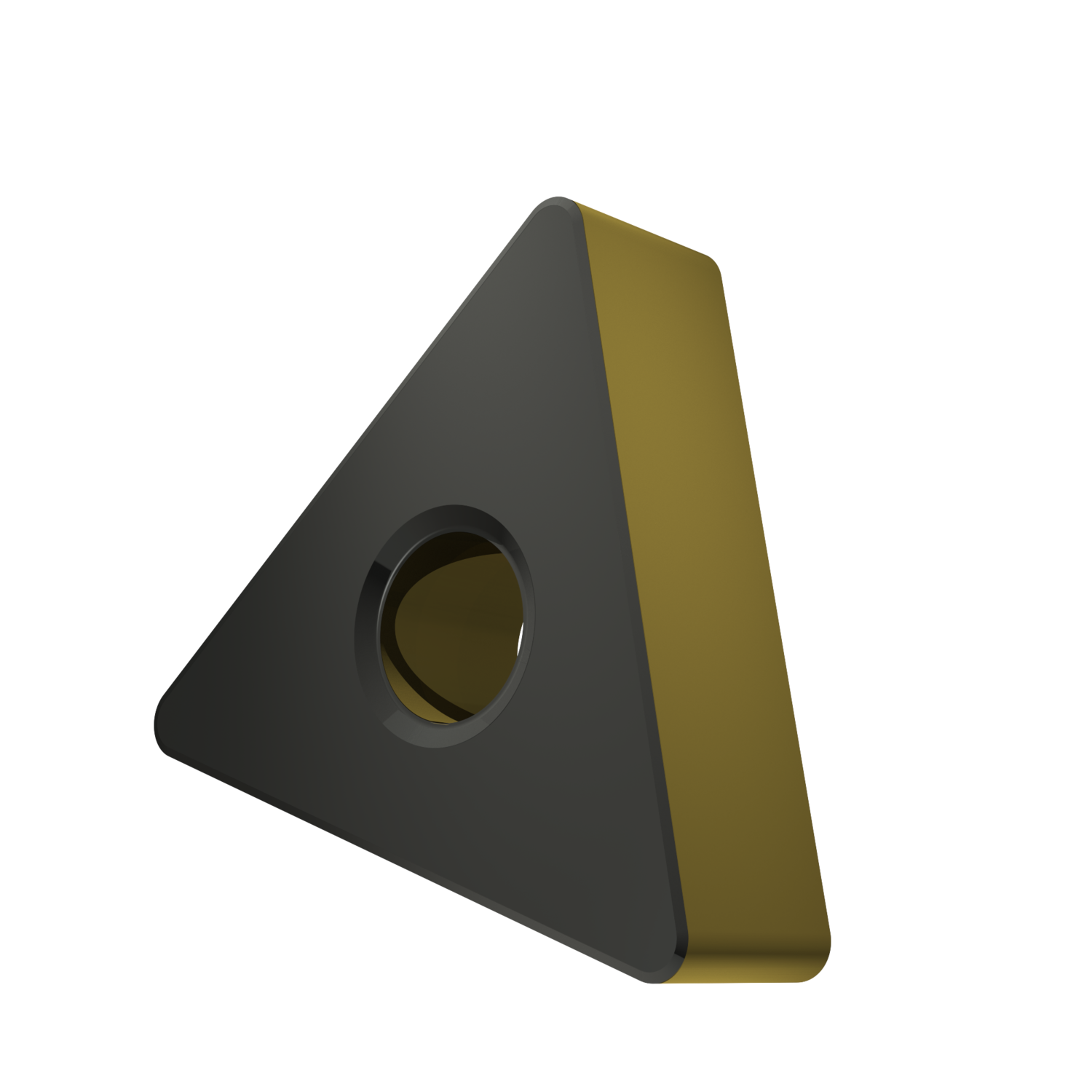

PRAMET TNMA 160408:T5010 Focus Products

Product Code: TNMA 160408:T5010

$12.57$11.43 Ex. GST

Product Code: TNMA 160408:T5010 SKU TNMA 160408:T5010 Categories CUTTING TOOLS (HSS & Carbide), Turning

PRAMET TNMA 160408:T5010 Focus Products

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525mm, 4.76mm thick, with an indexing accuracy according to ISO-tolerance class-M, in coated WC-Co carbide.

Additional information

Weight	0.0073 kg
barcode	3603604165532
Additional Information	Description: Value EAN number: 3603604165532 Product number (SAP): 80035933 Ordering code ANSI: TNMA 332 :T5010 Gross weight – grams: 7.31 Inscribed circle diameter – millimeter (IC): 9.525 mm Fixing hole diameter – millimeter (D1): 3.81 mm Cutting edge length – millimeter (L): 16.5 mm Insert thickness – millimeter (S): 4.76 mm Grade: T5010 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: N 0° Insert Design: TNMA Insert size: 16 Insert Thickness: 04 Insert Type: A Chipbreaker manufacturer's designation (CBMD): No chipbreaker Insert shape code (SC): T – triangular 60° included angle Tool Design: TN Insert Geometry: Negative ISO: TNMA160408:T5010
