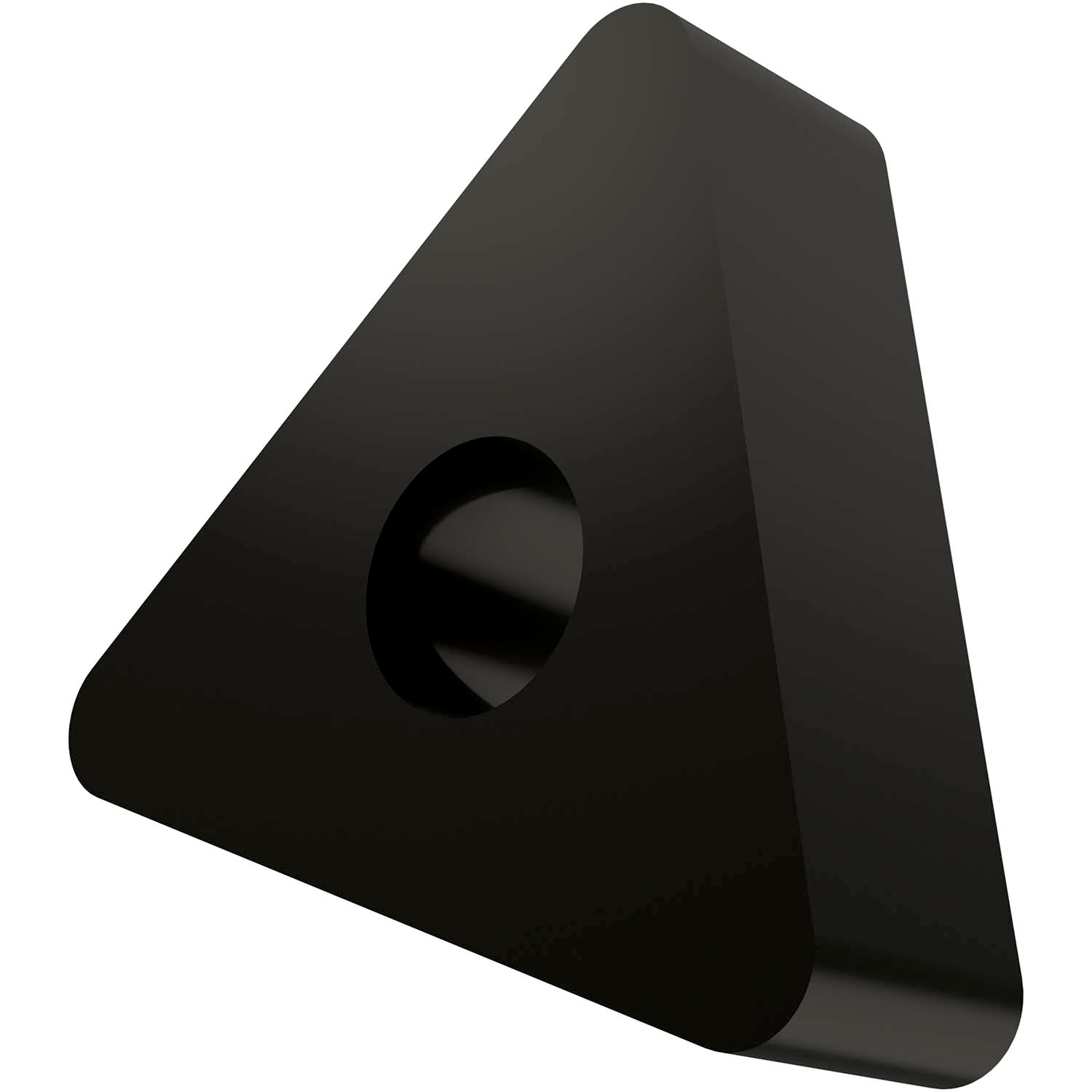

PRAMET TNMA 220408:T5305 Turning inserts negative

Description: Value
EAN number: 3603602912558
Product number (SAP): 80023089
Ordering code ANSI: TNMA 432:T5305
Gross weight – grams: 13.391
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.16 mm
Cutting edge length – millimeter (L): 22 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T5305
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert Design: TNMA
Insert size: 22
Insert Thickness: 04
Insert Type: A
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): T – triangular 60° included angle
Tool Design: TN
Insert Geometry: Negative
ISO: TNMA220408:T5305
