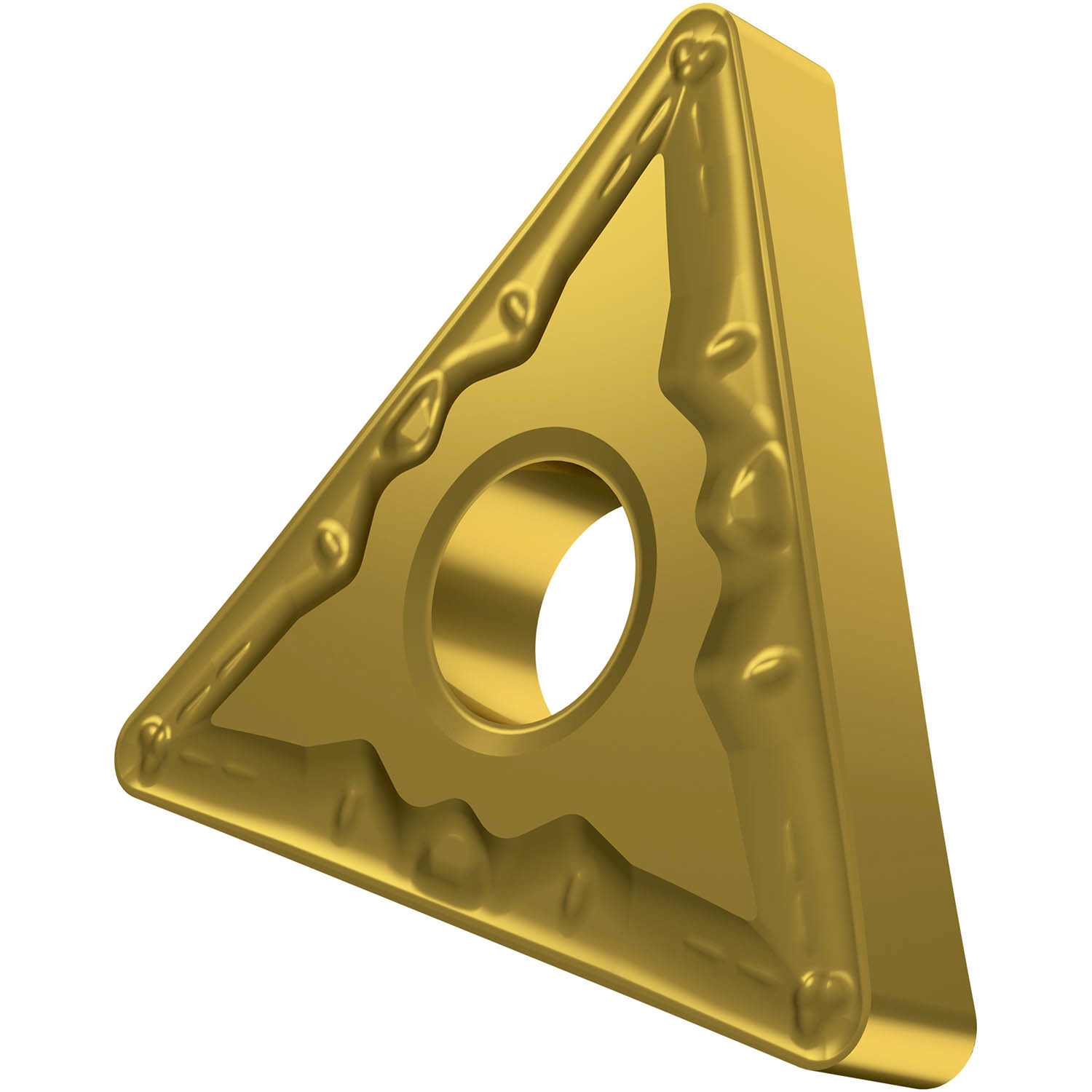

PRAMET TNMG 160408E-FM:TT310 Turning inserts negative

Description: Value
EAN number: 3603602992109
Product number (SAP): 80024247
Ordering code ANSI: TNMG 332-FM:TT310
Gross weight – grams: 3.248
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 3.81 mm
Cutting edge length – millimeter (L): 16.5 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: TT310
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert Design: TNMG
Insert size: 16
Insert Thickness: 04
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): FM
Insert shape code (SC): T – triangular 60° included angle
Tool Design: TN
Insert Geometry: Negative
ISO: TNMG160408E-FM:TT310
