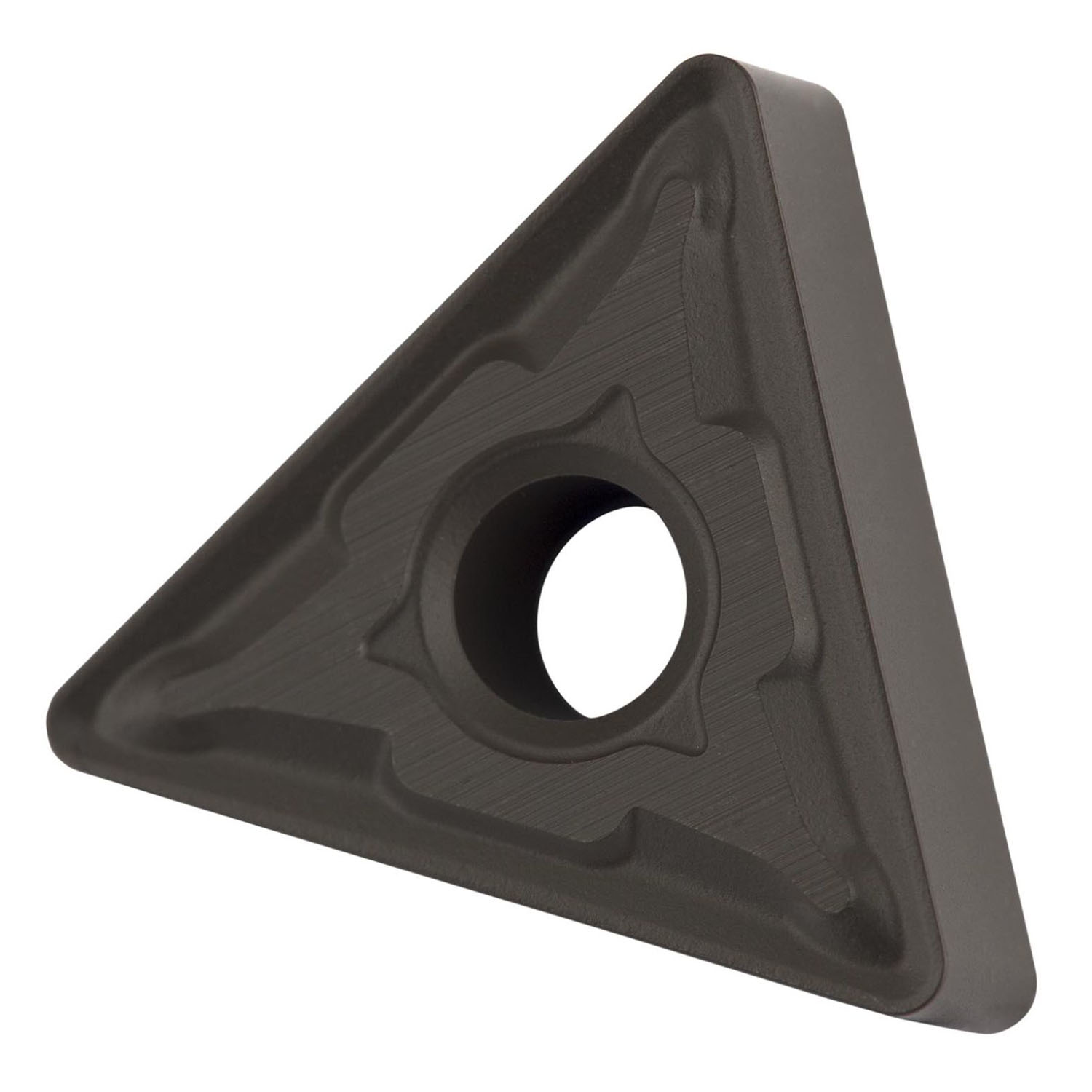

PRAMET TNMG 220408E-M:T5315 Turning inserts negative

Description: Value
EAN number: 3603602910691
Product number (SAP): 80022807
Ordering code ANSI: TNMG 432-M:T5315
Gross weight – grams: 15.54
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.16 mm
Cutting edge length – millimeter (L): 22 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T5315
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert Design: TNMG
Insert size: 22
Insert Thickness: 04
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): T – triangular 60° included angle
Tool Design: TN
Insert Geometry: Negative
ISO: TNMG220408E-M:T5315
