PRAMET TNMG 220412-RK:T5010 Focus Products

Product Code: TNMG 220412-RK:T5010

$16.76$15.24 Ex. GST

Product Code: TNMG 220412-RK:T5010 SKU TNMG 220412-RK:T5010 Categories CUTTING TOOLS (HSS & Carbide), Turning

PRAMET TNMG 220412-RK:T5010 Focus Products

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

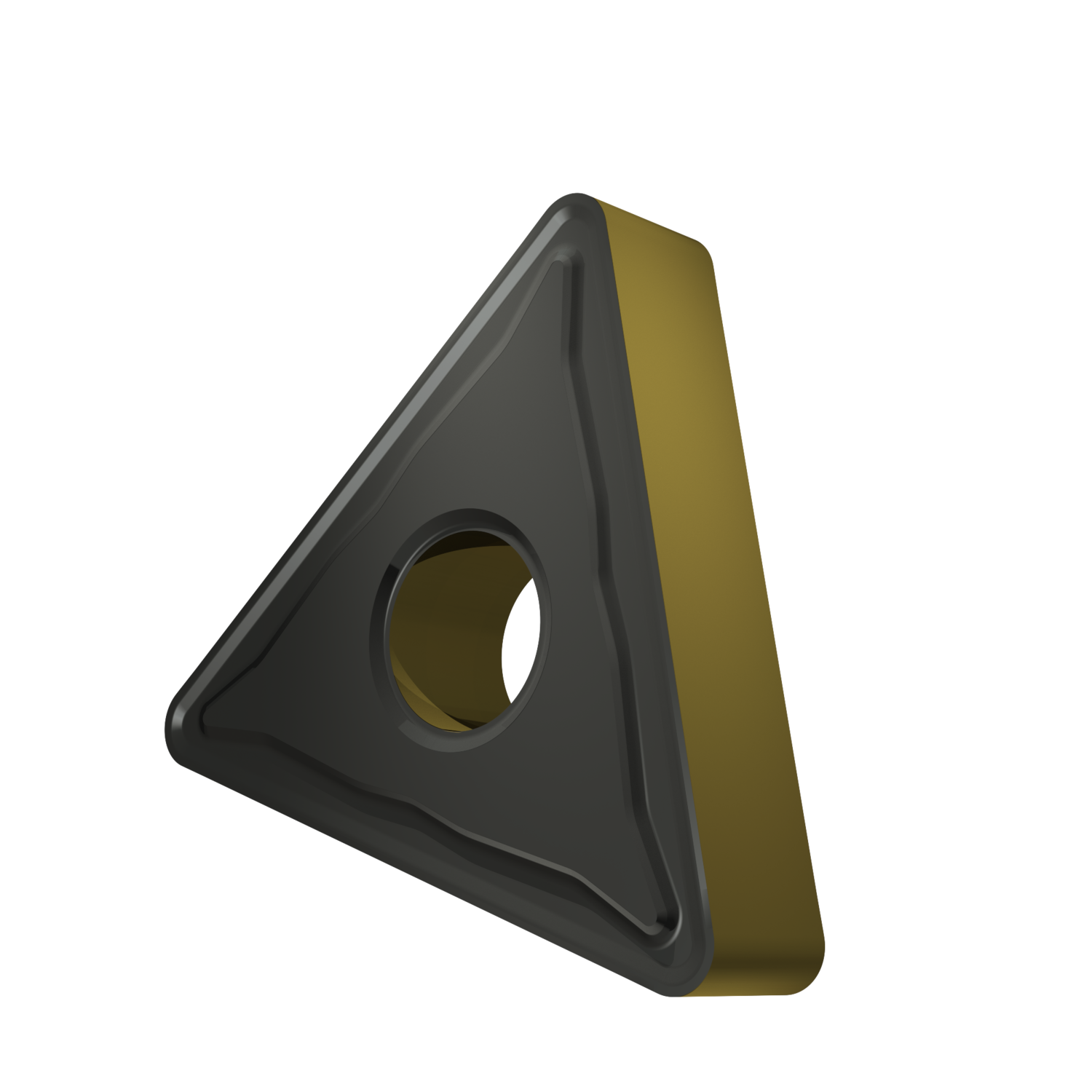

Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525mm, 4.76mm thick, with an indexing accuracy according to ISO-tolerance class-M, with rounded cutting edges.

Additional information

Weight	0.0130 kg
barcode	3603604188609
Additional Information	Description: Value EAN number: 3603604188609 Product number (SAP): 80036022 Ordering code ANSI: TNMG 433-RK:T5010 Gross weight – grams: 13.043 Inscribed circle diameter – millimeter (IC): 12.7 mm Fixing hole diameter – millimeter (D1): 5.16 mm Cutting edge length – millimeter (L): 22 mm Insert thickness – millimeter (S): 4.76 mm Grade: T5010 Corner radius – millimeter (RE): 1.2 mm Insert Clearance Code and Angle: N 0° Insert Design: TNMG Insert size: 22 Insert Thickness: 04 Insert Type: G Chipbreaker manufacturer's designation (CBMD): RK Insert shape code (SC): T – triangular 60° included angle Tool Design: TN Insert Geometry: Negative ISO: TNMG220412-RK:T5010
