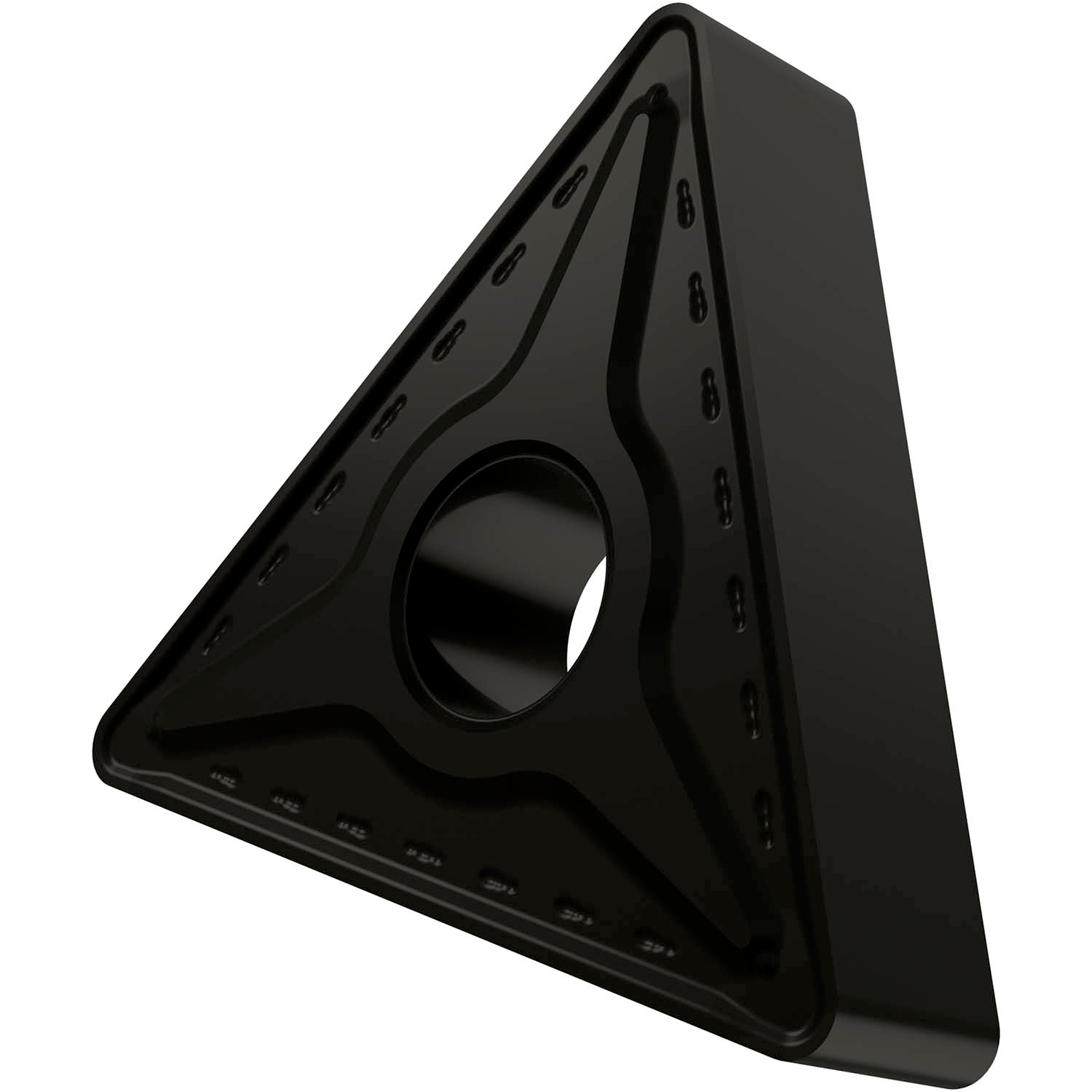

PRAMET TNMG 330924E-RM:T9335 Turning inserts negative

Description: Value
EAN number: 3603602903563
Product number (SAP): 80017328
Ordering code ANSI: TNMG 666-RM:T9335
Gross weight – grams: 51.733
Inscribed circle diameter – millimeter (IC): 19.05 mm
Fixing hole diameter – millimeter (D1): 7.94 mm
Cutting edge length – millimeter (L): 33 mm
Insert thickness – millimeter (S): 9.525 mm
Grade: T9335
Corner radius – millimeter (RE): 2.4 mm
Insert Clearance Code and Angle: N 0°
Insert Design: TNMG
Insert size: 33
Insert Thickness: 09
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): RM
Insert shape code (SC): T – triangular 60° included angle
Tool Design: TN
Insert Geometry: Negative
ISO: TNMG330924E-RM:T9335
