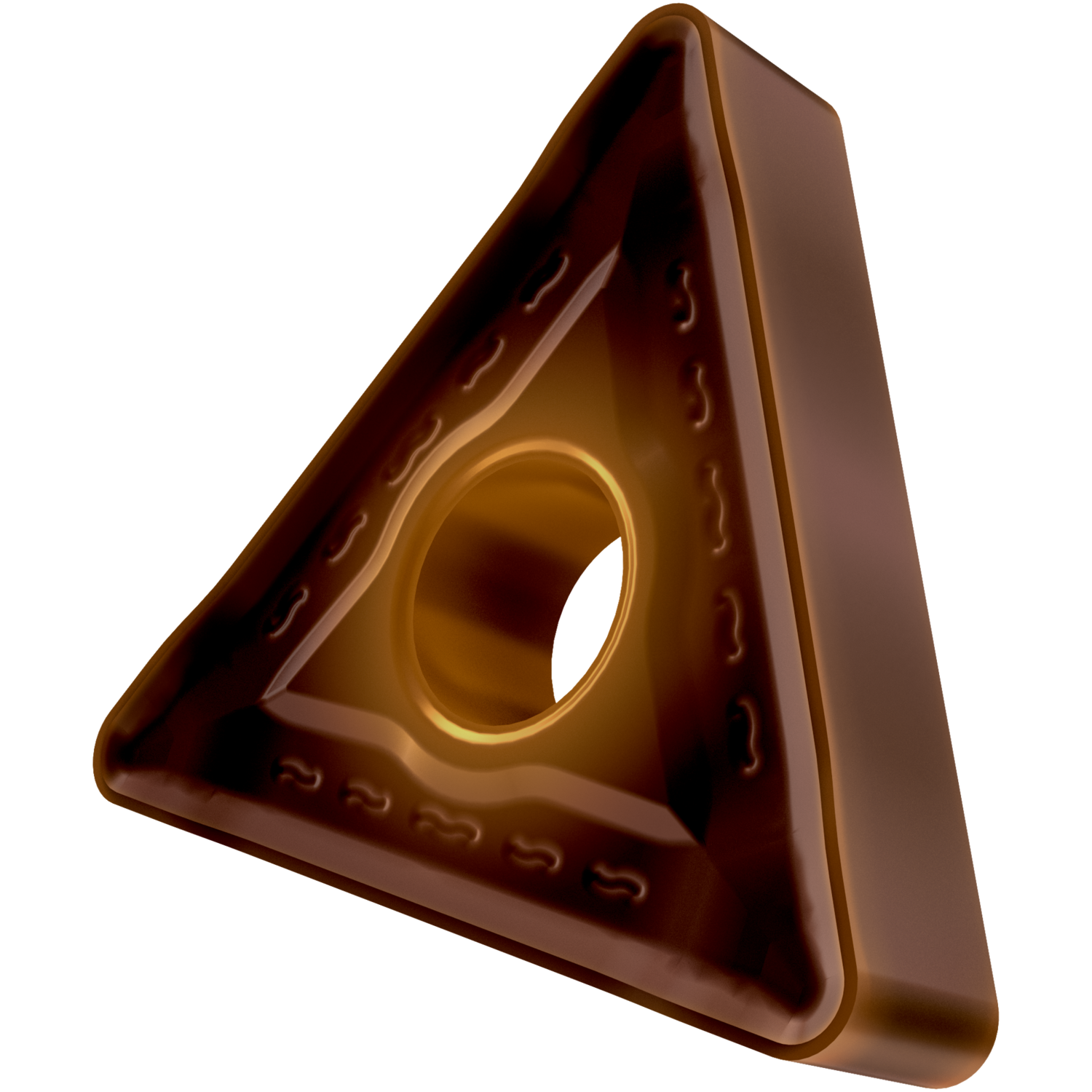

PRAMET TNMM 220412E-NR2:T8430 Turning inserts negative

Description

Double-sided negative turning insert, triangular with inscribed circle diameter of 12.7mm, 4.76mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NR2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for medium to extra heavy machining of steels and stainless-steels

Additional information

Weight	0.0259 kg
barcode
Additional Information	Description: Value EAN number: 3603603817678 Product number (SAP): 80032989 Ordering code ANSI: TNMM 433-NR2:T8430 Gross weight – grams: 11.598 Inscribed circle diameter – millimeter (IC): 12.7 mm Fixing hole diameter – millimeter (D1): 5.16 mm Cutting edge length – millimeter (L): 22 mm Insert thickness – millimeter (S): 4.76 mm Grade: T8430 Corner radius – millimeter (RE): 1.2 mm Insert Clearance Code and Angle: N 0° Insert Design: TNMM Insert size: 22 Insert Thickness: 04 Insert Type: M Chipbreaker manufacturer's designation (CBMD): NR2 Insert shape code (SC): T – triangular 60° included angle Tool Design: TN Insert Geometry: Negative ISO: TNMM220412E-NR2:T8430

Need Technical Advice?

Description

Additional information

Brand

PRAMET
