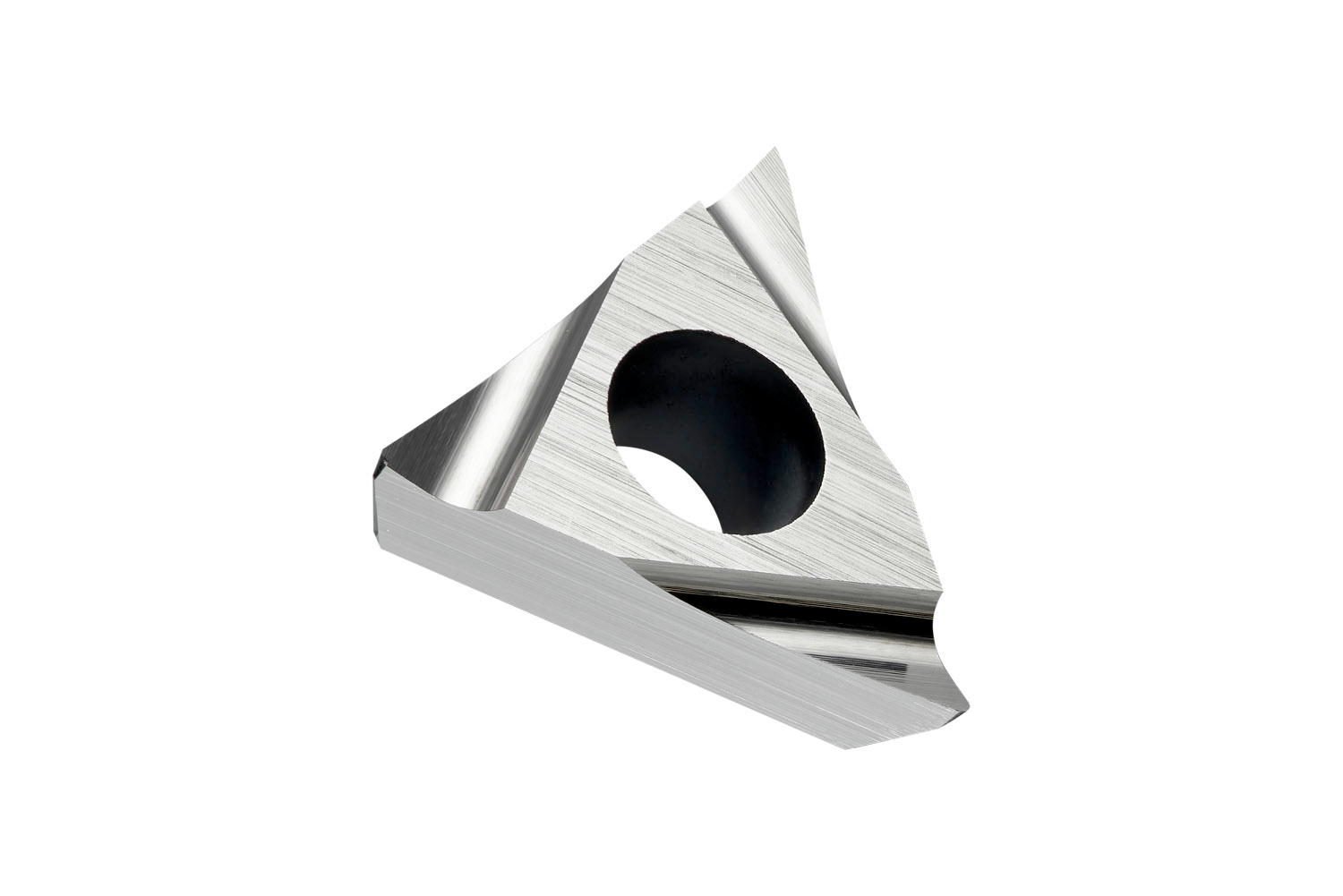

PRAMET TPGX 090202FL-JZ:TT010 Turning inserts positive

Description: Value
EAN number: 3603603129283
Product number (SAP): 80028993
Ordering code ANSI: TPGX1.81.50.5FL-JZ:TT010
Gross weight – grams: 0.46
Inscribed circle diameter – millimeter (IC): 5.56 mm
Fixing hole diameter – millimeter (D1): 2.5 mm
Cutting edge length – millimeter (L): 9.6 mm
Insert thickness – millimeter (S): 2.38 mm
Grade: TT010
Corner radius – millimeter (RE): 0.2 mm
Insert Clearance Code and Angle: P 11°
Insert Design: TPGX
Insert size: 09
Insert Thickness: 02
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): JZ
Insert shape code (SC): T – triangular 60° included angle
Tool Design: TP
Insert Geometry: Positive
ISO: TPGX090202FL-JZ:TT010
