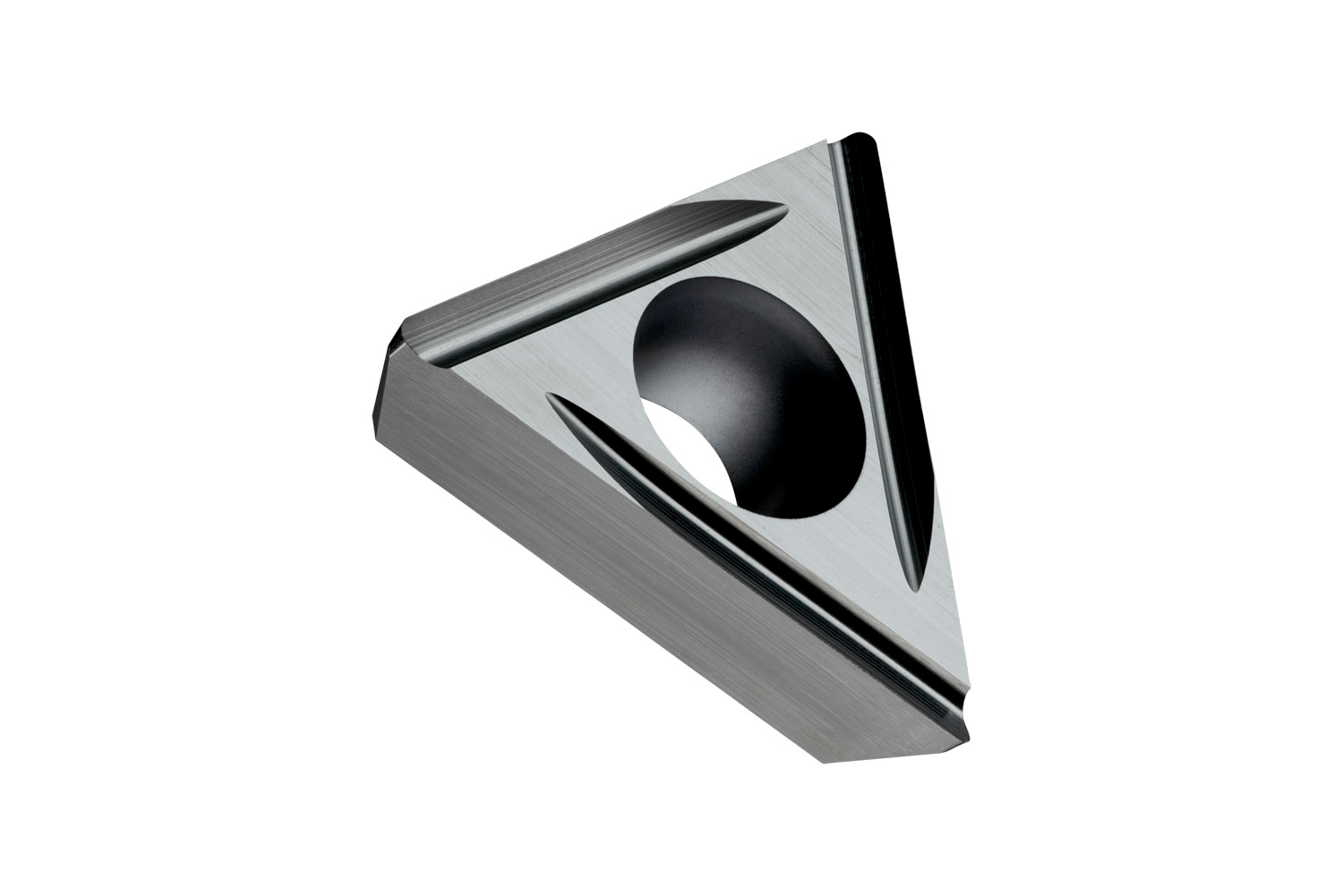

PRAMET TPGX 16T304FL-JR:TT010 Turning inserts positive

Description

Special design positive turning insert, triangular with 11° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker JR with sharp cutting edges, in grade TT010, an uncoated cermet within ISO range P01 -P10, for fine machining of steels with a left handed turning tool

Additional information

Weight	0.0448 kg
barcode
Additional Information	Description: Value EAN number: 3603603129276 Product number (SAP): 80028992 Ordering code ANSI: TPGX 32.51FL-JR:TT010 Gross weight – grams: 2.17 Inscribed circle diameter – millimeter (IC): 9.525 mm Fixing hole diameter – millimeter (D1): 4.4 mm Cutting edge length – millimeter (L): 16.5 mm Insert thickness – millimeter (S): 3.97 mm Grade: TT010 Corner radius – millimeter (RE): 0.4 mm Insert Clearance Code and Angle: P 11° Insert Design: TPGX Insert size: 16 Insert Thickness: T3 Insert Type: X Chipbreaker manufacturer's designation (CBMD): JR Insert shape code (SC): T – triangular 60° included angle Tool Design: TP Insert Geometry: Positive ISO: TPGX16T304FL-JR:TT010
