PRAMET TPMR 110304-PF2:TT010 Turning inserts others

Description

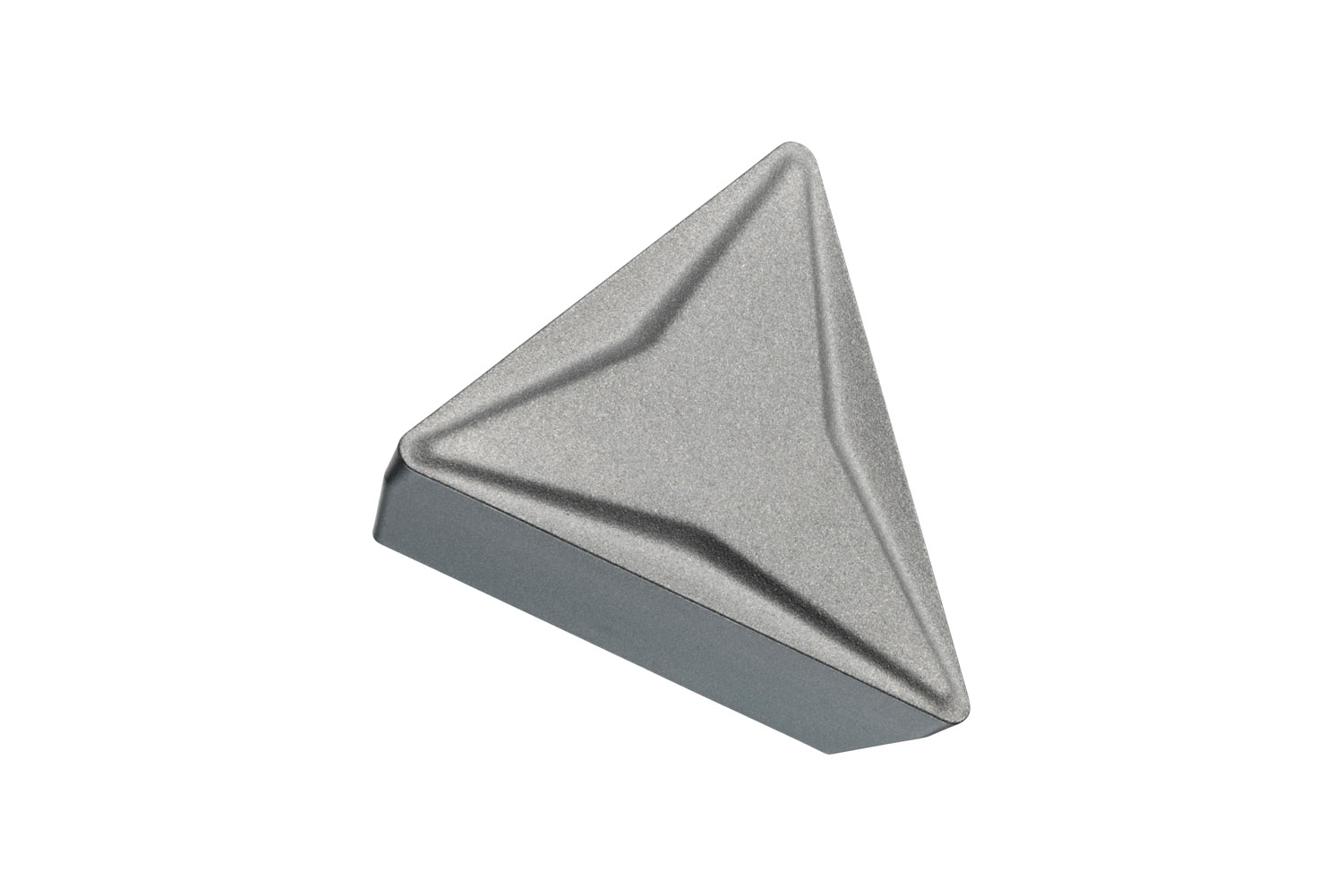

Single-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 6.35mm, 3.18mm thick, 0.4mm nose radius and indexing accuracy according to ISO-tolerance class-M, chip-breaker PF2, in grade TT010, an uncoated cermet within ISO range P01 -P10, for fine to medium machining of steels

Additional information

Weight	0.0125 kg
barcode
Additional Information	Description: Value EAN number: 3603603172425 Product number (SAP): 80028999 Ordering code ANSI: TPMR 221-PF2:TT010 Gross weight – grams: 0.95 Inscribed circle diameter – millimeter (IC): 6.35 mm Cutting edge length – millimeter (L): 11 mm Insert thickness – millimeter (S): 3.18 mm Grade: TT010 Corner radius – millimeter (RE): 0.4 mm Insert Clearance Code and Angle: P 11° Insert Design: TPMR Insert size: 11 Insert Thickness: 03 Insert Type: R Chipbreaker manufacturer's designation (CBMD): PF2 Insert shape code (SC): T – triangular 60° included angle Tool Design: TP Insert Geometry: Positive ISO: TPMR110304-PF2:TT010

Need Technical Advice?

Description

Additional information

Brand

PRAMET
