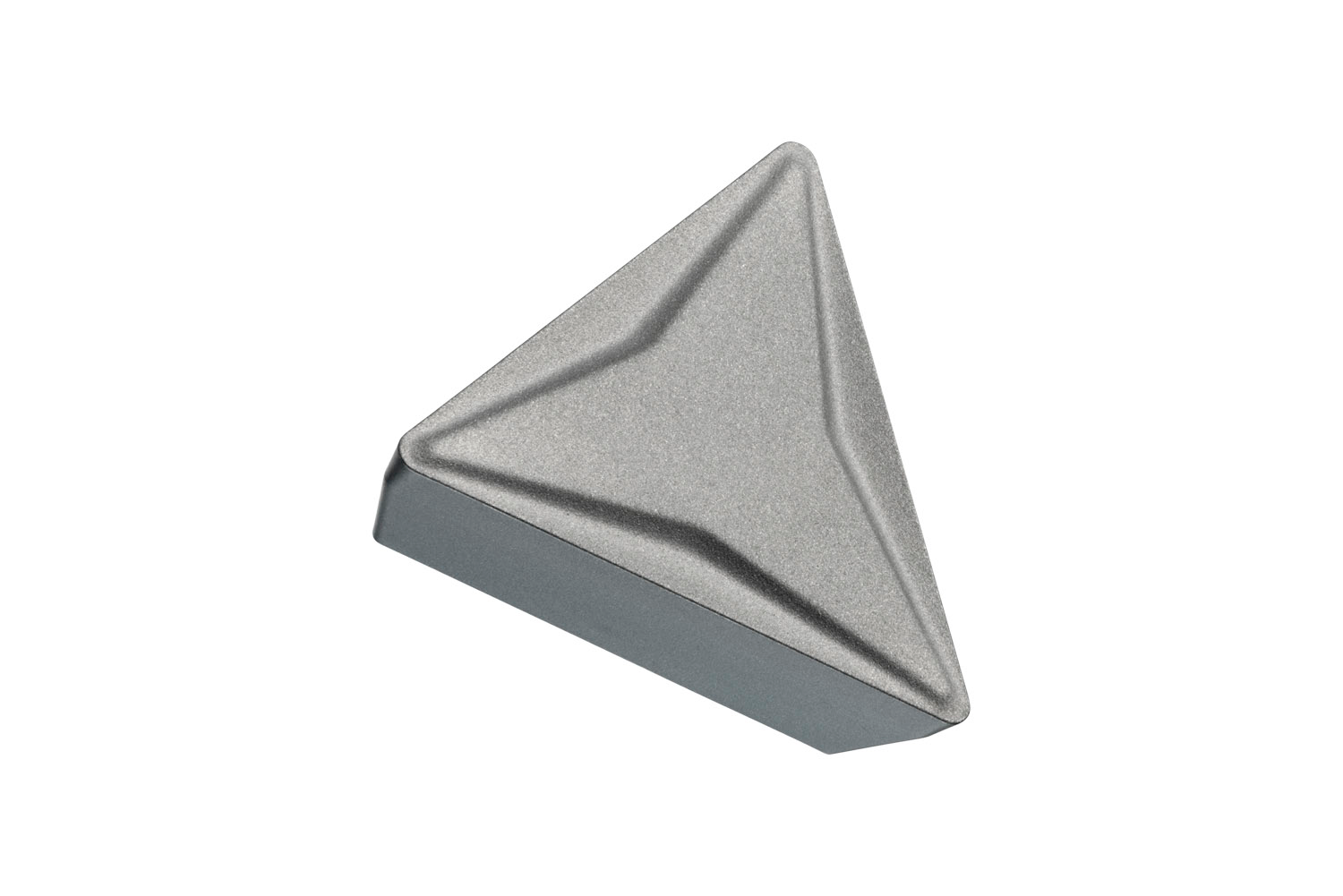

PRAMET TPMR 160304-PF2:TT010 Turning inserts others

Product Code: TPMR 160304-PF2:TT010

$17.90$16.27 Ex. GST

Product Code: TPMR 160304-PF2:TT010 SKU TPMR 160304-PF2:TT010 Categories , ,
PRAMET TPMR 160304-PF2:TT010 Turning inserts others

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Single-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 9.525mm, 3.18mm thick, 0.4mm nose radius and indexing accuracy according to ISO-tolerance class-M, chip-breaker PF2, in grade TT010, an uncoated cermet within ISO range P01 -P10, for fine to medium machining of steels

Additional information

Weight 0.0174 kg
barcode
Additional Information

Description: Value
EAN number: 3603603172432
Product number (SAP): 80029000
Ordering code ANSI: TPMR 321-PF2:TT010
Gross weight – grams: 2.267
Inscribed circle diameter – millimeter (IC): 9.525 mm
Cutting edge length – millimeter (L): 16.5 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: TT010
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: P 11°
Insert Design: TPMR
Insert size: 16
Insert Thickness: 03
Insert Type: R
Chipbreaker manufacturer's designation (CBMD): PF2
Insert shape code (SC): T – triangular 60° included angle
Tool Design: TP
Insert Geometry: Positive
ISO: TPMR160304-PF2:TT010

Brand

PRAMET
