PRAMET TPMR 160304E-47:T9325 Turning inserts others

Product Code: TPMR 160304E-47:T9325

$18.92$17.20 Ex. GST

Product Code: TPMR 160304E-47:T9325 SKU TPMR 160304E-47:T9325 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

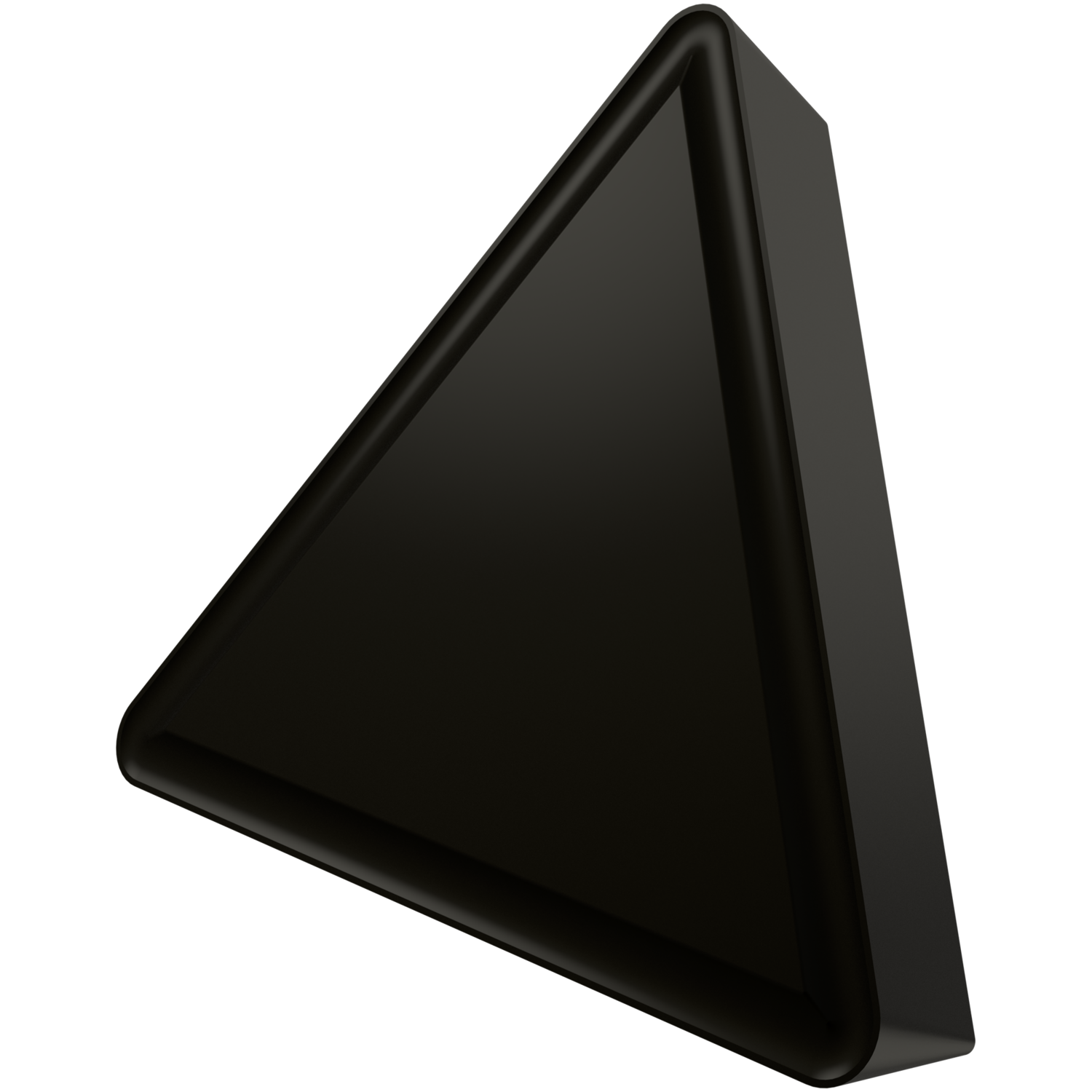

Single-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 9.525mm, 3.18mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker 47 with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15 -P35, for fine to medium machining of steels

Additional information

Weight 0.0184 kg
barcode
Additional Information

Description: Value
EAN number: 3603602892171
Product number (SAP): 80015890
Ordering code ANSI: TPMR 321-47:T9325
Gross weight – grams: 5.64
Inscribed circle diameter – millimeter (IC): 9.525 mm
Cutting edge length – millimeter (L): 16.5 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: T9325
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: P 11°
Insert Design: TPMR
Insert size: 16
Insert Thickness: 03
Insert Type: R
Chipbreaker manufacturer's designation (CBMD): 47
Insert shape code (SC): T – triangular 60° included angle
Tool Design: TP
Insert Geometry: Positive
ISO: TPMR160304E-47:T9325

Brand

PRAMET
