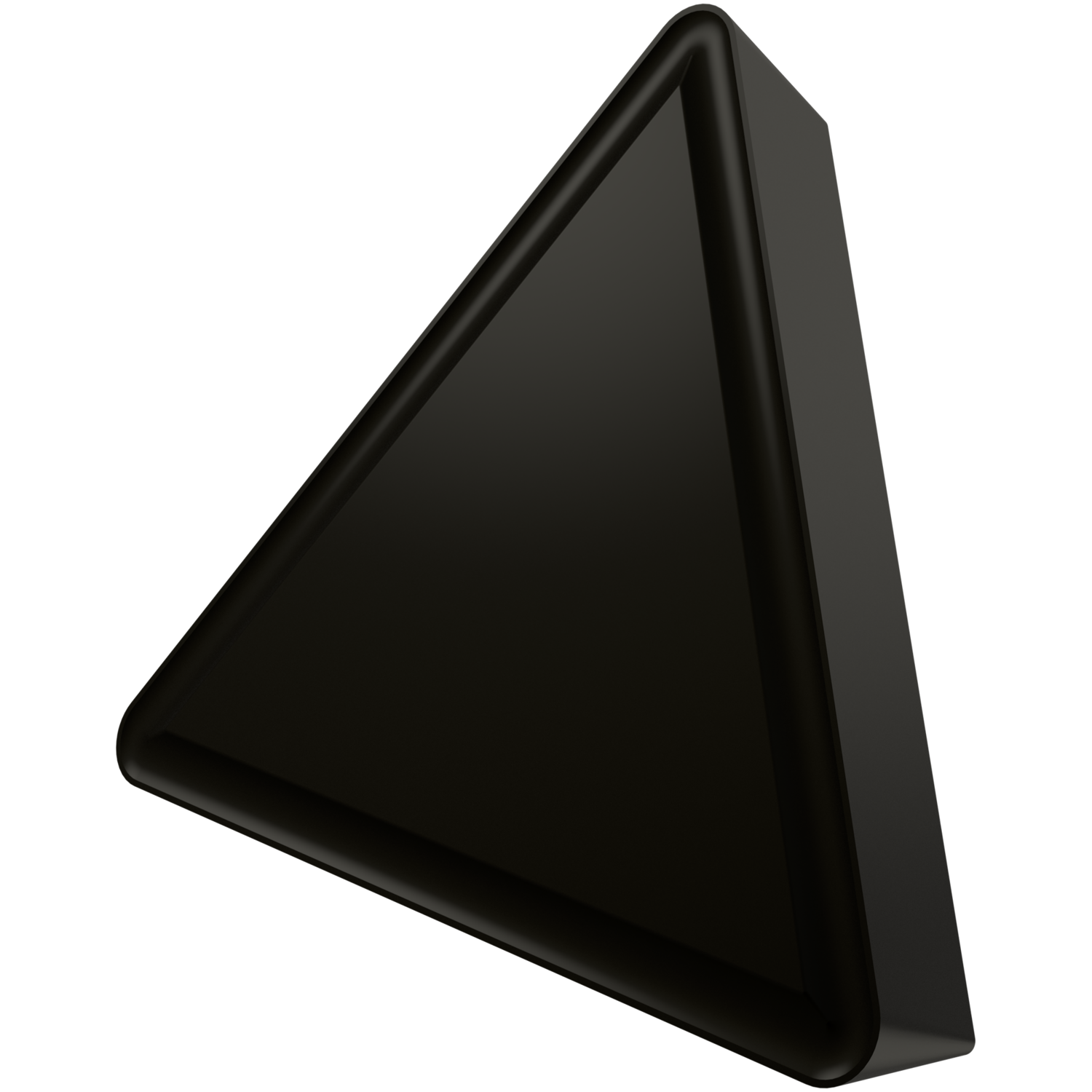

PRAMET TPMR 160312E-47:T9335 Turning inserts others

Description: Value
EAN number: 3603602903730
Product number (SAP): 80017378
Ordering code ANSI: TPMR 323-47:T9335
Gross weight – grams: 5.54
Inscribed circle diameter – millimeter (IC): 9.525 mm
Cutting edge length – millimeter (L): 16.5 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: T9335
Corner radius – millimeter (RE): 1.2 mm
Insert Clearance Code and Angle: P 11°
Insert Design: TPMR
Insert size: 16
Insert Thickness: 03
Insert Type: R
Chipbreaker manufacturer's designation (CBMD): 47
Insert shape code (SC): T – triangular 60° included angle
Tool Design: TP
Insert Geometry: Positive
ISO: TPMR160312E-47:T9335
