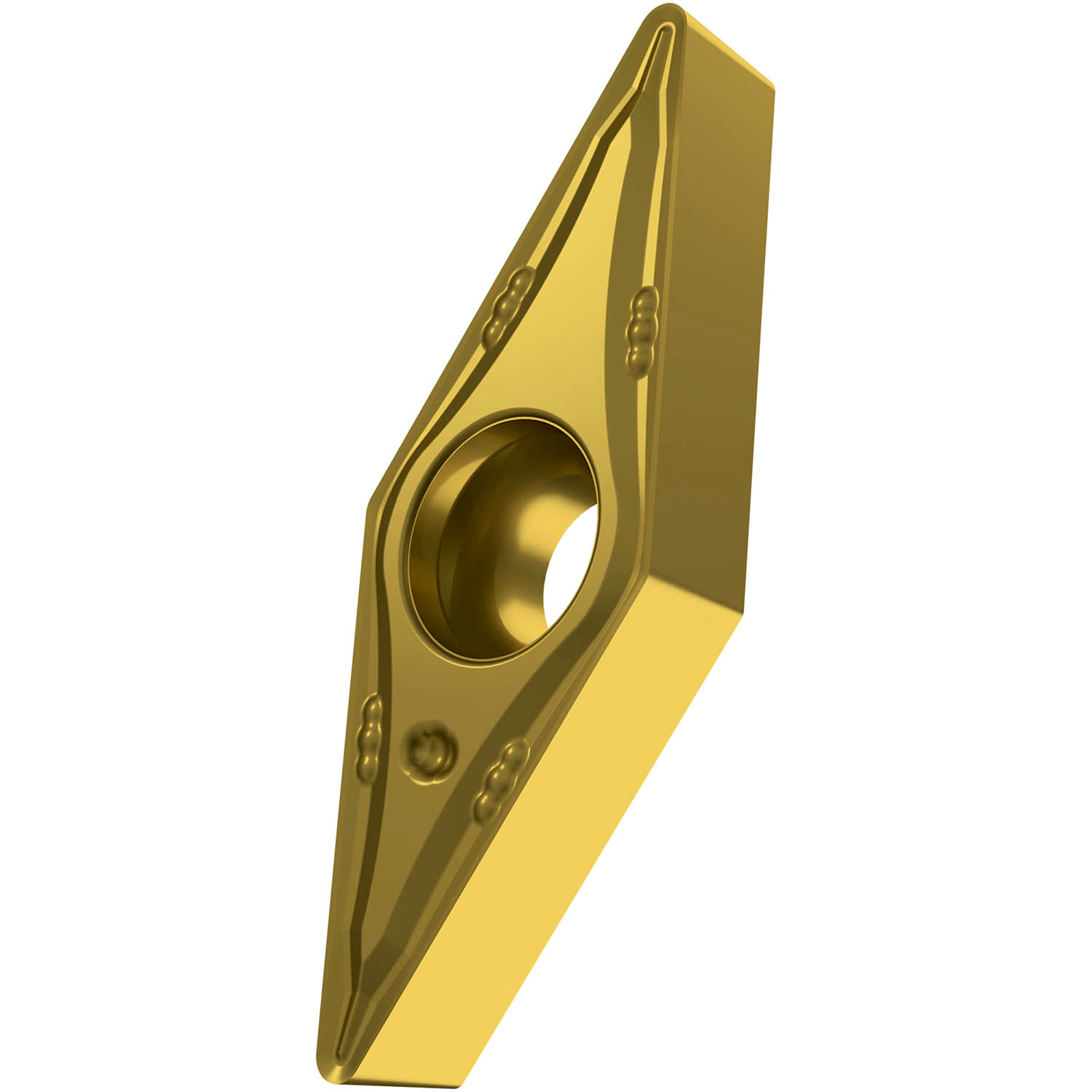

PRAMET VBMT 110202E-UR:TT310 Turning inserts positive

Description: Value
EAN number: 3603602916433
Product number (SAP): 80023656
Ordering code ANSI: VBMT 21.50.5-UR:TT310
Gross weight – grams: 2.1
Inscribed circle diameter – millimeter (IC): 6.35 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Cutting edge length – millimeter (L): 11.1 mm
Insert thickness – millimeter (S): 2.38 mm
Grade: TT310
Corner radius – millimeter (RE): 0.2 mm
Insert Clearance Code and Angle: B 5°
Insert Design: VBMT
Insert size: 11
Insert Thickness: 02
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): UR
Insert shape code (SC): V – rhombic 35° included angle
Tool Design: VB
Insert Geometry: Positive
ISO: VBMT110202E-UR:TT310
