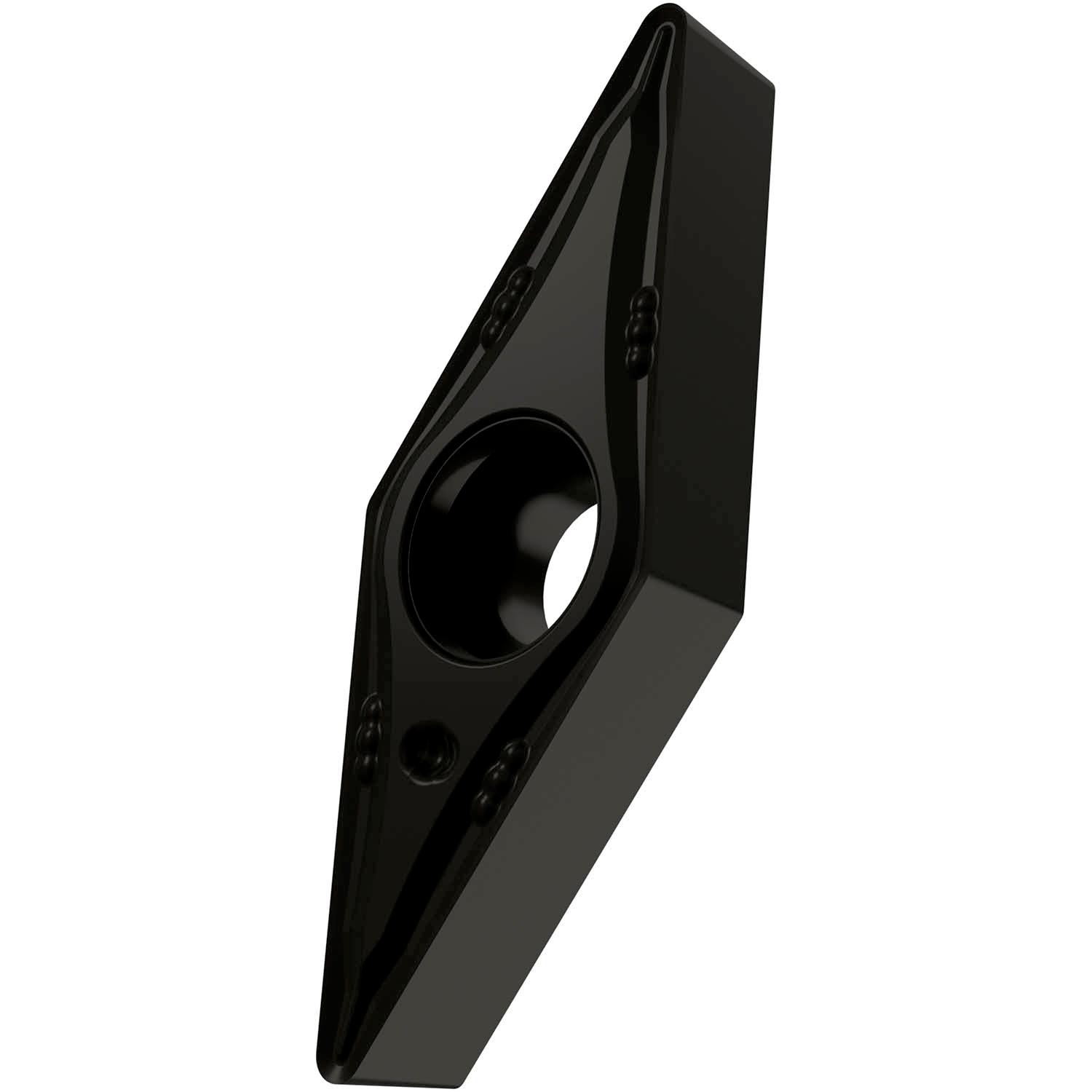

PRAMET VBMT 110302E-FM:T7325 Turning inserts positive

Description: Value
EAN number: 3603603165342 Product number (SAP): 80027960 Ordering code ANSI: VBMT 220.5-FM:T7325 Gross weight: 2.592 g Inscribed circle diameter (IC): 6.35 mm Fixing hole diameter (D1): 2.8 mm Cutting edge length (L): 11.1 mm Insert thickness (S): 3.18 mm Grade: T7325 Corner radius (RE): 0.2 mm Insert Clearance Code and Angle: B 5° Insert Design: VBMT Insert size: 11 Insert Thickness: 03 Insert Type: T Chipbreaker manufacturer's designation (CBMD): FM Insert shape code (SC): V – rhombic 35° included angle Tool Design: VB Insert Geometry: Positive ISO: VBMT110302E-FM:T7325
