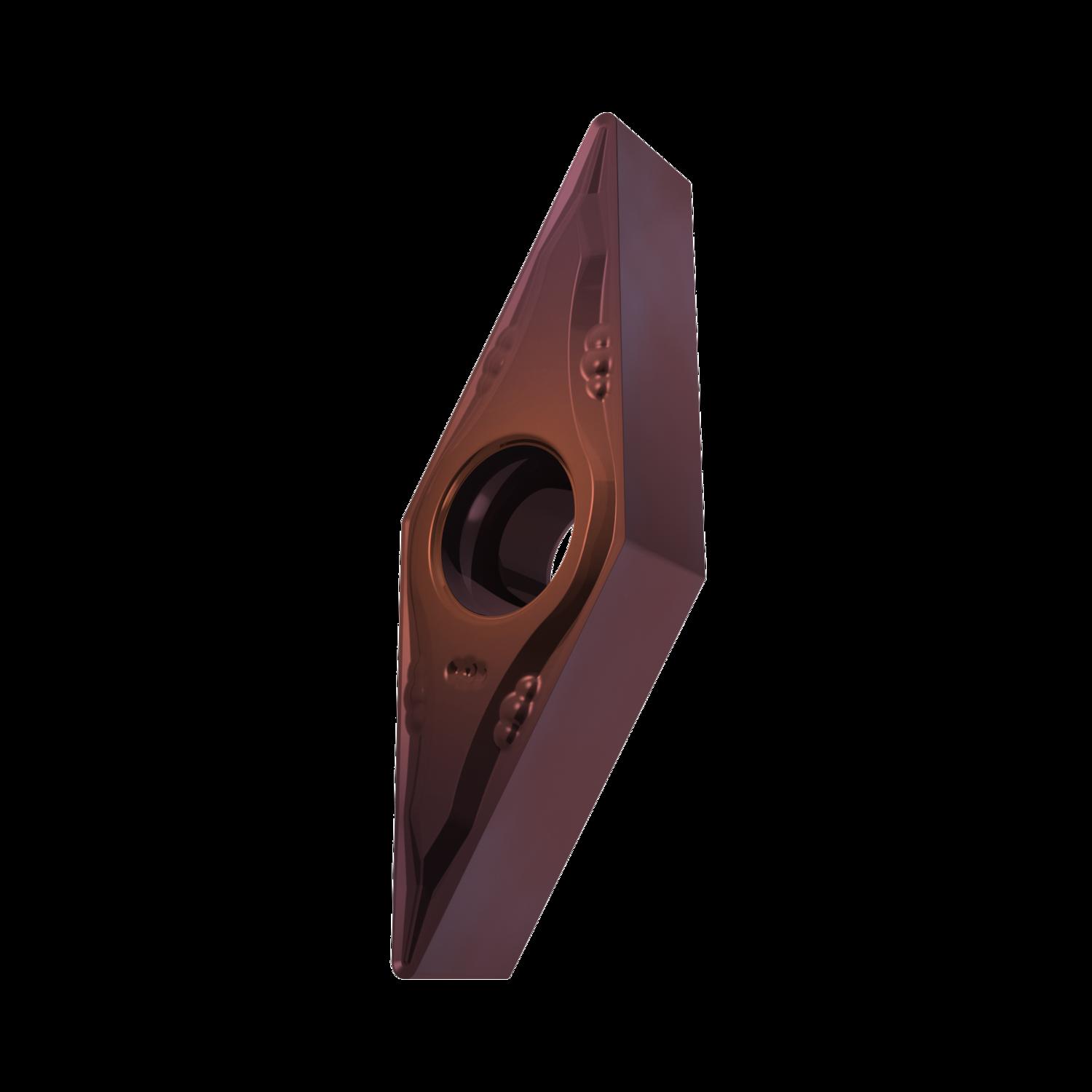

PRAMET VBMT 110304E-FM:T8415 Turning inserts positive

Description: Value
EAN number: 3603604269896
Product number (SAP): 80036430
Ordering code ANSI: VBMT 221-FM:T8415
Gross weight – grams: 3.8
Inscribed circle diameter – millimeter (IC): 6.35 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Cutting edge length – millimeter (L): 11.1 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: T8415
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: B 5°
Insert Design: VBMT
Insert size: 11
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FM
Insert shape code (SC): V – rhombic 35° included angle
Tool Design: VB
Insert Geometry: Positive
ISO: VBMT110304E-FM:T8415
