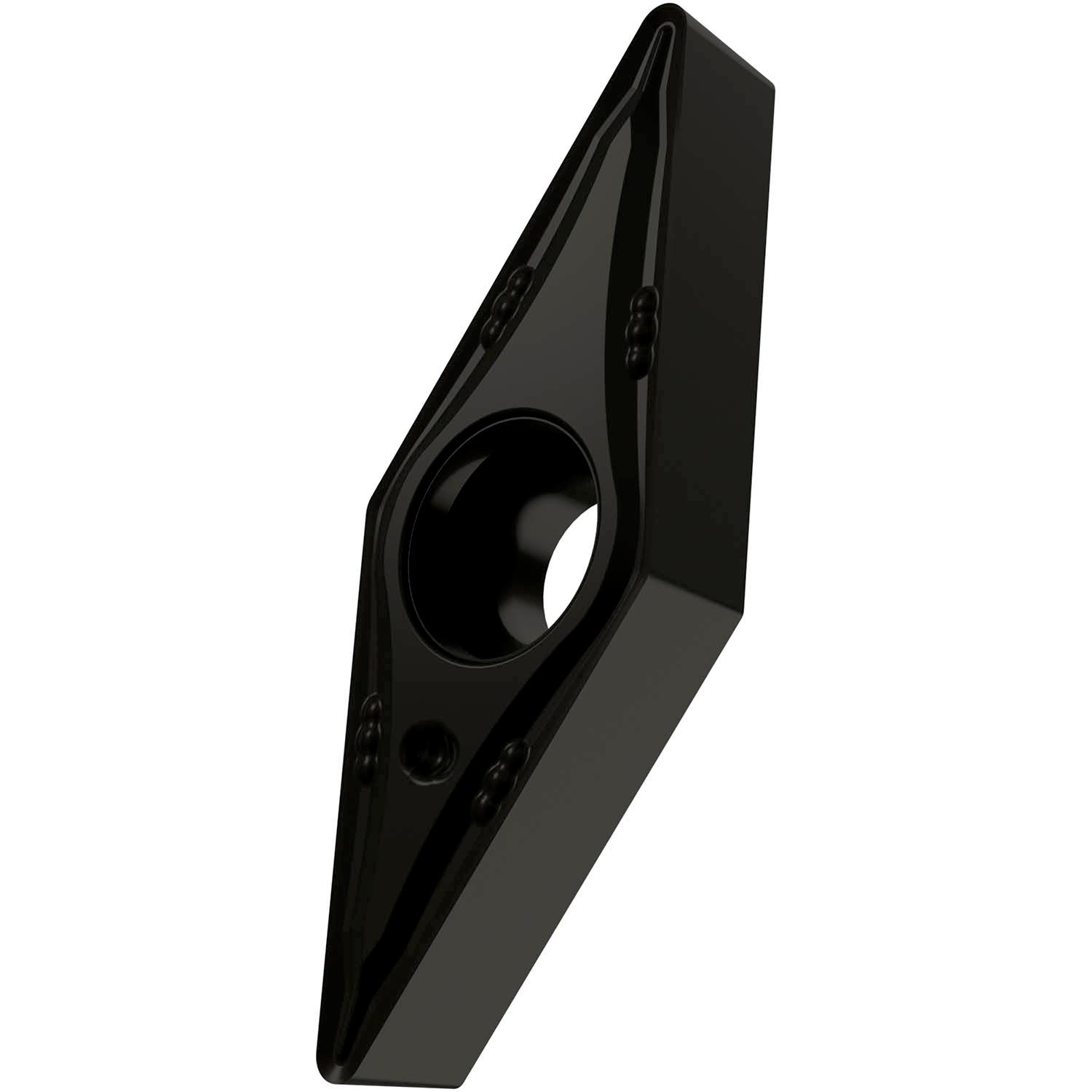

PRAMET VBMT 110308E-FM:T7325 Turning inserts positive

Description: Value
EAN number: 3603603165366
Product number (SAP): 80027962
Ordering code ANSI: VBMT 222-FM:T7325
Gross weight – grams: 2.486
Inscribed circle diameter – millimeter (IC): 6.35 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Cutting edge length – millimeter (L): 11.1 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: T7325
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: B 5°
Insert Design: VBMT
Insert size: 11
Insert Thickness: 03
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FM
Insert shape code (SC): V – rhombic 35° included angle
Tool Design: VB
Insert Geometry: Positive
ISO: VBMT110308E-FM:T7325
