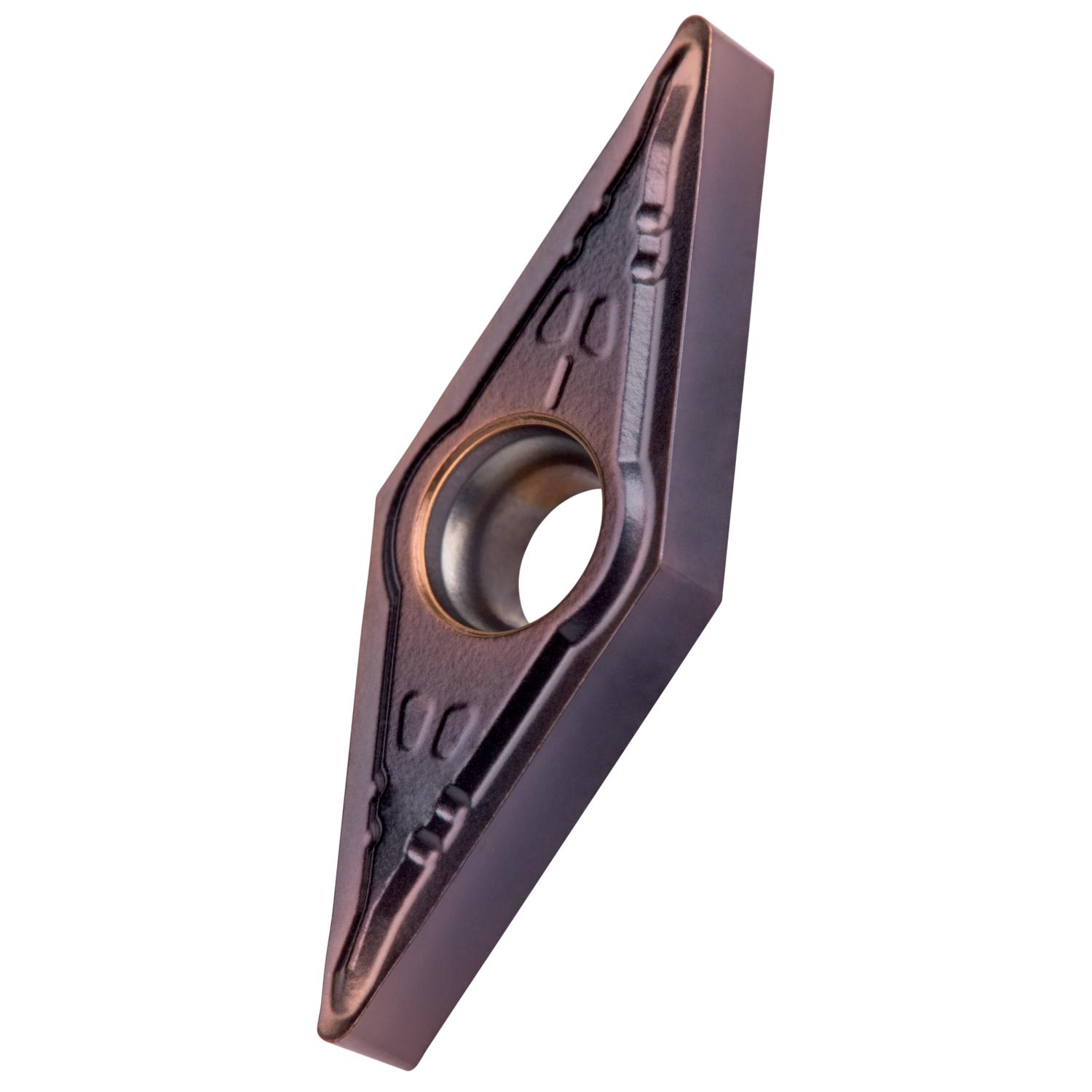

PRAMET VBMT 160404E-UR:T8430 Turning inserts positive

Description

Single-sided positive turning insert, 35° rhomboid with 5° clearance, inscribed circle diameter of 9.525mm, 4.76mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to heavy machining of steels

Additional information

Weight	0.0288 kg
barcode
Additional Information	Description: Value EAN number: 3603603814707 Product number (SAP): 80032928 Ordering code ANSI: VBMT 331-UR:T8430 Gross weight – grams: 11.15 Inscribed circle diameter – millimeter (IC): 9.525 mm Fixing hole diameter – millimeter (D1): 4.4 mm Cutting edge length – millimeter (L): 16.6 mm Insert thickness – millimeter (S): 4.76 mm Grade: T8430 Corner radius – millimeter (RE): 0.4 mm Insert Clearance Code and Angle: B 5° Insert Design: VBMT Insert size: 16 Insert Thickness: 04 Insert Type: T Chipbreaker manufacturer's designation (CBMD): UR Insert shape code (SC): V – rhombic 35° included angle Tool Design: VB Insert Geometry: Positive ISO: VBMT160404E-UR:T8430

Need Technical Advice?

Description

Additional information

Brand

PRAMET
