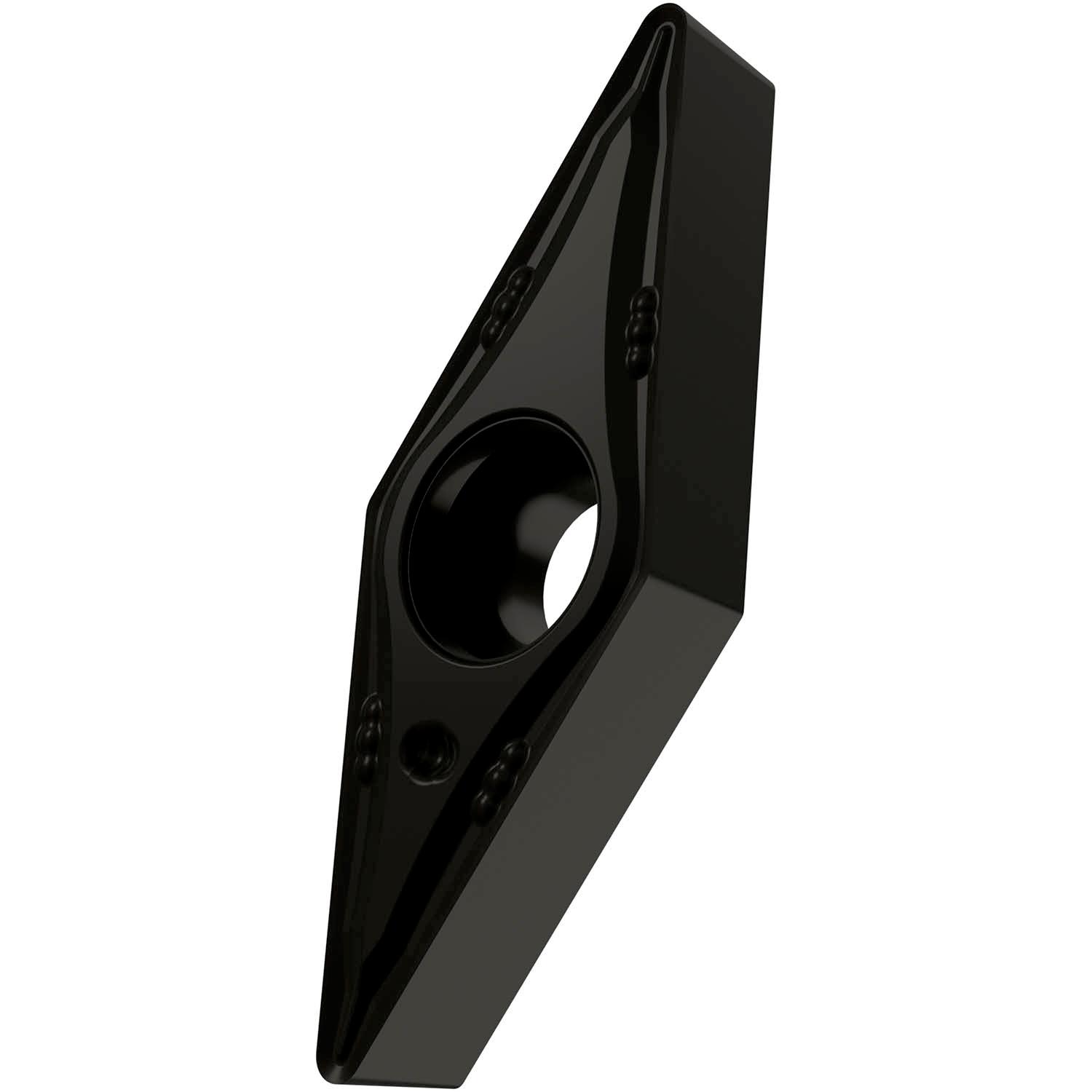

PRAMET VBMT 160408-UF:T9020 Focus Products

Product Code: VBMT 160408-UF:T9020

$18.70$17.00 Ex. GST

Product Code: VBMT 160408-UF:T9020 SKU VBMT 160408-UF:T9020 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided positive turning insert, 35° rhomboid with 5° clearance, inscribed circle diameter of 9.525mm, 4.76mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10 -M25, for fine to medium machining of stainless-steels

Additional information

Weight 0.0082 kg
barcode

3603604146241

Additional Information

Description: Value
EAN number: 3603604146241
Product number (SAP): 80035780
Ordering code ANSI: VBMT 332-UF:T9020
Gross weight – grams: 8.248
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 16.6 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T9020
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: B 5°
Insert Design: VBMT
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): UF
Insert shape code (SC): V – rhombic 35° included angle
Tool Design: VB
Insert Geometry: Positive
ISO: VBMT160408-UF:T9020
