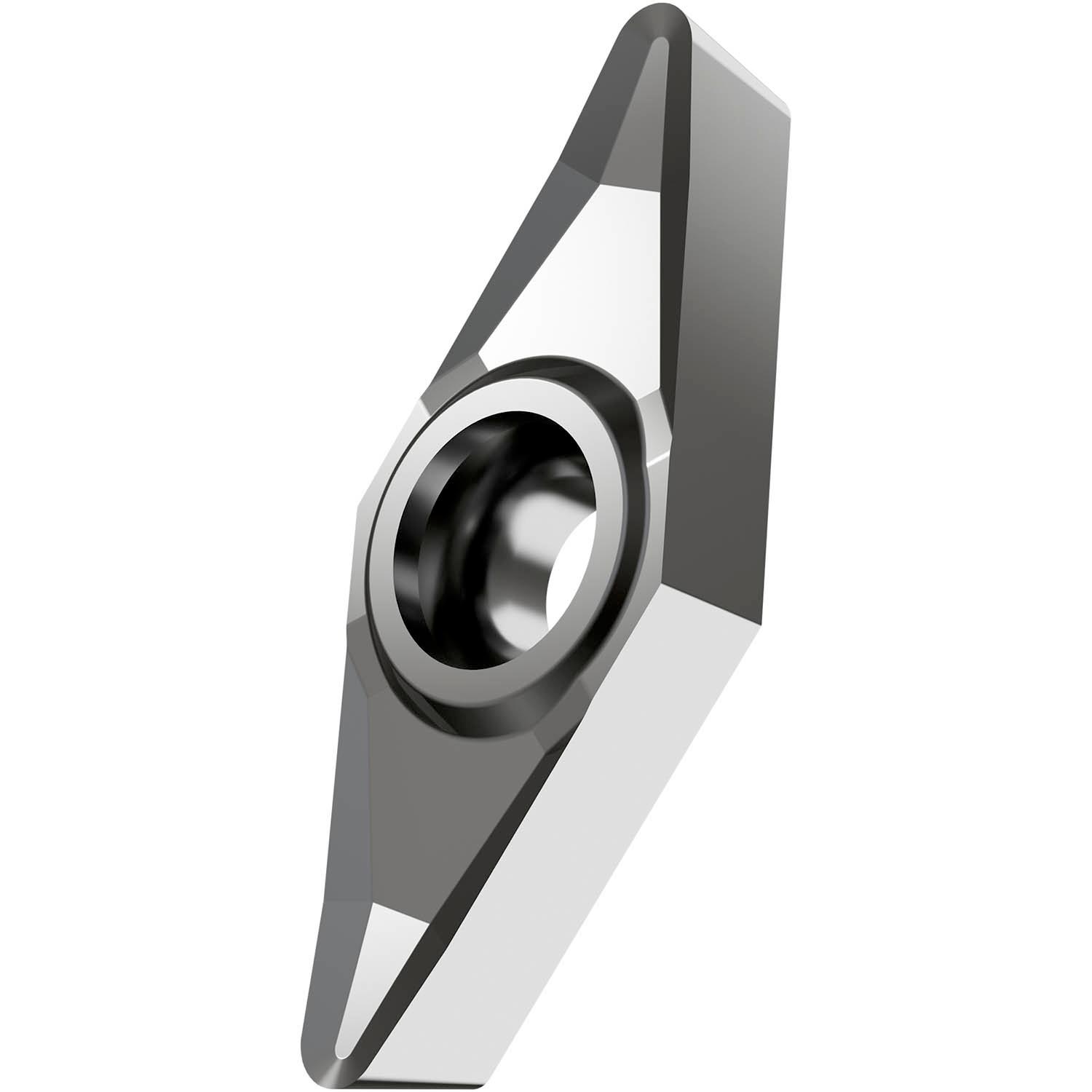

PRAMET VCGT 130304F-AL:T0315 Turning inserts AL

Description: Value
EAN number: 3603602915689
Product number (SAP): 80023553
Ordering code ANSI: VCGT 2.521F-AL:T0315
Gross weight – grams: 4.006
Inscribed circle diameter – millimeter (IC): 7.94 mm
Fixing hole diameter – millimeter (D1): 3.4 mm
Cutting edge length – millimeter (L): 13.8 mm
Insert thickness – millimeter (S): 3.43 mm
Grade: T0315
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: VCGT
Insert size: 13
Insert Thickness: 03
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): AL
Insert shape code (SC): V – rhombic 35° included angle
Tool Design: VC
Insert Geometry: Positive
ISO: VCGT130304F-AL:T0315
