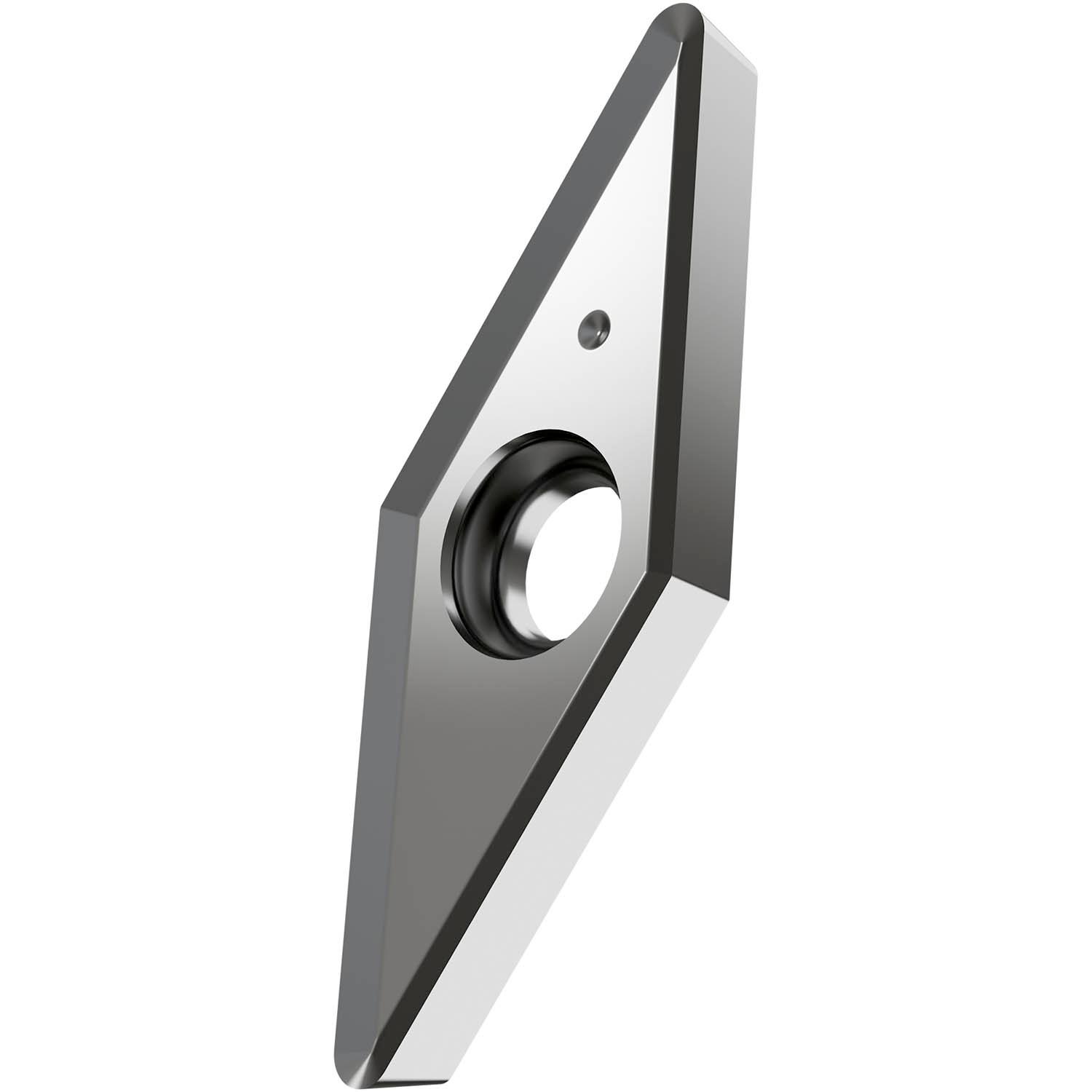

PRAMET VCGT 130308E-SF2:HF7 Turning inserts positive

Description: Value
EAN number: 3603602914668
Product number (SAP): 80023431
Ordering code ANSI: VCGT 2.522-SF2:HF7
Gross weight – grams: 3.602
Inscribed circle diameter – millimeter (IC): 7.94 mm
Fixing hole diameter – millimeter (D1): 3.4 mm
Cutting edge length – millimeter (L): 13.8 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: HF7
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: VCGT
Insert size: 13
Insert Thickness: 03
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): SF2
Insert shape code (SC): V – rhombic 35° included angle
Tool Design: VC
Insert Geometry: Positive
ISO: VCGT130308E-SF2:HF7
