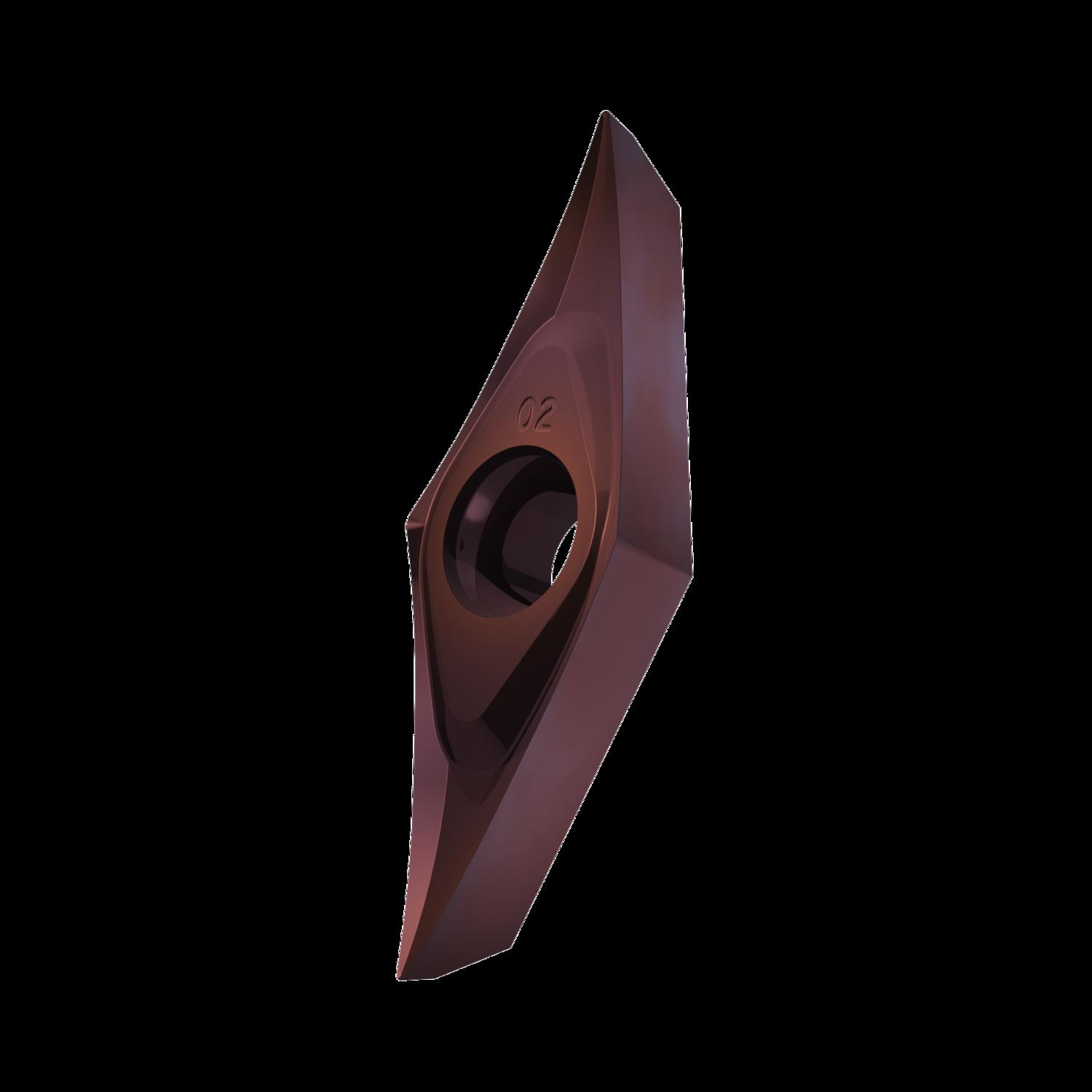

PRAMET VCGT 160404E-SF3:T8415 Turning inserts positive

Description: Value
EAN number: 3603604270069
Product number (SAP): 80036447
Ordering code ANSI: VCGT 331-SF3:T8415
Gross weight – grams: 10.83
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 16.6 mm
Insert thickness – millimeter (S): 5.01 mm
Grade: T8415
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: VCGT
Insert size: 16
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): SF3
Insert shape code (SC): V – rhombic 35° included angle
Tool Design: VC
Insert Geometry: Positive
ISO: VCGT160404E-SF3:T8415
