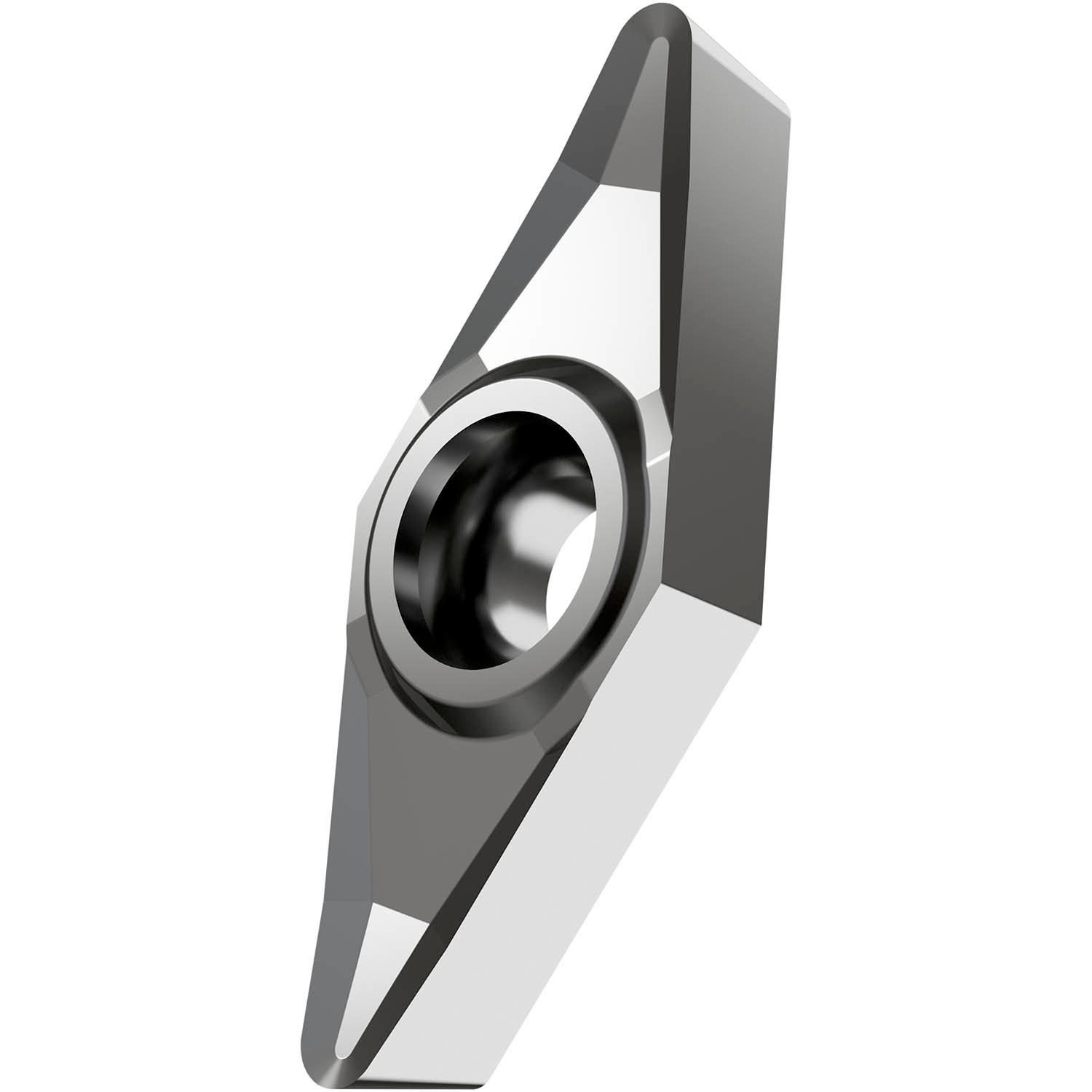

PRAMET VCGT 160412F-AL:T0315 Turning inserts AL

Description: Value
EAN number: 3603602915443
Product number (SAP): 80023528
Ordering code ANSI: VCGT 333F-AL:T0315
Gross weight – grams: 8.696
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 16.6 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T0315
Corner radius – millimeter (RE): 1.2 mm
Insert Clearance Code and Angle: C 7°
Insert Design: VCGT
Insert size: 16
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): AL
Insert shape code (SC): V – rhombic 35° included angle
Tool Design: VC
Insert Geometry: Positive
ISO: VCGT160412F-AL:T0315
