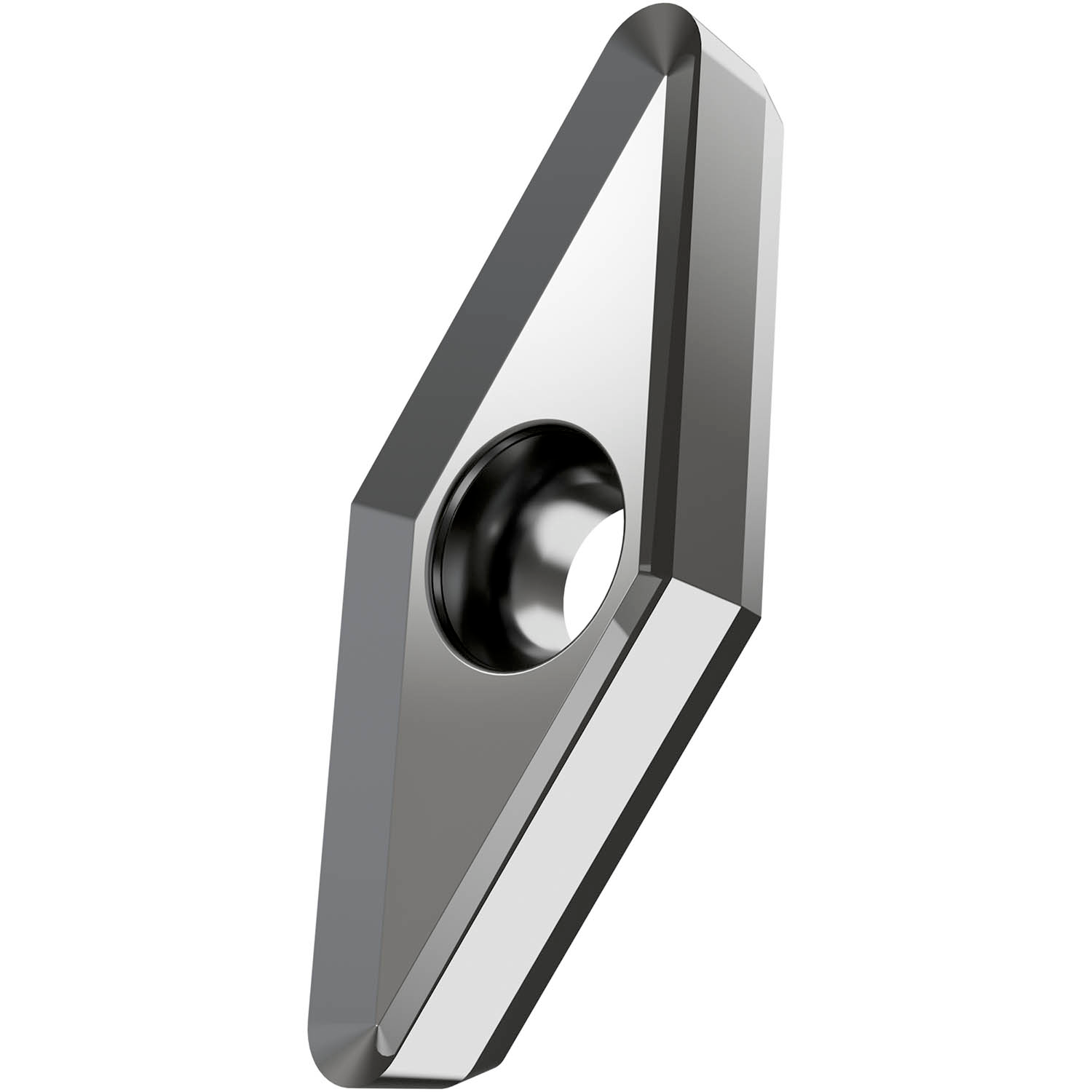

PRAMET VCGT 220515F-FA:HF7 Milling inserts – geometry FA

Product Code: VCGT 220515F-FA:HF7

$43.96$39.96 Ex. GST

Product Code: VCGT 220515F-FA:HF7 SKU VCGT 220515F-FA:HF7 Categories , ,
PRAMET VCGT 220515F-FA:HF7 Milling inserts - geometry FA

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Single-sided milling insert VCGT 2205 with chip-breakers, 35° rhomboid for a maximum depth of cut of 20.0mm, with 1.5mm corner radius, an indexing accuracy according to ISO-tolerance class-G and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10 -N25 for machining of non-ferrous metal with end mills SVC22C

Additional information

Weight 0.0427 kg
barcode
Additional Information

Description: Value
EAN number: 3603602872203 Product number (SAP): 80002912 Ordering code ANSI: VCGT 220515F-FA:HF7 Gross weight: 18.12 grams Inscribed circle diameter (IC): 12.7 mm Fixing hole diameter (D1): 5.2 mm Cutting edge length (L): 22 mm Insert thickness (S): 5.5 mm Grade: HF7 Corner radius (RE): 1.5 mm Insert Clearance Code and Angle: C 7° Insert size: 22 Insert Thickness: 05 Insert Type: T Chipbreaker manufacturer's designation (CBMD): FA Insert shape code (SC): V – rhombic 35° included angle ISO: VCGT220515F-FA:HF7

Brand

PRAMET
