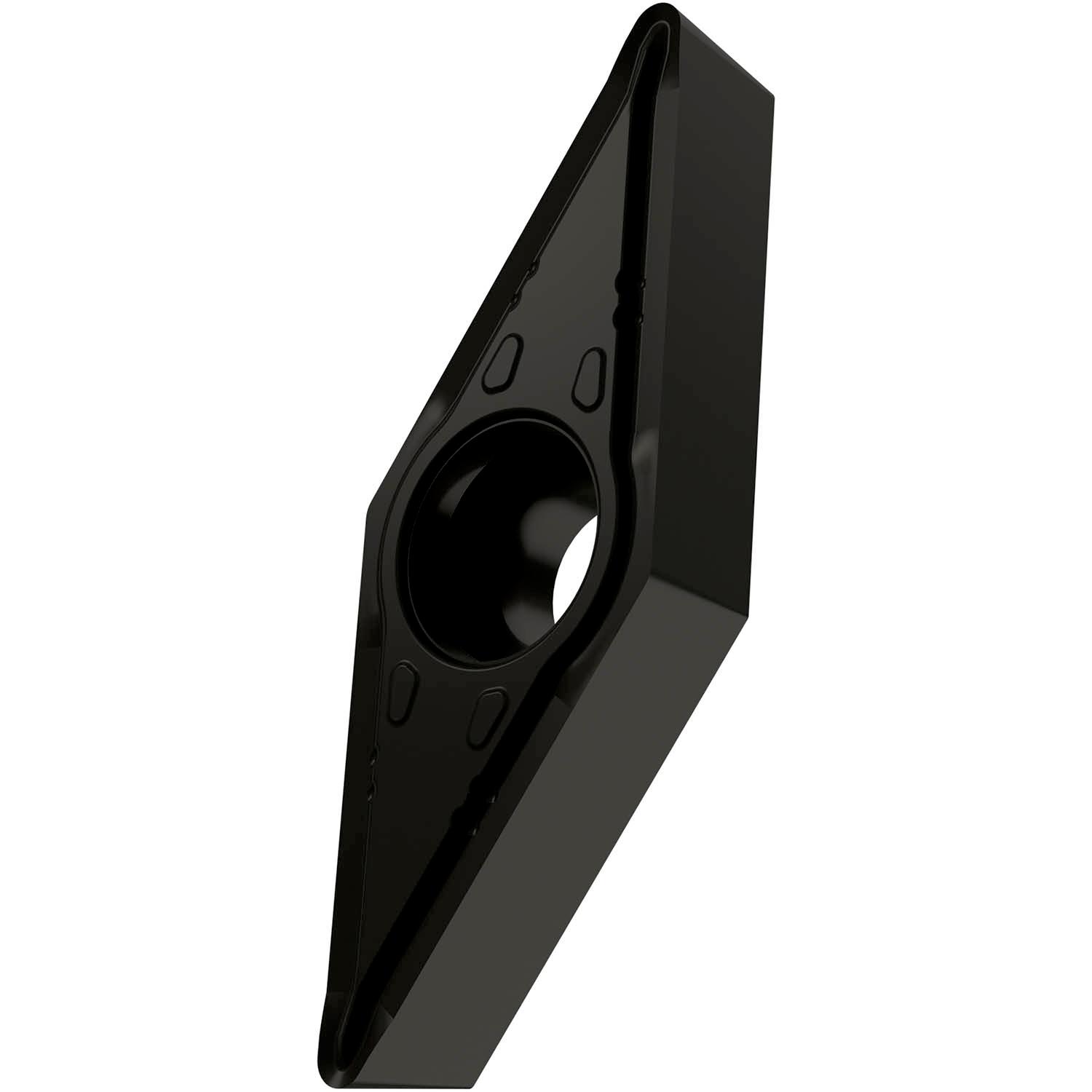

PRAMET VCMT 110304E-UR:T7325 Turning inserts positive

Description: Value
EAN number: 3603603165472
Product number (SAP): 80027973
Ordering code ANSI: VCMT 221-UR:T7325
Gross weight – grams: 2.408
Inscribed circle diameter – millimeter (IC): 6.35 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Cutting edge length – millimeter (L): 11.1 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: T7325
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: VCMT
Insert size: 11
Insert Thickness: 03
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): UR
Insert shape code (SC): V – rhombic 35° included angle
Tool Design: VC
Insert Geometry: Positive
ISO: VCMT110304E-UR:T7325
