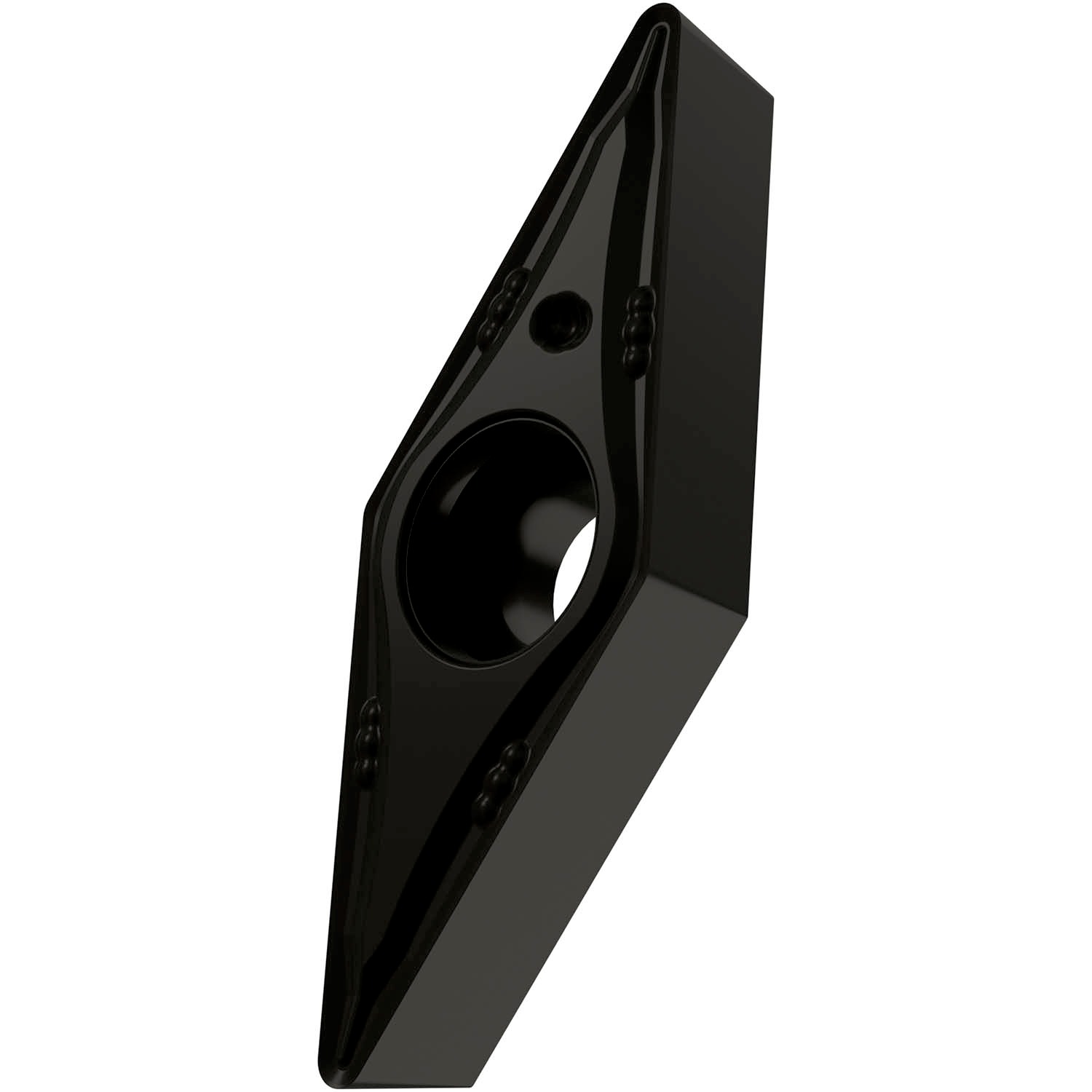

PRAMET VCMT 160408E-FM:T7325 Turning inserts positive

Description: Value
EAN number: 3603603165519
Product number (SAP): 80027977
Ordering code ANSI: VCMT 332-FM:T7325
Gross weight – grams: 7.908
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 16.6 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T7325
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: VCMT
Insert size: 16
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FM
Insert shape code (SC): V – rhombic 35° included angle
Tool Design: VC
Insert Geometry: Positive
ISO: VCMT160408E-FM:T7325
