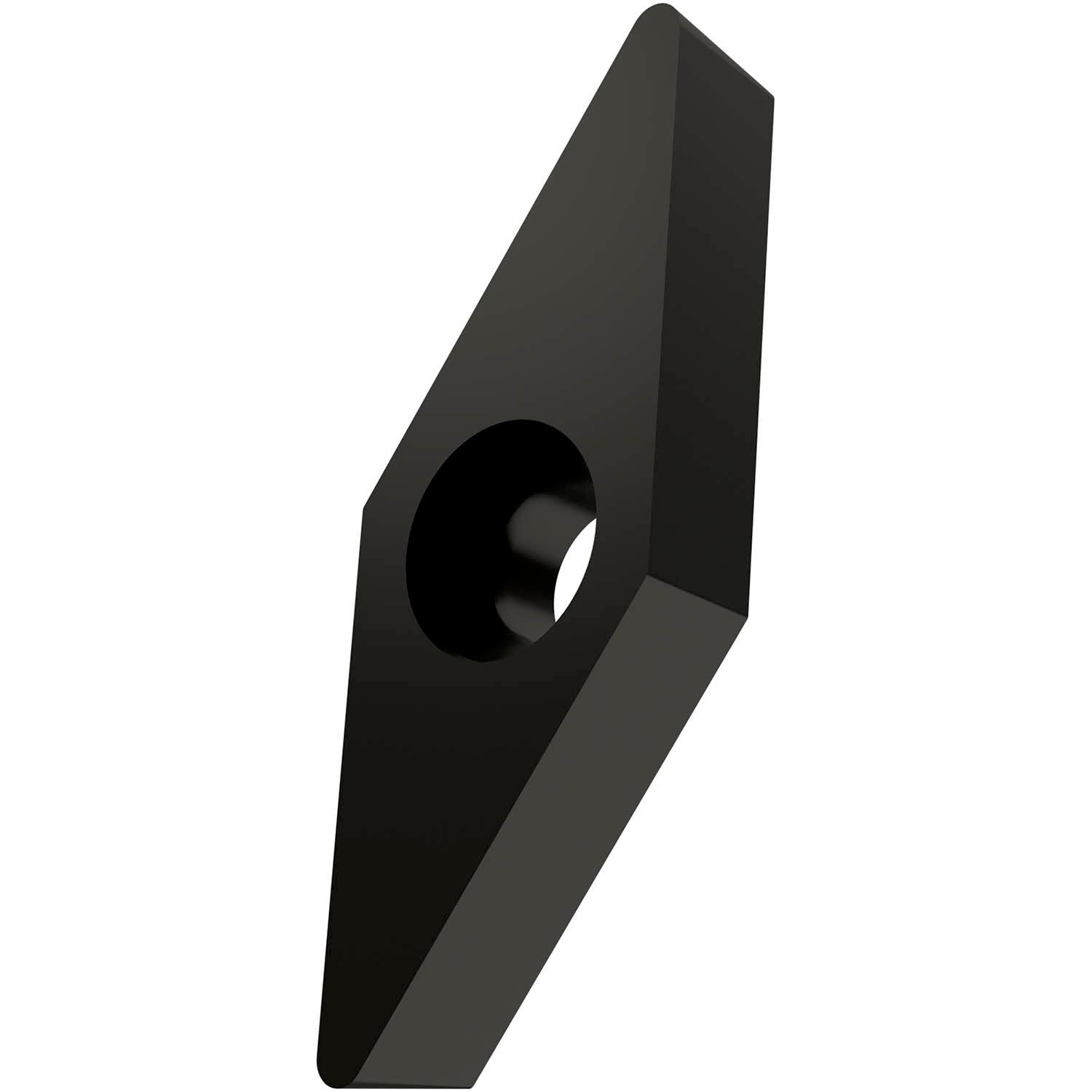

PRAMET VCMW 110302:T5305 Turning inserts positive

Description: Value
EAN number: 3603602912688
Product number (SAP): 80023106
Ordering code ANSI: VCMW 220.5:T5305
Gross weight – grams: 2.586
Inscribed circle diameter – millimeter (IC): 6.35 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Cutting edge length – millimeter (L): 11.1 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: T5305
Corner radius – millimeter (RE): 0.2 mm
Insert Clearance Code and Angle: C 7°
Insert Design: VCMW
Insert size: 11
Insert Thickness: 03
Insert Type: W
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): V – rhombic 35° included angle
Tool Design: VC
Insert Geometry: Positive
ISO: VCMW110302:T5305
