PRAMET VCMW 110304:T8415 Turning inserts positive

Product Code: VCMW 110304:T8415

$28.09$25.54 Ex. GST

Product Code: VCMW 110304:T8415 SKU VCMW 110304:T8415 Categories CUTTING TOOLS (HSS & Carbide), Turning

PRAMET VCMW 110304:T8415 Turning inserts positive

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

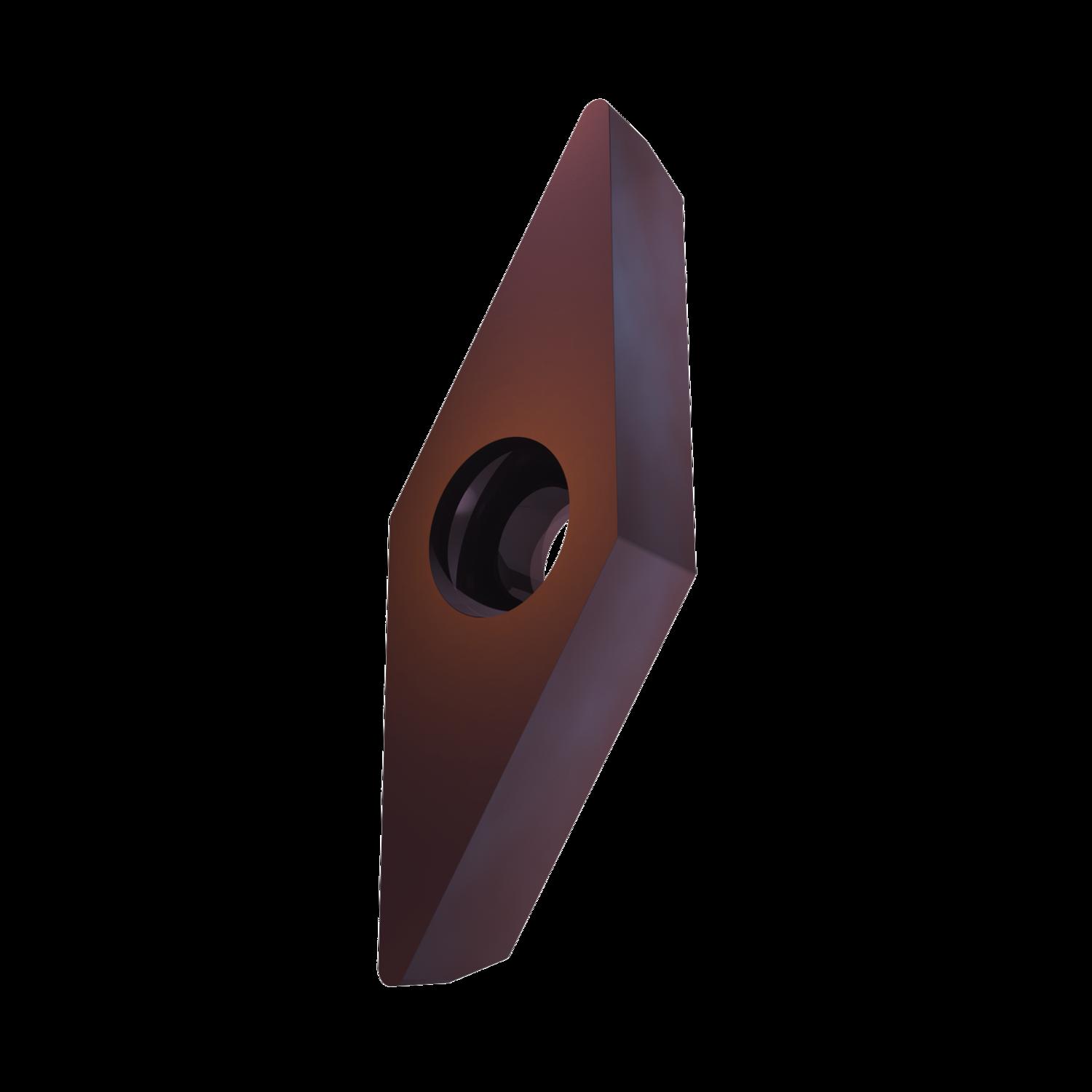

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 3.18mm thick, 0.4mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T8415

Additional information

Weight	0.0025 kg
barcode	3603604270137
Additional Information	Description: Value EAN number: 3603604270137 Product number (SAP): 80036454 Ordering code ANSI: VCMW 221:T8415 Gross weight – grams: 3.66 Inscribed circle diameter – millimeter (IC): 6.35 mm Fixing hole diameter – millimeter (D1): 2.8 mm Cutting edge length – millimeter (L): 11.1 mm Insert thickness – millimeter (S): 3.18 mm Grade: T8415 Corner radius – millimeter (RE): 0.4 mm Insert Clearance Code and Angle: C 7° Insert Design: VCMW Insert size: 11 Insert Type: W Chipbreaker manufacturer's designation (CBMD): No chipbreaker Insert shape code (SC): V – rhombic 35° included angle Tool Design: VC Insert Geometry: Positive ISO: VCMW110304:T8415
