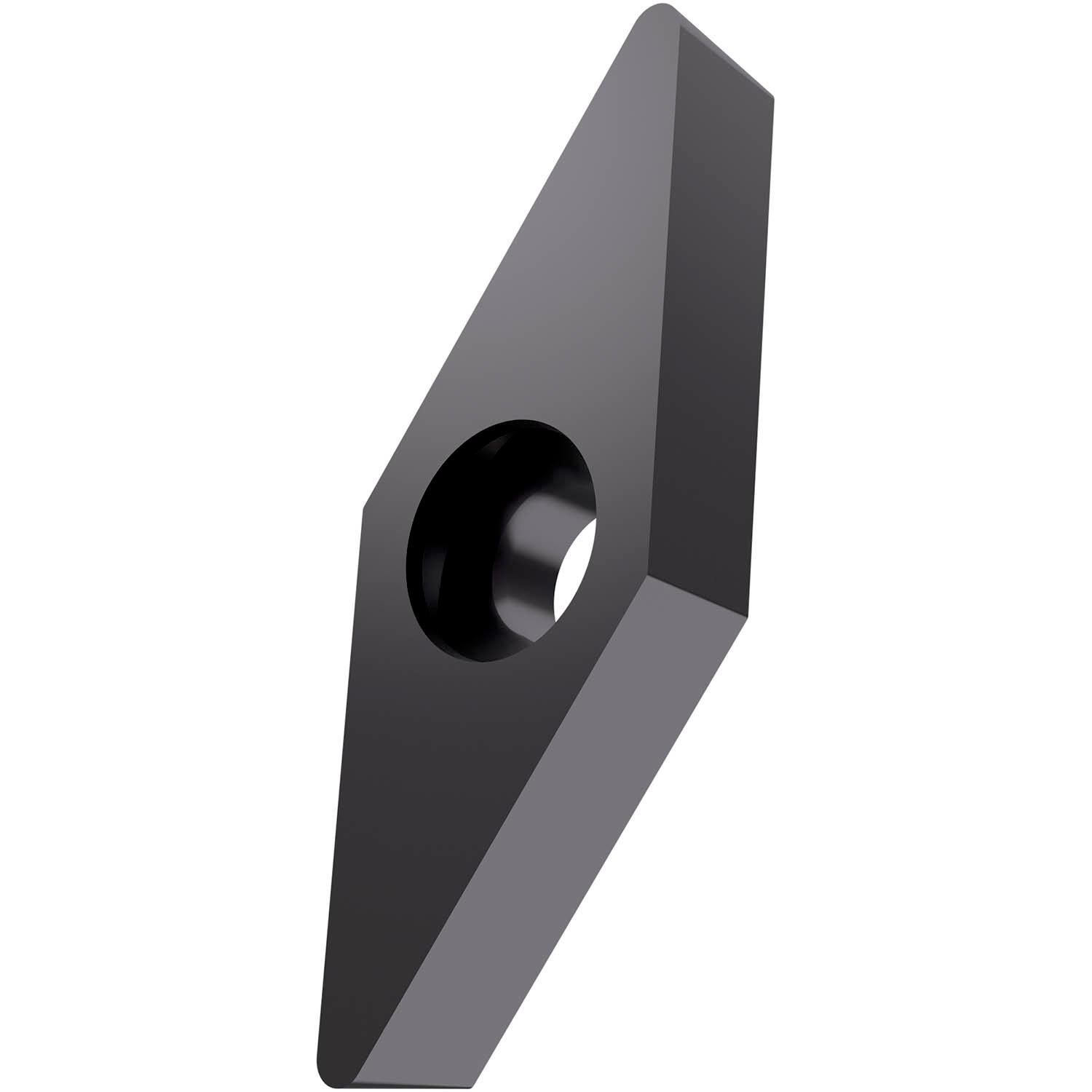

PRAMET VCMW 160408:T6310 Turning inserts positive

Description: Value
EAN number: 3603603172302
Product number (SAP): 80028469
Ordering code ANSI: VCMW 332:T6310
Gross weight – grams: 8.521
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 16.6 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T6310
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: VCMW
Insert size: 16
Insert Thickness: 04
Insert Type: W
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): V – rhombic 35° included angle
Tool Design: VC
Insert Geometry: Positive
ISO: VCMW160408:T6310
