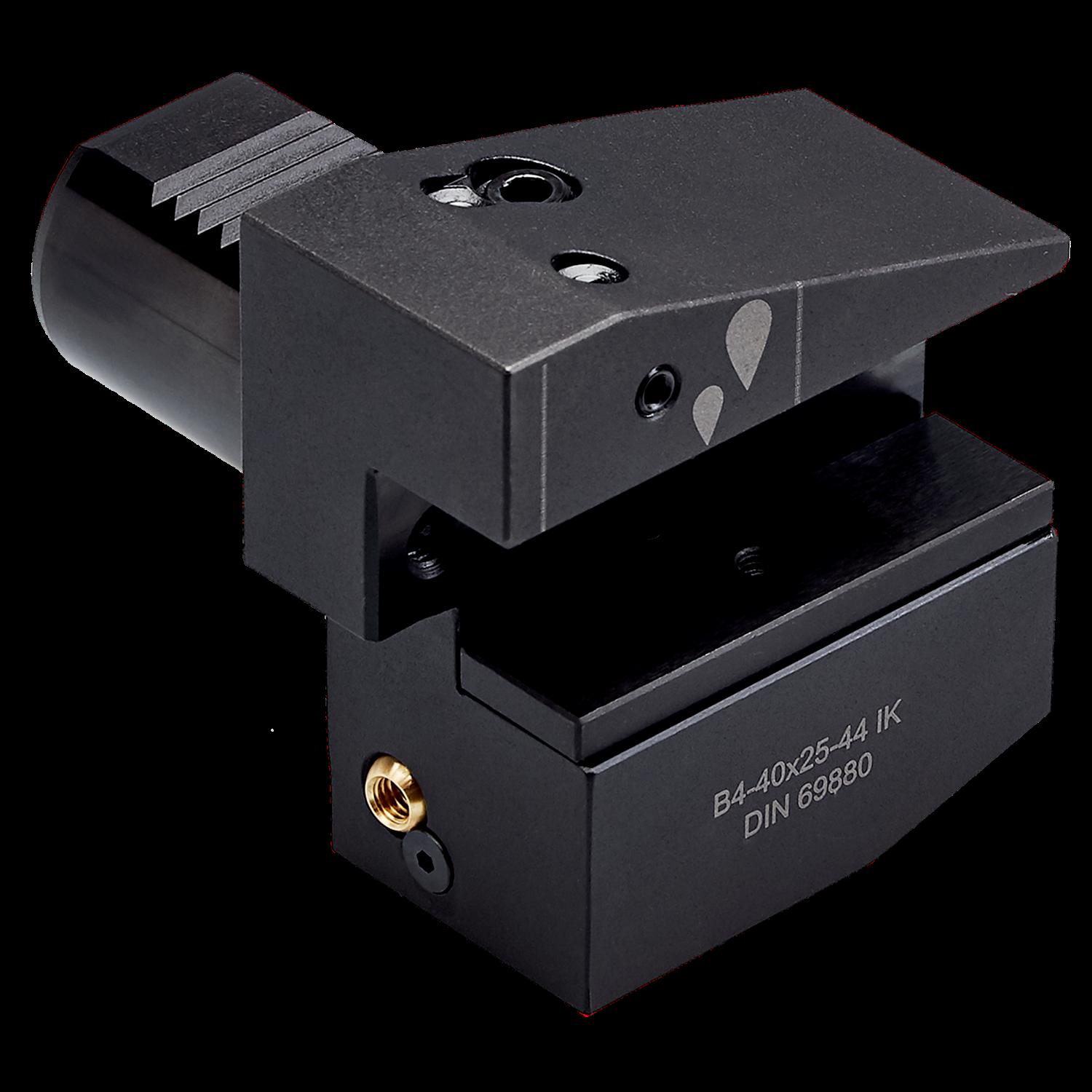

PRAMET VDI.30-B4.20.40.C Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604032797
Product number (SAP): 86042495
Size: 30
ISO: VDI.30-B4.20.40.C
Ordering code ANSI: VDI.30-B4.20.40.C
Net weight – grams: 1400
Gross weight – grams: 1400
Connection diameter – millimeter (DCON MS): 30 mm
Connection diameter workpiece side – millimeter (DCON WS): 20 mm
Connection size Value (CSIZE): B4 – 30 × 20 × 40
Functional height – millimeter (HF): 20 mm
Functional length – millimeter (LF): 22 mm
Overall height – millimeter (OAH): 73 mm
Overall width – millimeters (OAW): 70 mm
Protruding length – millimeter (LPR): 40 mm
